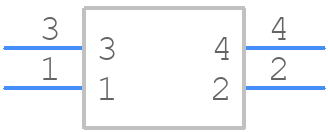

Part Symbol
-

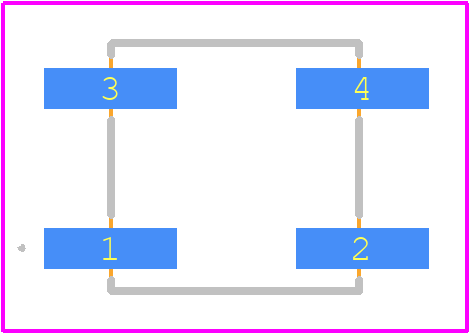

Footprint
-

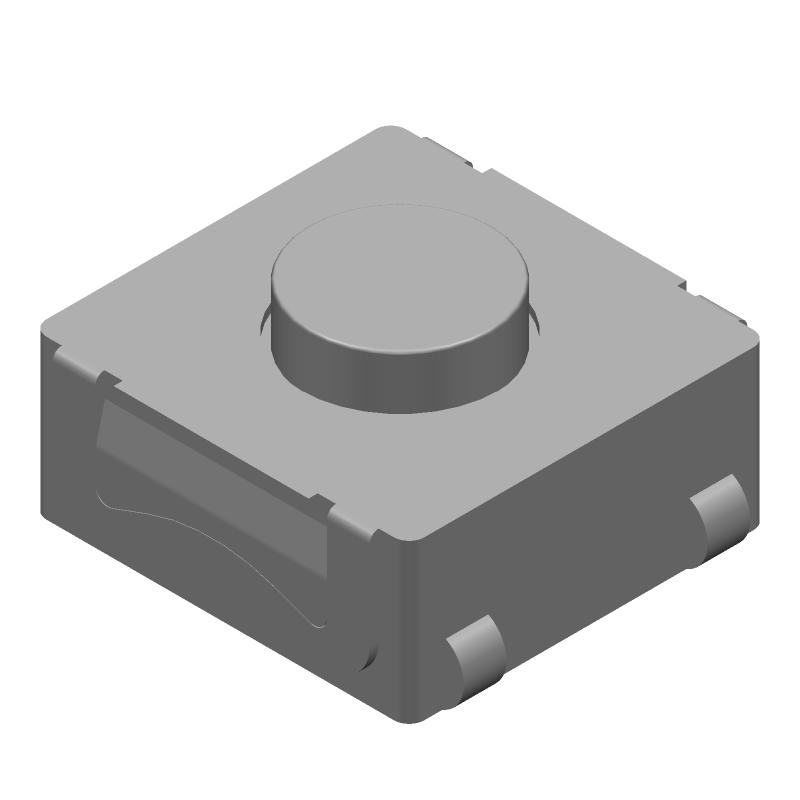

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TL3304AF260QJ by E-Switch Inc
Results Overview of TL3304AF260QJ by E-Switch Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Industrial Automation
Aerospace and Defense
Agriculture Technology
Motor control systems
Robotics and Drones
TL3304AF260QJ Information
TL3304AF260QJ by E-Switch Inc is a Keypad Switch.
Keypad Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for TL3304AF260QJ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
74853035
|
RS | Tactile Switch, SPST-NO, OFF-(ON), 50 mA, 12V DC, J-Lead, TL3304 Series Min Qty: 8000 Package Multiple: 1 Lead time: 15 Weeks, 0 Days Container: Bulk | 0 |
|
$0.4300 | RFQ |
|
|
Bristol Electronics | 550 |
|
RFQ | ||
|
DISTI #
TL3304AF260QJ
|
TME | Microswitch TACT Min Qty: 8000 | 0 |
|
$0.4800 | RFQ |
Part Details for TL3304AF260QJ
TL3304AF260QJ CAD Models
TL3304AF260QJ Part Data Attributes
|
|
TL3304AF260QJ
E-Switch Inc
Buy Now
Datasheet
|
Compare Parts:
TL3304AF260QJ
E-Switch Inc
SWITCH TACT 260GF H=3.4MM SMT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | E-SWITCH INC | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | E-Switch | |
| Actuator Travel | 0.25 mm | |
| Body Breadth | 6.2 mm | |
| Body Height | 2.5 mm | |
| Body Length or Diameter | 6.2 mm | |
| Center Contact Material | SILVER | |
| Circuit Configuration | 1X1 | |
| Contact Current(DC)-Max | 0.05 A | |
| Contact (DC) Max Rating R Load | 0.05A@12VDC | |
| Contact Resistance | 0.1 mΩ | |
| Contact Voltage(DC)-Max | 12 V | |
| Electrical Life | 100000 Cycle(s) | |
| End Contact Material | SILVER | |
| Mounting Feature | SURFACE MOUNT-STRAIGHT | |
| Number of Switches | 1 | |
| Operating Force-Max | 3.04 N | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -20 °C | |
| Packing Method | TR | |
| Surface Mount | NO | |
| Switch Action | MOMENTARY | |
| Switch Function | SPST | |
| Switch Type | KEYPAD SWITCH | |
| Termination Type | SOLDER |
TL3304AF260QJ Frequently Asked Questions (FAQ)
-
The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3 seconds. It's essential to follow the recommended soldering profile to prevent damage to the switch.
-
The TL3304AF260QJ is designed to withstand vibrations up to 10G (10 Hz to 2 kHz). However, it's recommended to perform additional testing and validation for specific high-vibration applications.
-
The TL3304AF260QJ is rated for indoor use only. For outdoor or harsh environmental applications, consider using a switch with a higher IP rating or additional environmental protection.
-
Use a soft, dry brush to remove any debris or contaminants. Avoid using chemicals, solvents, or liquids, as they may damage the switch's electrical contacts or compromise its performance.
-
Yes, ensure a minimum clearance of 0.5 mm between the switch and any adjacent components to prevent electrical interference. Also, follow the recommended PCB footprint and pad layout to ensure reliable operation.
