Converters / Analog to Digital Converters / TLC5510INSR
Datasheets
TLC5510INSR by: Texas Instruments

8-bit, 20-MSPS analog-to-digital converter (ADC) with 2-Vpp input 24-SOP -20 to 75

Part Details for TLC5510INSR by Texas Instruments

Results Overview of TLC5510INSR by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Computing and Data Storage

TLC5510INSR Information

TLC5510INSR by Texas Instruments is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.

A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
TLC5510INSR Texas Instruments 8-Bit, 20-MSPS Analog-to-Digital Converter (ADC) 24-SO -20 to 75

Price & Stock for TLC5510INSR

Part # Distributor Description Stock Price Buy
Bristol Electronics   1000
RFQ
Rochester Electronics TLC5510 8-bit, 20-MSPS analog-to-digital converter (ADC) with 2-Vpp input RoHS: Compliant Status: Active Min Qty: 1 20
  • 1 $4.7500
  • 25 $4.6600
  • 100 $4.4700
  • 500 $4.2800
  • 1,000 $4.0400
$4.0400 / $4.7500 Buy Now

Part Details for TLC5510INSR

TLC5510INSR CAD Models

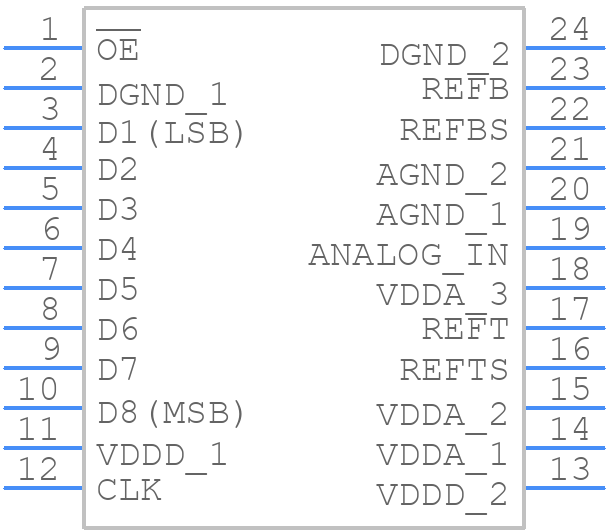

  • Part Symbol

    Part Symbol

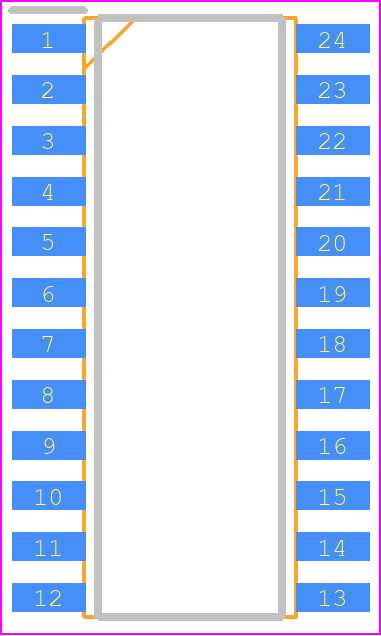

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TLC5510INSR Part Data Attributes

Parametric Data
TLC5510INSR Texas Instruments
Buy Now Datasheet
Compare Parts:
TLC5510INSR Texas Instruments 8-bit, 20-MSPS analog-to-digital converter (ADC) with 2-Vpp input 24-SOP -20 to 75
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code SOIC
Package Description SOP-24
Pin Count 24
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Texas Instruments
Additional Feature Peak-to-peak input voltage range(V) : 2
Analog Input Voltage-Max 2 V
Analog Input Voltage-Min -2 V
Converter Type ADC, FLASH METHOD
JESD-30 Code R-PDSO-G24
JESD-609 Code e4
Length 15 mm
Linearity Error-Max (EL) 0.3906%
Moisture Sensitivity Level 1
Number of Analog In Channels 1
Number of Bits 8
Number of Functions 1
Number of Terminals 24
Operating Temperature-Max 75 °C
Operating Temperature-Min -20 °C
Output Bit Code BINARY
Output Format PARALLEL, 8 BITS
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP24,.3
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Sample Rate 20 MHz
Sample and Hold / Track and Hold SAMPLE
Seated Height-Max 2 mm
Supply Current-Max 27 mA
Supply Voltage-Nom 5 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL EXTENDED
Terminal Finish NICKEL PALLADIUM GOLD
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 5.3 mm

Alternate Parts for TLC5510INSR

This table gives cross-reference parts and alternative options found for TLC5510INSR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TLC5510INSR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
TLC5510INSRG4 Texas Instruments Check for Price 1-CH 8-BIT FLASH METHOD ADC, PARALLEL ACCESS, PDSO24, GREEN, PLASTIC, SOP-24 TLC5510INSR vs TLC5510INSRG4
TLC5510INSLE Texas Instruments Check for Price 8-Bit, 20 MSPS ADC Single Ch., Internal S&H, Low Power 24-SO -20 to 75 TLC5510INSR vs TLC5510INSLE
Part Number Manufacturer Composite Price Description Compare
TLC5510INSG4 Texas Instruments Check for Price 8-Bit, 20 MSPS ADC Single Ch., Internal S&H, Low Power 24-SO -20 to 75 TLC5510INSR vs TLC5510INSG4
TLC5510INS Texas Instruments $4.1171 8-bit, 20-MSPS analog-to-digital converter (ADC) with 2-Vpp input 24-SOP -20 to 75 TLC5510INSR vs TLC5510INS
CXD1175M Sony Semiconductor Check for Price ADC, Proprietary Method, 8-Bit, 1 Func, 1 Channel, Parallel, 8 Bits Access, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOP-24 TLC5510INSR vs CXD1175M
TLC5510IPWR Texas Instruments Check for Price 8-bit, 20-MSPS analog-to-digital converter (ADC) with 2-Vpp input 24-TSSOP -20 to 75 TLC5510INSR vs TLC5510IPWR
TMC1175AM7C20 Raytheon Semiconductor Check for Price ADC, Flash Method, 8-Bit, 1 Func, 1 Channel, Parallel, 8 Bits Access, CMOS, PDSO24, TLC5510INSR vs TMC1175AM7C20
ADC1175-50CIMTX National Semiconductor Corporation Check for Price IC 1-CH 8-BIT RESISTANCE LADDER ADC, PARALLEL ACCESS, PDSO24, TSSOP-24, Analog to Digital Converter TLC5510INSR vs ADC1175-50CIMTX
TLC5510AINSG4 Texas Instruments Check for Price 8-Bit, 20 MSPS ADC Single Ch., Internal S&H, Low Power 24-SO -20 to 75 TLC5510INSR vs TLC5510AINSG4
CXD1175AM Intersil Corporation Check for Price 1-CH 8-BIT FLASH METHOD ADC, PARALLEL ACCESS, PDSO24 TLC5510INSR vs CXD1175AM
ADC1175-50CIJM/NOPB Texas Instruments Check for Price 1-CH 8-BIT RESISTANCE LADDER ADC, PARALLEL ACCESS, PDSO24, SOIC-24 TLC5510INSR vs ADC1175-50CIJM/NOPB
CXD1175AM Harris Semiconductor Check for Price ADC, Flash Method, 8-Bit, 1 Func, 1 Channel, Parallel, 8 Bits Access, CMOS, PDSO24 TLC5510INSR vs CXD1175AM

TLC5510INSR Related Parts

TLC5510INSR Frequently Asked Questions (FAQ)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a star-ground configuration, and keep the input and output traces short and away from each other. Additionally, use a 0.1uF decoupling capacitor between VCC and GND, and a 10uF capacitor between VREF and GND.

  • The TLC5510INSR is specified to operate from -40°C to 125°C. Ensure good airflow around the device, avoid overheating, and use a heat sink if necessary. Monitor the device's junction temperature (TJ) and ensure it stays within the specified range.

  • The recommended power-up sequence is to apply VCC first, followed by VREF, and then the input signal. This ensures that the internal voltage references are stable before the input signal is applied.

  • During power-down or reset, the TLC5510INSR's output may float or go to an undefined state. To avoid this, use a pull-down or pull-up resistor on the output pin to ensure a defined state, or use an external buffer or switch to control the output.

  • The TLC5510INSR can drive a maximum capacitive load of 100pF. Exceeding this limit may cause instability or oscillations. Use a buffer or amplifier if a higher capacitive load is required.
