Optocoupler - Transistor Output, 1 CHANNEL DARLINGTON OUTPUT OPTOCOUPLER, PLASTIC, 11-5B2, DIP-4

Part Details for TLP627 by Toshiba America Electronic Components

Results Overview of TLP627 by Toshiba America Electronic Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems Renewable Energy

TLP627 Information

TLP627 by Toshiba America Electronic Components is an Optocoupler.
Optocoupler are under the broader part category of Optoelectronics.

Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.

Price & Stock for TLP627

Part # Distributor Description Stock Price Buy
Bristol Electronics   863
RFQ
Bristol Electronics   442
RFQ
ComSIT USA Electronic Component RoHS: Not Compliant Stock DE - 0
Stock ES - 2035
Stock US - 0
Stock MX - 0
Stock CN - 0
Stock HK - 0
RFQ
Chip 1 Exchange INSTOCK 785
RFQ
Win Source Electronics OPTOISOLTR 5KV DARLINGTON 4-SMD 231000
  • 180 $0.2830
  • 435 $0.2320
  • 670 $0.2250
  • 920 $0.2180
  • 1,185 $0.2110
  • 1,590 $0.1890
$0.1890 / $0.2830 Buy Now

Part Details for TLP627

TLP627 CAD Models

There are no models available for this part yet.

Sign in to request this CAD model.

Register or Sign In

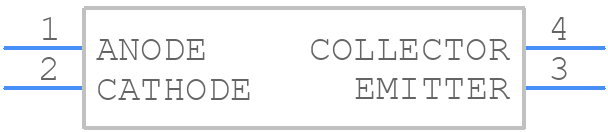

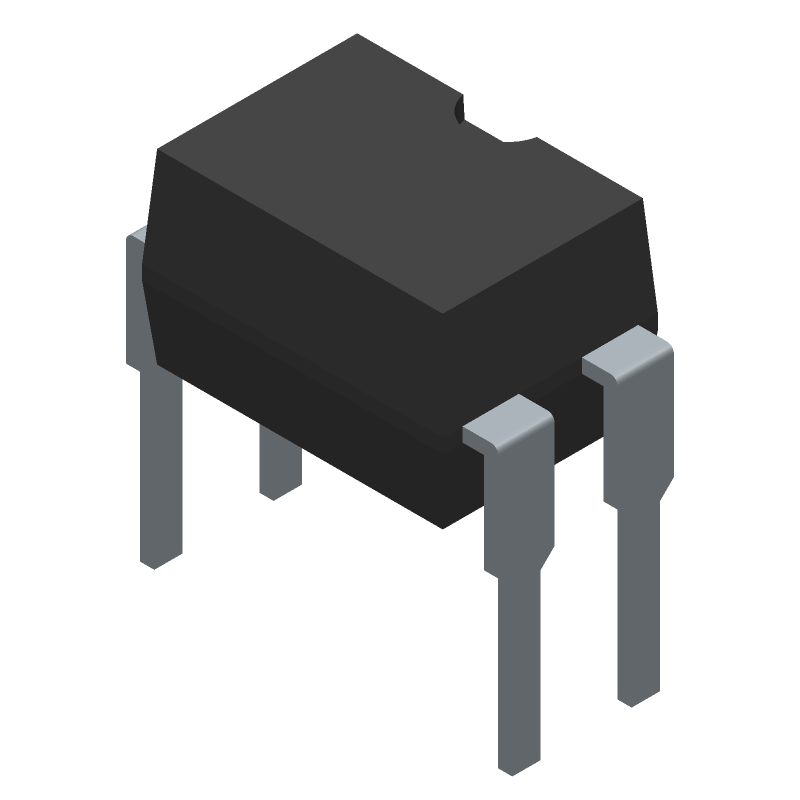

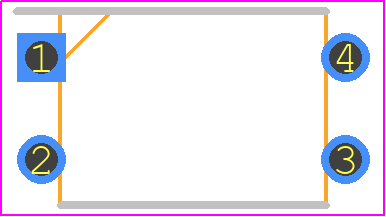

TLP627 Part Data Attributes

TLP627 Toshiba America Electronic Components
Buy Now Datasheet
Compare Parts:
TLP627 Toshiba America Electronic Components Optocoupler - Transistor Output, 1 CHANNEL DARLINGTON OUTPUT OPTOCOUPLER, PLASTIC, 11-5B2, DIP-4
Part Life Cycle Code End Of Life
Ihs Manufacturer TOSHIBA CORP
Package Description DIP-4
Reach Compliance Code unknown
HTS Code 8541.40.80.00
Date Of Intro 1991-04-23
Samacsys Manufacturer Toshiba
Additional Feature UL RECOGNIZED
Coll-Emtr Bkdn Voltage-Min 300 V
Configuration DARLINGTON WITH BUILT-IN DIODE AND RESISTOR
Current Transfer Ratio-Min 1000%
Current Transfer Ratio-Nom 4000%
Dark Current-Max 200 nA
Forward Current-Max 0.025 A
Forward Voltage-Max 1.3 V
Isolation Voltage-Max 5000 V
Mounting Feature THROUGH HOLE MOUNT
Number of Elements 1
On-State Current-Max 0.15 A
Operating Temperature-Max 85 °C
Operating Temperature-Min -25 °C
Optoelectronic Device Type DARLINGTON OUTPUT OPTOCOUPLER
Power Dissipation-Max 0.15 W
Surface Mount NO
