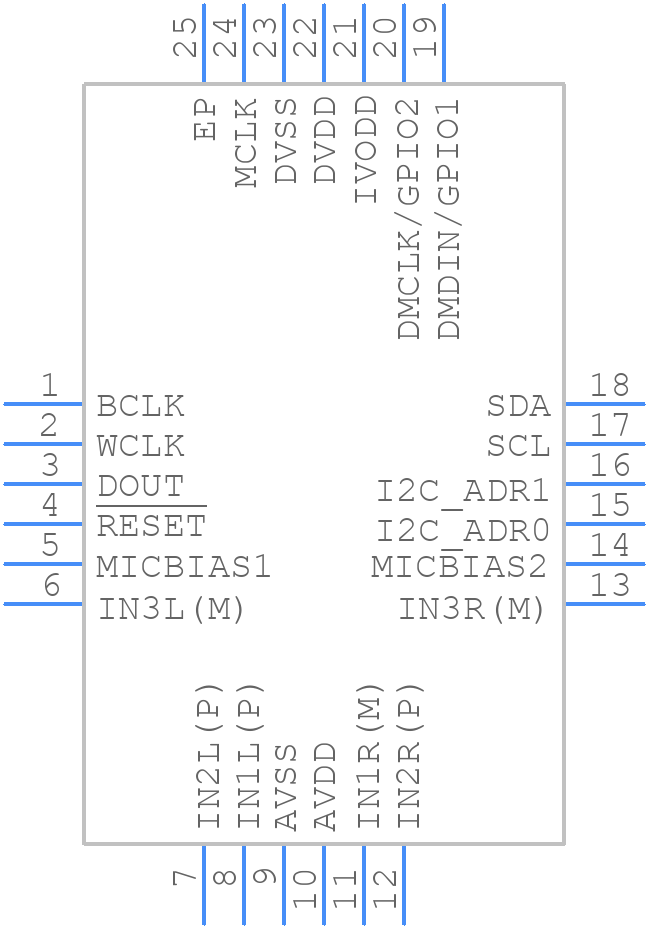

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TLV320ADC3101IRGER by Texas Instruments
Results Overview of TLV320ADC3101IRGER by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Industrial Automation
Audio and Video Systems
Price & Stock for TLV320ADC3101IRGER
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 3126 |
|
RFQ | ||
|
|
Bristol Electronics | 1911 |
|
RFQ | ||
|
|
Rochester Electronics | TLV320ADC3101 92-dB SNR low-power stereo ADC with digital microphone support and miniDSP RoHS: Compliant Status: Active Min Qty: 1 | 239 |
|
$1.0100 / $1.1900 | Buy Now |
|
|
Win Source Electronics | IC STEREO ADC LPWR 24BIT 24VQFN | 101500 |
|
$1.1466 / $1.7199 | Buy Now |
Part Details for TLV320ADC3101IRGER
TLV320ADC3101IRGER CAD Models
TLV320ADC3101IRGER Part Data Attributes
|
|
TLV320ADC3101IRGER
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TLV320ADC3101IRGER
Texas Instruments
92-dB SNR low-power stereo ADC with digital microphone support and miniDSP 24-VQFN -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | QFN | |
| Package Description | VQFN-24 | |
| Pin Count | 24 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | IT ALSO REQUIRES 1.65V TO 1.95V DIGITAL SUPPLY | |
| Consumer IC Type | CONSUMER CIRCUIT | |
| JESD-30 Code | S-PQCC-N24 | |
| JESD-609 Code | e4 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Functions | 1 | |
| Number of Terminals | 24 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVQCCN | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1 mm | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 2.6 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
Alternate Parts for TLV320ADC3101IRGER
This table gives cross-reference parts and alternative options found for TLV320ADC3101IRGER. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TLV320ADC3101IRGER, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TLV320ADC3101IRGET | Texas Instruments | $1.9792 | 92-dB SNR low-power stereo ADC with digital microphone support and miniDSP 24-VQFN -40 to 85 | TLV320ADC3101IRGER vs TLV320ADC3101IRGET |
