TLV71209DBVR by: Texas Instruments

300-mA, high-PSRR, low-IQ, low-VOUT, low-dropout voltage regulator with enable 5-SOT-23 -40 to 125

Part Details for TLV71209DBVR by Texas Instruments

Results Overview of TLV71209DBVR by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Environmental Monitoring Space Technology Internet of Things (IoT) Industrial Automation Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Medical Imaging Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Automotive Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Aerospace and Defense Healthcare Renewable Energy Electronic Manufacturing Communication and Networking Robotics and Drones

TLV71209DBVR Information

TLV71209DBVR by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for TLV71209DBVR

Part # Distributor Description Stock Price Buy
Rochester Electronics TLV712 300-mA, Sub-Band-Gap Output Voltage, Low-Iq, Low-Dropout Regulator RoHS: Compliant Status: Active Min Qty: 1 20
  • 100 $0.1902
  • 500 $0.1712
  • 1,000 $0.1579
  • 10,000 $0.1407
  • 100,000 $0.1179
$0.1179 / $0.1902 Buy Now
Ameya Holding Limited IC REG LDO 0.9V 0.3A SOT23-5 453506
RFQ
DISTI # TLV71209DBVR
Chip One Stop Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape 2340
  • 5 $0.2120
  • 10 $0.2090
  • 50 $0.2060
  • 100 $0.2030
  • 200 $0.2020
  • 500 $0.1960
  • 1,000 $0.1930
  • 3,000 $0.1810
  • 6,000 $0.1700
  • 12,000 $0.1590
$0.1590 / $0.2120 Buy Now
LCSC 68dB(1kHz) 300mA Fixed 900mV Positive 5.5V SOT-23-5 Voltage Regulators - Linear Low Drop Out (LDO) Regulators ROHS 30
  • 1 $0.5979
  • 10 $0.4814
  • 30 $0.4216
  • 100 $0.3633
  • 500 $0.3296
  • 1,000 $0.3112
$0.3112 / $0.5979 Buy Now

Part Details for TLV71209DBVR

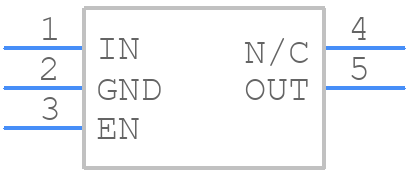

TLV71209DBVR CAD Models

TLV71209DBVR Part Data Attributes

TLV71209DBVR Texas Instruments
Buy Now Datasheet
Compare Parts:
TLV71209DBVR Texas Instruments 300-mA, high-PSRR, low-IQ, low-VOUT, low-dropout voltage regulator with enable 5-SOT-23 -40 to 125
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code SOT-23
Package Description GREEN, PLASTIC, SOT-23, 5 PIN
Pin Count 5
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Texas Instruments
Adjustability FIXED
Dropout Voltage1-Max 0.26 V
Dropout Voltage1-Nom 0.26 V
Input Voltage Absolute-Max 6 V
Input Voltage-Max 5.5 V
Input Voltage-Min 2 V
JESD-30 Code R-PDSO-G5
JESD-609 Code e4
Length 2.9 mm
Line Regulation-Max 0.005%
Load Regulation-Max 0.015%
Moisture Sensitivity Level 1
Number of Functions 1
Number of Outputs 1
Number of Terminals 5
Operating Temperature TJ-Max 125 °C
Operating Temperature TJ-Min -40 °C
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Output Current1-Max 0.3 A
Output Voltage1-Max 0.92 V
Output Voltage1-Min 0.88 V
Output Voltage1-Nom 0.9 V
Package Body Material PLASTIC/EPOXY
Package Code LSSOP
Package Equivalence Code TSOP5/6,.11,37
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Packing Method TR
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Regulator Type FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max 1.45 mm
Surface Mount YES
Technology CMOS
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 0.95 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Voltage Tolerance-Max 2%
Width 1.6 mm

Alternate Parts for TLV71209DBVR

This table gives cross-reference parts and alternative options found for TLV71209DBVR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TLV71209DBVR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
TLV71209DBVT Texas Instruments Check for Price 300-mA, high-PSRR, low-IQ, low-VOUT, low-dropout voltage regulator with enable 5-SOT-23 -40 to 125 TLV71209DBVR vs TLV71209DBVT

TLV71209DBVR Related Parts

TLV71209DBVR Frequently Asked Questions (FAQ)

  • The maximum input voltage that can be applied to the TLV71209DBVR is 18V. Exceeding this voltage may cause damage to the device.

  • To ensure stability, it's essential to follow proper compensation techniques, such as adding a capacitor in parallel with the feedback resistor to create a pole, and ensuring that the gain-bandwidth product is not exceeded.

  • To minimize noise and EMI, it's recommended to place the TLV71209DBVR close to the power source, use a ground plane, and keep the input and output traces short and separate. Additionally, decoupling capacitors should be placed close to the device.

  • To handle thermal considerations, ensure that the device is mounted on a heat sink or a thermally conductive material, and that the ambient temperature is within the recommended operating range. Also, consider using thermal interface materials to improve heat transfer.

  • The TLV71209DBVR has a higher output current capability and a wider input voltage range compared to other similar devices. It also has a lower quiescent current and a smaller package size, making it suitable for battery-powered applications.
