TM4C1294NCPDTT3 by: Texas Instruments

32-bit Arm Cortex-M4F based MCU with 120-MHZ, 1-MB flash, 256-KB RAM, USB, ENET MAC+PHY 128-TQFP -40 to 105

Part Details for TM4C1294NCPDTT3 by Texas Instruments

Overview of TM4C1294NCPDTT3 by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

Price & Stock for TM4C1294NCPDTT3

Part # Distributor Description Stock Price Buy
DISTI # 296-37943-ND
DigiKey IC MCU 32BIT 1MB FLASH 128TQFP Min Qty: 1 Container: Tray 466
Tray
  • 1 $19.9300
  • 10 $18.3160
  • 25 $17.5564
  • 90 $15.4687
  • 270 $14.7094
  • 450 $13.7604
$13.7604 / $19.9300 Buy Now
NexGen Digital   1
RFQ

Part Details for TM4C1294NCPDTT3

TM4C1294NCPDTT3 CAD Models

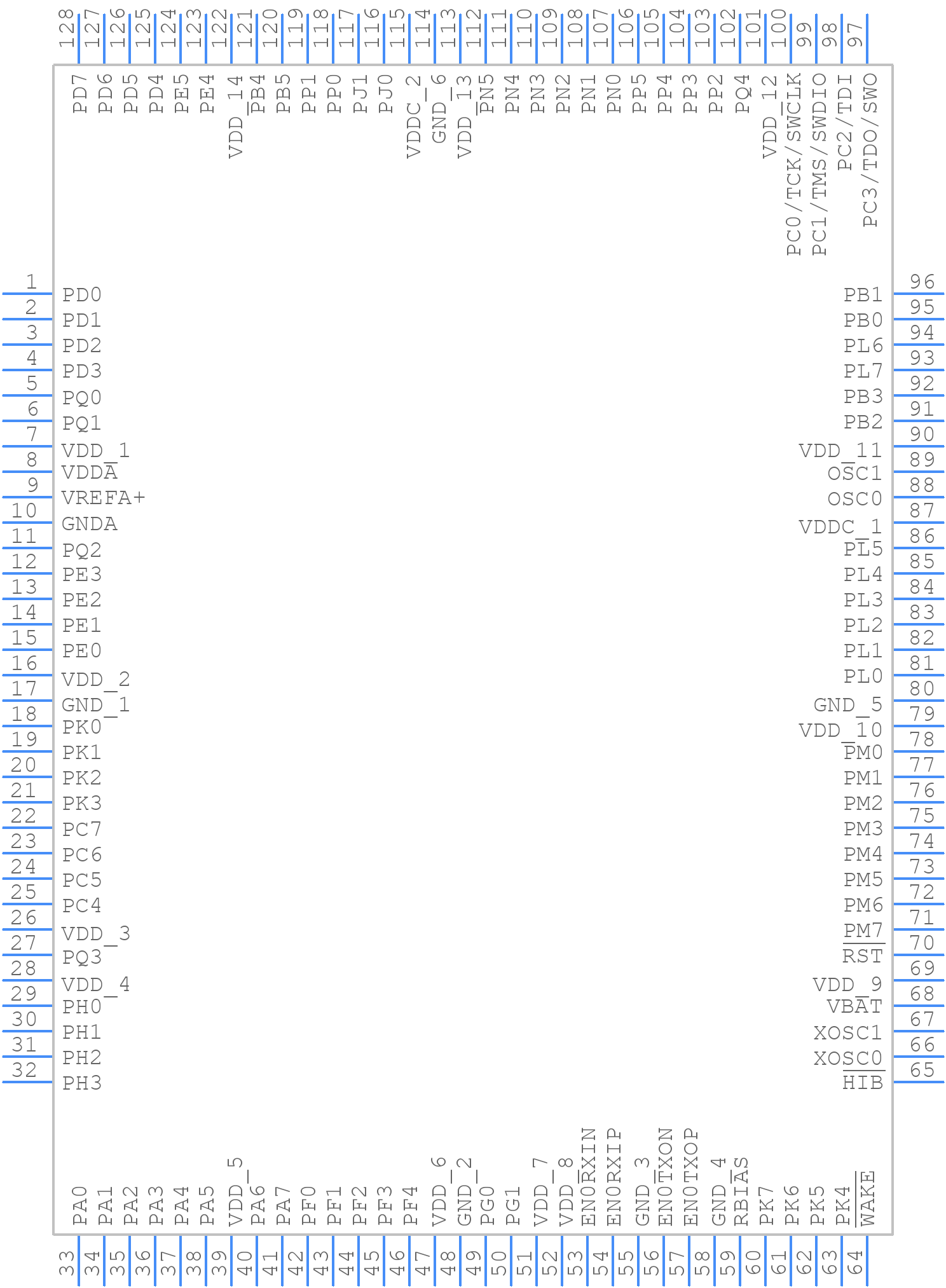

TM4C1294NCPDTT3 Part Data Attributes

TM4C1294NCPDTT3 Texas Instruments
Buy Now Datasheet
Compare Parts:
TM4C1294NCPDTT3 Texas Instruments 32-bit Arm Cortex-M4F based MCU with 120-MHZ, 1-MB flash, 256-KB RAM, USB, ENET MAC+PHY 128-TQFP -40 to 105
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Package Description TFQFP,
Reach Compliance Code compliant
ECCN Code 5A992.C
HTS Code 8542.31.00.01
Samacsys Manufacturer Texas Instruments
Has ADC YES
Address Bus Width 28
Bit Size 32
Boundary Scan YES
CPU Family CORTEX-M4F
Clock Frequency-Max 25 MHz
DAC Channels NO
DMA Channels YES
External Data Bus Width 32
Format FIXED POINT
Integrated Cache YES
JESD-30 Code S-PQFP-G128
JESD-609 Code e4
Length 14 mm
Low Power Mode YES
Moisture Sensitivity Level 3
Number of DMA Channels 32
Number of External Interrupts
Number of I/O Lines 90
Number of Serial I/Os 5
Number of Terminals 128
Number of Timers 8
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code TFQFP
Package Shape SQUARE
Package Style FLATPACK, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) 260
RAM (bytes) 262144
RAM (words) 256
ROM (words) 1048576
ROM Programmability FLASH
Seated Height-Max 1.2 mm
Speed 120 MHz
Supply Current-Max 144.6 mA
Supply Voltage-Max 1.32 V
Supply Voltage-Min 1.2 V
Supply Voltage-Nom 1.2 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish NICKEL PALLADIUM GOLD
Terminal Form GULL WING
Terminal Pitch 0.4 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Width 14 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
