TMM-107-01-S-D-SM-P-TR by: Samtec Inc

Board Connector, 14 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Locking, Receptacle, ROHS COMPLIANT

Part Details for TMM-107-01-S-D-SM-P-TR by Samtec Inc

Results Overview of TMM-107-01-S-D-SM-P-TR by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Space Technology Aerospace and Defense Transportation and Logistics Renewable Energy Automotive Robotics and Drones

TMM-107-01-S-D-SM-P-TR Information

TMM-107-01-S-D-SM-P-TR by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
DBL5W5P543A40LF Amphenol Communications Solutions D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 5W5 Pin Right Angle Solder 40A, Europe Standard, 500 Cycles, Front: Threaded Insert M3, Back: Without Accessory on PCB.
DEL2V2P543H40LF Amphenol Communications Solutions D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 2V2 Pin Right Angle Solder 40A, Europe Standard, 500 Cycles, Front: Threaded Insert M3, Back: Harpoons for 2.4mm PCB Thickness.
DC8W8P500H30LF Amphenol Communications Solutions D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 8W8 Pin Right Angle Solder 30A, Europe Standard, 200 Cycles, Front: Without Accessory, Back: Harpoons for 2.4mm PCB Thickness.

Price & Stock for TMM-107-01-S-D-SM-P-TR

Part # Distributor Description Stock Price Buy
DISTI # 85P3993
Newark Tmm-107-01-S-D-Sm-P-Tr/ Tape & Reel Rohs Compliant: Yes |Samtec TMM-107-01-S-D-SM-P-TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $1.9300
  • 500 $1.8000
  • 1,000 $1.7500
$1.7500 / $1.9300 Buy Now
DISTI # TMM-107-01-S-D-SM-P-TR
Avnet Americas Pin Header, Board-to-Board, Wire-to-Board, 2 mm, 2 Rows, 14 Contacts, Surface Mount, TMM - Tape and Reel (Alt: TMM-107-01-S-D-SM-P-TR) RoHS: Compliant Min Qty: 425 Package Multiple: 425 Lead time: 2 Weeks, 6 Days Container: Reel 0
  • 425 $2.0871
  • 850 $1.7156
  • 1,700 $1.4190
  • 2,550 $1.1593
  • 3,400 $1.1224
$1.1224 / $2.0871 Buy Now
DISTI # 000000000001360461
Sager Headers & Wire Housings Low Profile Tiger Eye Header Strips, 2.00 mm Pitch Min Qty: 1 0
  • 1 $2.6300
  • 25 $2.5100
  • 50 $2.3300
  • 100 $2.1400
  • 500 $1.7600
  • 1,000 $1.4700
$1.4700 / $2.6300 Buy Now
DISTI # TMM-107-01-S-D-SM-P-TR
Avnet Abacus Pin Header BoardtoBoard WiretoBoard 2 mm 2 Rows 14 Contacts Surface Mount TMM (Alt: TMM-107-01-S-D-SM-P-TR) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks, 0 Days Abacus - 0
Buy Now

Part Details for TMM-107-01-S-D-SM-P-TR

TMM-107-01-S-D-SM-P-TR CAD Models

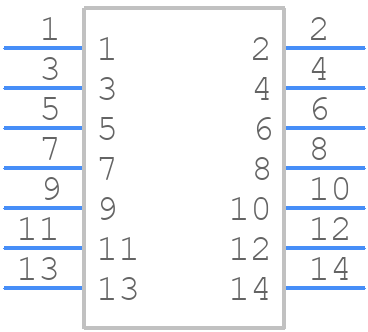

  • Part Symbol

    Part Symbol

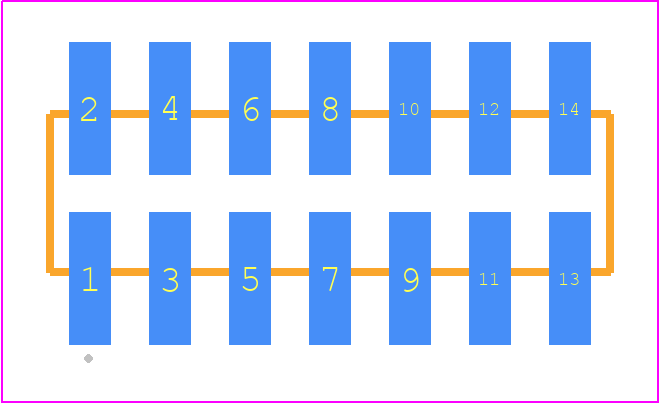

  • Footprint
