Sensors/Transducers / Temperature Sensors / TMP112AQDRLRQ1
Datasheets
TMP112AQDRLRQ1 by:

Automotive ±0.5°C 1.4V to 3.6V digital temperature sensor with I2C/SMBus in 2.56mm2 package 6-SOT-5X3 -40 to 125

Part Details for TMP112AQDRLRQ1 by Texas Instruments

Results Overview of TMP112AQDRLRQ1 by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

TMP112AQDRLRQ1 Information

TMP112AQDRLRQ1 by Texas Instruments is a Temperature Sensor.
Temperature Sensors are under the broader part category of Sensors/Transducers.

Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
TMP112AQDRLRQ1 Texas Instruments Automotive 1.4V-Capable ±0.5°C Temperature Sensor With Alert Function and I2C/SMBus 6-SOT-5X3 -40 to 125

Price & Stock for TMP112AQDRLRQ1

Part # Distributor Description Stock Price Buy
DISTI # TMP112AQDRLRQ1
TME IC: temperature sensor, -40÷125°C, SOT-5X3-6, SMD, Accur: ±0.5°C Min Qty: 1 0
  • 1 $2.7000
  • 3 $2.1900
  • 10 $1.7800
  • 25 $1.7000
  • 50 $1.6500
  • 100 $1.5400
  • 250 $1.4700
  • 500 $1.4200
  • 1,000 $1.3100
$1.3100 / $2.7000 RFQ
LCSC SOT-563 Temperature Sensors ROHS 747
  • 1 $0.5356
  • 10 $0.4752
  • 30 $0.4657
  • 100 $0.4514
$0.4514 / $0.5356 Buy Now
Vyrian Sensors & Transducers 8038
RFQ

Part Details for TMP112AQDRLRQ1

TMP112AQDRLRQ1 CAD Models

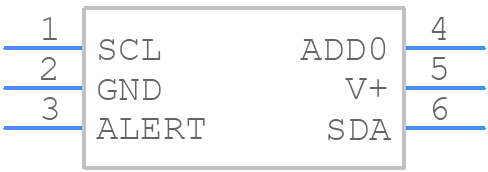

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

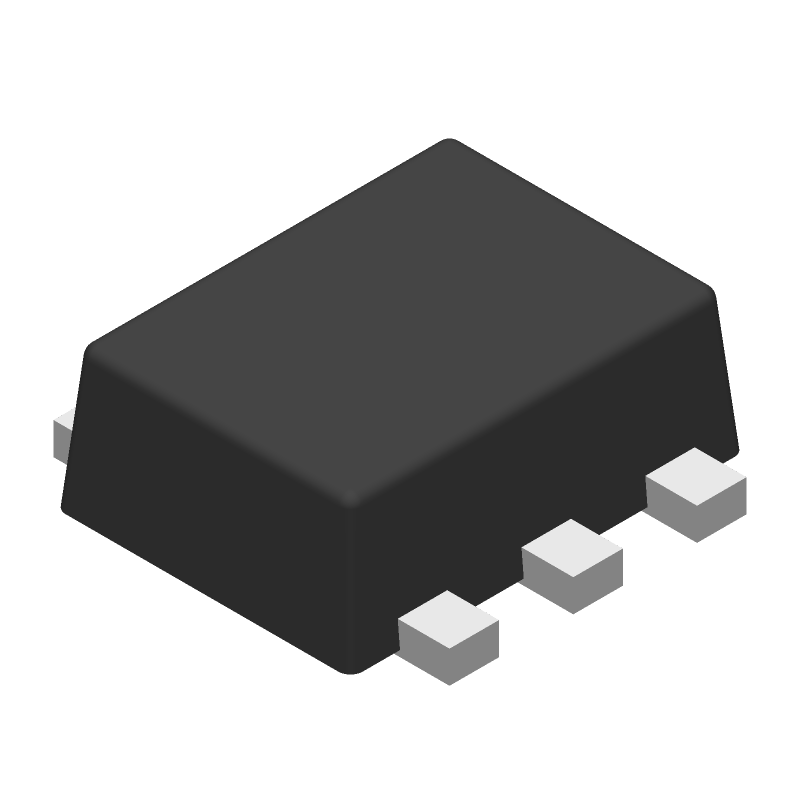

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TMP112AQDRLRQ1 Part Data Attributes

Parametric Data
TMP112AQDRLRQ1 Texas Instruments
Buy Now Datasheet
Compare Parts:
TMP112AQDRLRQ1 Texas Instruments Automotive ±0.5°C 1.4V to 3.6V digital temperature sensor with I2C/SMBus in 2.56mm2 package 6-SOT-5X3 -40 to 125
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Package Description SOT563, 6 PIN
Reach Compliance Code compliant
ECCN Code EAR99
Samacsys Manufacturer Texas Instruments
Accuracy-Max (Cel) 0.5 Cel
Additional Feature OUTPUT INTERFACE TYPE-I2C
Body Breadth 1.2 mm
Body Height 0.6 mm
Body Length or Diameter 1.6 mm
Housing PLASTIC
JESD-609 Code e4
Mounting Feature SURFACE MOUNT
Number of Bits 12
Number of Terminals 6
Operating Current-Max 0.01 mA
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Output Interface Type 2-WIRE INTERFACE
Package Body Material PLASTIC/EPOXY
Package Shape/Style RECTANGULAR
Screening Level AEC-Q100
Sensors/Transducers Type TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL
Supply Voltage-Max 3.6 V
Supply Voltage-Min 1.4 V
Surface Mount YES
Terminal Finish Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Termination Type SOLDER

Alternate Parts for TMP112AQDRLRQ1

This table gives cross-reference parts and alternative options found for TMP112AQDRLRQ1. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TMP112AQDRLRQ1, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
TMP112AIDRLR Texas Instruments $1.1811 ±0.5°C 1.4V-to-3.6V digital temperature sensor with I2C/SMBus 6-SOT-5X3 -40 to 125 TMP112AQDRLRQ1 vs TMP112AIDRLR
TMP112AIDRLT Texas Instruments $1.1219 ±0.5°C 1.4V-to-3.6V digital temperature sensor with I2C/SMBus 6-SOT-5X3 -40 to 125 TMP112AQDRLRQ1 vs TMP112AIDRLT

TMP112AQDRLRQ1 Related Parts

TMP112AQDRLRQ1 Frequently Asked Questions (FAQ)

  • The TMP112AQDRLRQ1 has an accuracy of ±0.5°C over the entire operating temperature range of -40°C to 150°C.

  • The TMP112AQDRLRQ1 defaults to 12-bit resolution. To configure it for 13-bit resolution, set the EM bit (bit 7) in the configuration register to 1.

  • The conversion time for the TMP112AQDRLRQ1 is approximately 30 ms for 12-bit resolution and 60 ms for 13-bit resolution.

  • Yes, the TMP112AQDRLRQ1 supports multi-drop configuration, allowing multiple devices to share the same bus.

  • The TMP112AQDRLRQ1 has an alert function that can be configured to trigger an interrupt when the temperature exceeds a set threshold. The alert function is enabled by setting the ALERT_EN bit (bit 5) in the configuration register.
