TMP236A4DBZR by: Texas Instruments

±2.0°C analog output temperature sensor, with 19.5mV/°C gain 3-SOT-23 -10 to 125

Part Details for TMP236A4DBZR by Texas Instruments

Results Overview of TMP236A4DBZR by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

TMP236A4DBZR Information

TMP236A4DBZR by Texas Instruments is a Temperature Sensor.
Temperature Sensors are under the broader part category of Sensors/Transducers.

Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.

Price & Stock for TMP236A4DBZR

Part # Distributor Description Stock Price Buy
Ameya Holding Limited   613169
RFQ
DISTI # TMP236A4DBZR
Chip One Stop Semiconductors RoHS: Compliant Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape 2755
  • 5 $0.1520
  • 50 $0.1390
  • 100 $0.1360
  • 200 $0.1350
  • 500 $0.1270
  • 1,000 $0.1210
$0.1210 / $0.1520 Buy Now
LCSC 4 SOT-23 Temperature Sensors ROHS 355
  • 5 $0.2666
  • 50 $0.2087
  • 150 $0.1839
  • 500 $0.1530
  • 3,000 $0.1392
  • 6,000 $0.1309
$0.1309 / $0.2666 Buy Now
Vyrian Sensors & Transducers 39410
RFQ
Win Source Electronics LOW-POWER HIGH-ACCURACY ANALOG O 99150
  • 335 $0.1506
  • 710 $0.1409
  • 1,105 $0.1361
  • 1,585 $0.1264
  • 2,060 $0.1215
  • 2,575 $0.1166
$0.1166 / $0.1506 Buy Now

Part Details for TMP236A4DBZR

TMP236A4DBZR CAD Models

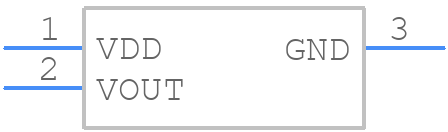

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TMP236A4DBZR Part Data Attributes

Parametric Data
TMP236A4DBZR Texas Instruments
Buy Now Datasheet
Compare Parts:
TMP236A4DBZR Texas Instruments ±2.0°C analog output temperature sensor, with 19.5mV/°C gain 3-SOT-23 -10 to 125
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Date Of Intro 2018-08-26
Samacsys Manufacturer Texas Instruments
Accuracy-Max (Cel) 2 Cel
Additional Feature SHORT CIRCUIT PROTECTION
Body Breadth 1.3 mm
Body Height 0.95 mm
Body Length or Diameter 2.92 mm
Housing PLASTIC
JESD-609 Code e4
Mounting Feature SURFACE MOUNT
Number of Terminals 3
Operating Current-Max 0.012 mA
Operating Temperature-Max 125 °C
Operating Temperature-Min -10 °C
Package Body Material PLASTIC/EPOXY
Package Shape/Style RECTANGULAR
Sensors/Transducers Type TEMPERATURE SENSOR,ANALOG,VOLTAGE OUTPUT
Supply Voltage-Max 5.5 V
Supply Voltage-Min 3.1 V
Surface Mount YES
Technology CMOS
Terminal Finish Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Termination Type SOLDER
