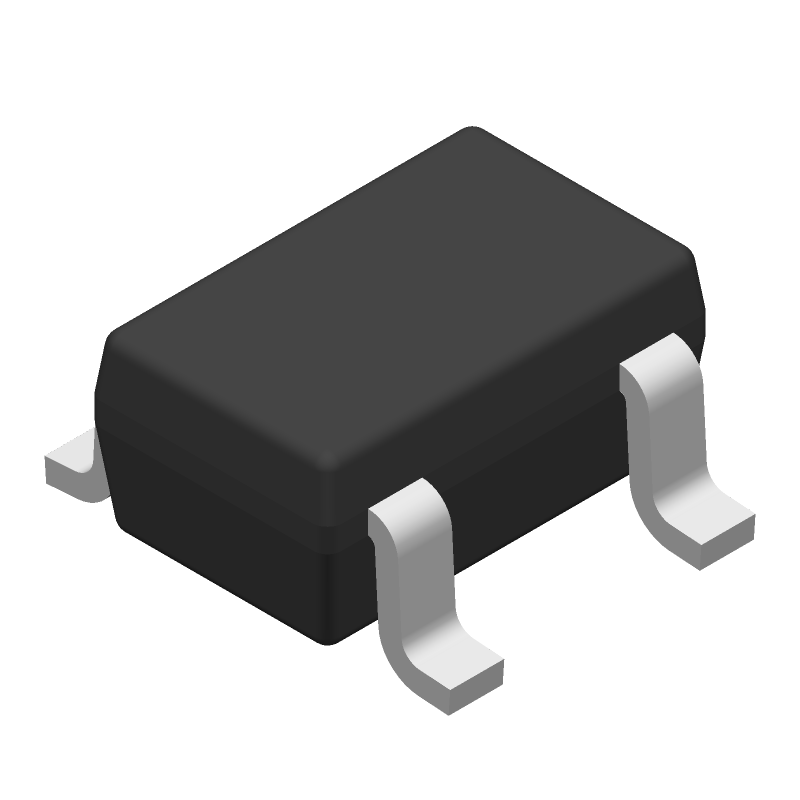

TMP236A4DCKR by: Texas Instruments

±2.0°C analog output temperature sensor, with 19.5mV/°C gain 5-SC70 -10 to 125

Part Details for TMP236A4DCKR by Texas Instruments

Results Overview of TMP236A4DCKR by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

TMP236A4DCKR Information

TMP236A4DCKR by Texas Instruments is a Temperature Sensor.
Temperature Sensors are under the broader part category of Sensors/Transducers.

Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.

Price & Stock for TMP236A4DCKR

Part # Distributor Description Stock Price Buy
DISTI # TMP236A4DCKR
TME IC: temperature sensor, -10÷125°C, SC70-5, SMD, Interface: analog Min Qty: 1 0
  • 1 $0.4210
  • 3 $0.3570
  • 10 $0.2910
  • 25 $0.2770
  • 50 $0.2620
  • 100 $0.2430
  • 250 $0.2270
  • 500 $0.2040
  • 1,000 $0.1770
$0.1770 / $0.4210 RFQ
LCSC 4 SC-70-5 Temperature Sensors ROHS 1130
  • 5 $0.2665
  • 50 $0.2086
  • 150 $0.1839
  • 500 $0.1529
  • 3,000 $0.1392
  • 6,000 $0.1309
$0.1309 / $0.2665 Buy Now
Win Source Electronics SENSOR ANALOG -10C-125C SC70-5 33000
  • 170 $0.2979
  • 410 $0.2445
  • 635 $0.2368
  • 875 $0.2292
  • 1,130 $0.2216
  • 1,515 $0.1986
$0.1986 / $0.2979 Buy Now

Part Details for TMP236A4DCKR

TMP236A4DCKR CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TMP236A4DCKR Part Data Attributes

Parametric Data
TMP236A4DCKR Texas Instruments
Buy Now Datasheet
Compare Parts:
TMP236A4DCKR Texas Instruments ±2.0°C analog output temperature sensor, with 19.5mV/°C gain 5-SC70 -10 to 125
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Date Of Intro 2018-05-18
Samacsys Manufacturer Texas Instruments
Accuracy-Max (Cel) 2 Cel
Additional Feature SHORT CIRCUIT PROTECTION
Body Breadth 1.25 mm
Body Height 0.9 mm
Body Length or Diameter 2 mm
Housing PLASTIC
JESD-609 Code e4
Mounting Feature SURFACE MOUNT
Number of Terminals 5
Operating Current-Max 0.012 mA
Operating Temperature-Max 125 °C
Operating Temperature-Min -10 °C
Package Body Material PLASTIC/EPOXY
Package Shape/Style RECTANGULAR
Sensors/Transducers Type TEMPERATURE SENSOR,ANALOG,VOLTAGE OUTPUT
Supply Voltage-Max 5.5 V
Supply Voltage-Min 3.1 V
Surface Mount YES
Technology CMOS
Terminal Finish Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Termination Type SOLDER

Alternate Parts for TMP236A4DCKR

This table gives cross-reference parts and alternative options found for TMP236A4DCKR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TMP236A4DCKR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
TMP236A4DCKT Texas Instruments $0.2260 ±2.0°C analog output temperature sensor, with 19.5mV/°C gain 5-SC70 -10 to 125 TMP236A4DCKR vs TMP236A4DCKT
TMP236A4DBZT Texas Instruments $0.2529 ±2.0°C analog output temperature sensor, with 19.5mV/°C gain 3-SOT-23 -10 to 125 TMP236A4DCKR vs TMP236A4DBZT
TMP36GS-REEL7 Analog Devices Inc Check for Price Analog Temperature Sensor, ANALOG TEMP SENSOR-VOLTAGE, 0.1-2V, 4Cel, RECTANGULAR, SURFACE MOUNT, MS-012AA, SOIC-8 TMP236A4DCKR vs TMP36GS-REEL7
TMP36GS Analog Devices Inc Check for Price Analog Temperature Sensor, ANALOG TEMP SENSOR-VOLTAGE, 0.1-2V, 4Cel, RECTANGULAR, SURFACE MOUNT, MS-012AA, SOIC-8 TMP236A4DCKR vs TMP36GS
TMP36GSZ-REEL Analog Devices Inc $1.2118 Voltage Output Temperature Sensors TMP236A4DCKR vs TMP36GSZ-REEL
TMP36GSZ Analog Devices Inc $1.1614 Voltage Output Temperature Sensors TMP236A4DCKR vs TMP36GSZ
TMP236A4DBZR Texas Instruments $0.1338 ±2.0°C analog output temperature sensor, with 19.5mV/°C gain 3-SOT-23 -10 to 125 TMP236A4DCKR vs TMP236A4DBZR
TMP36GS-REEL Analog Devices Inc Check for Price Analog Temperature Sensor, ANALOG TEMP SENSOR-VOLTAGE, 0.1-2V, 4Cel, RECTANGULAR, SURFACE MOUNT, MS-012AA, SOIC-8 TMP236A4DCKR vs TMP36GS-REEL

TMP236A4DCKR Frequently Asked Questions (FAQ)

  • Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer to improve thermal performance. The device should be placed near a thermal pad or a heat sink to dissipate heat efficiently.

  • To ensure accurate temperature readings in high-noise environments, use a low-pass filter or a shielded cable to connect the TMP236A4DCKR to the microcontroller. Additionally, consider using a noise-reducing capacitor between the VCC and GND pins.

  • The maximum cable length for the TMP236A4DCKR is not specified in the datasheet, but as a general rule, it's recommended to keep the cable length as short as possible (less than 1 meter) to minimize signal attenuation and noise pickup.

  • The TMP236A4DCKR is not designed for use in humid or high-moisture environments. It's recommended to use a conformal coating or a moisture-resistant package to protect the device from moisture and humidity.

  • The TMP236A4DCKR does not require calibration for typical temperature measurement applications. However, for high-accuracy measurements, you can perform a one-point or two-point calibration using a precision temperature reference source.
