TMS320F2812GHHA Information
TMS320F2812GHHA by Texas Instruments is a Digital Signal Processor.
Digital Signal Processors are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for TMS320F2812GHHA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Vyrian | Peripheral ICs | 586 |
|
RFQ | |
|
|
Win Source Electronics | IC MCU 32BIT 256KB FLASH 179BGA | 155 |
|
$1,287.0000 | Buy Now |
Part Details for TMS320F2812GHHA

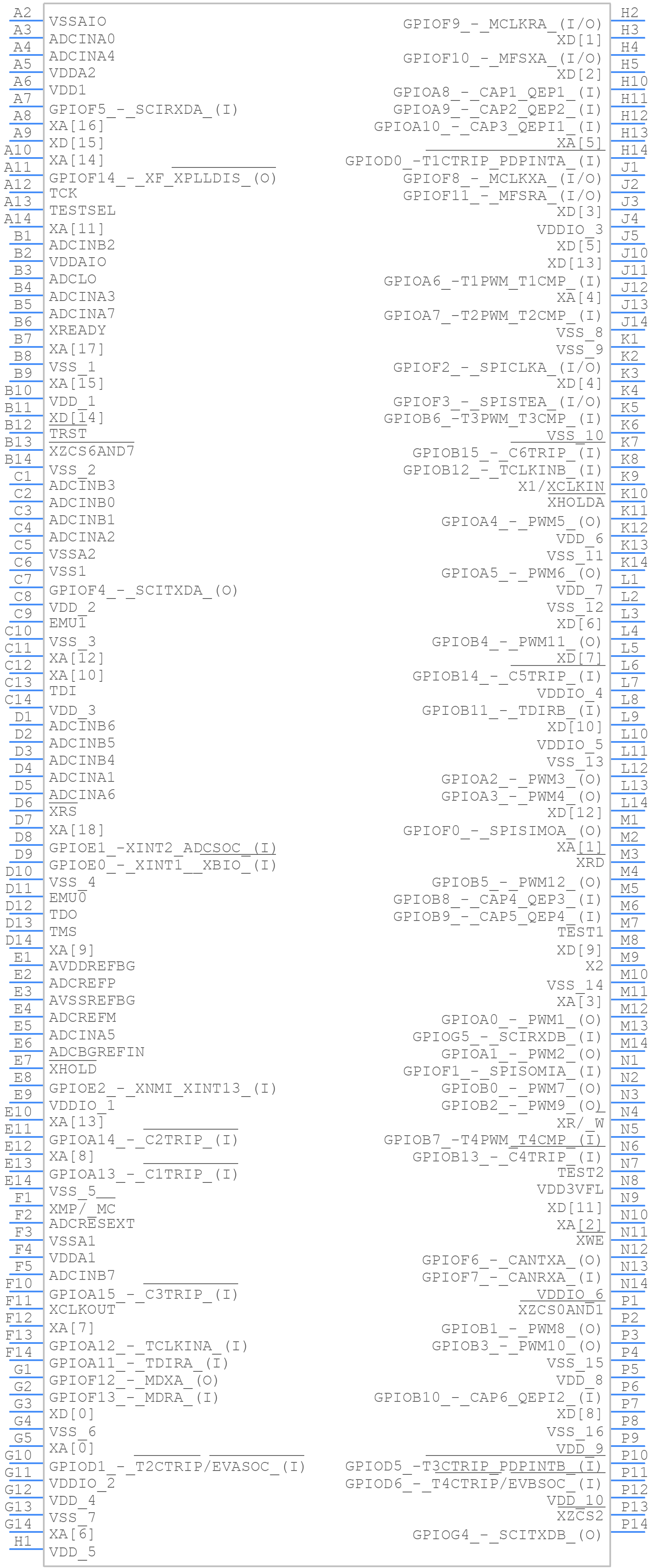

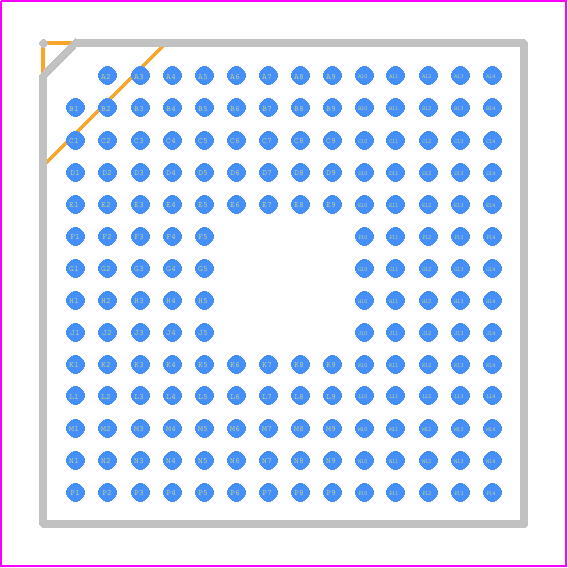

TMS320F2812GHHA CAD Models
TMS320F2812GHHA Part Data Attributes
|
|
TMS320F2812GHHA
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TMS320F2812GHHA
Texas Instruments
C2000™ 32-bit MCU with 150 MHz, 256 KB Flash, EMIF 179-BGA MICROSTAR -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | BGA | |
| Package Description | BGA-179 | |
| Pin Count | 179 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | ALSO OPERATES AT 1.8 SUPPLY AT 135MHZ | |
| Address Bus Width | 19 | |
| Barrel Shifter | NO | |
| Bit Size | 32 | |
| Boundary Scan | YES | |
| CPU Family | C28X | |
| Clock Frequency-Max | 150 MHz | |
| External Data Bus Width | 16 | |
| Format | FIXED POINT | |
| Integrated Cache | NO | |
| Internal Bus Architecture | MULTIPLE | |
| JESD-30 Code | S-PBGA-B179 | |
| JESD-609 Code | e0 | |
| Length | 12 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 3 | |
| Number of External Interrupts | 3 | |
| Number of Terminals | 179 | |
| Number of Timers | 8 | |
| On Chip Data RAM Width | 16 | |
| On Chip Program ROM Width | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFBGA | |
| Package Equivalence Code | BGA179,14X14,32 | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 220 | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 36864 | |
| RAM (words) | 18432 | |
| ROM Programmability | OTPROM | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1.4 mm | |
| Supply Current-Max | 230 mA | |
| Supply Voltage-Max | 2 V | |
| Supply Voltage-Min | 1.81 V | |
| Supply Voltage-Nom | 1.9 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | TIN LEAD | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 20 | |
| Width | 12 mm | |
| uPs/uCs/Peripheral ICs Type | DIGITAL SIGNAL PROCESSOR, OTHER |
TMS320F2812GHHA Frequently Asked Questions (FAQ)
-
The maximum clock frequency of the TMS320F2812GHHA is 150 MHz.
-
The flash memory of the TMS320F2812GHHA can be configured using the Flash API provided by Texas Instruments. The API provides functions to read, write, and erase the flash memory.
-
The XINTF pin on the TMS320F2812GHHA is an external interrupt pin that can be used to trigger an interrupt in the microcontroller.
-
The PWM modules on the TMS320F2812GHHA can be used to generate PWM signals for motor control, power conversion, and other applications. The PWM modules can be configured using the PWM API provided by Texas Instruments.
-
The maximum current rating of the GPIO pins on the TMS320F2812GHHA is 4 mA per pin.
