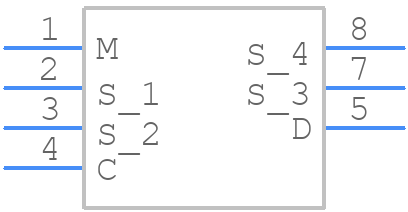

Part Symbol
-

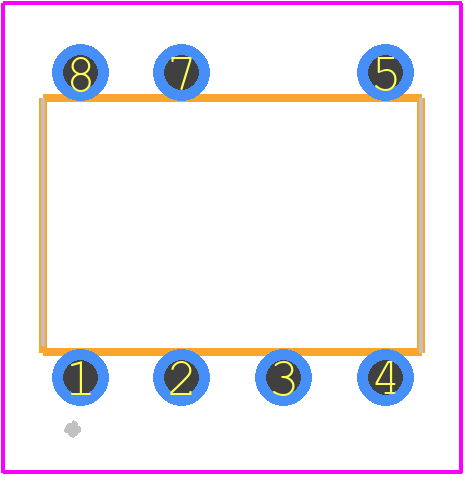

Footprint
-

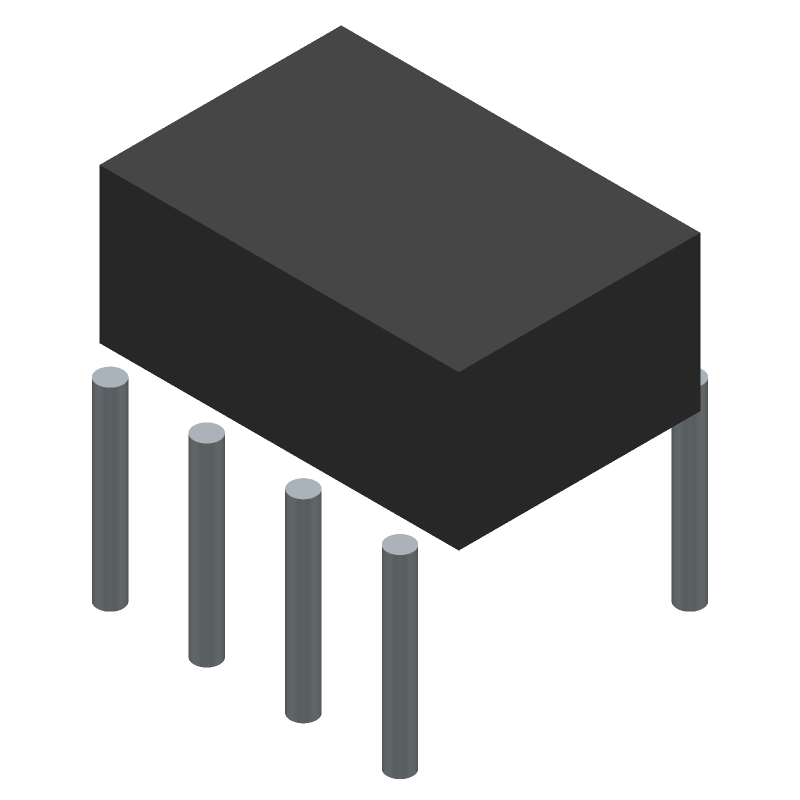

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TOP243PN by Power Integrations
Results Overview of TOP243PN by Power Integrations
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TOP243PN Information
TOP243PN by Power Integrations is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TOP243PN
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2475423
|
Farnell | AC/DC CONVERTER, FLYBACK, DIP-7 RoHS: Compliant Min Qty: 1 Lead time: 9 Weeks, 1 Days Container: Each | 931 |
|
$1.4187 / $2.2009 | Buy Now |
|
DISTI #
TOP243PN
|
Avnet Americas | Off Line Switcher 7-Pin PDIP-B - Rail/Tube (Alt: TOP243PN) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 8 Weeks, 0 Days Container: Tube | 0 |
|
$1.2192 / $1.2838 | Buy Now |
|
DISTI #
TOP243PN
|
Avnet Americas | Off Line Switcher 7-Pin PDIP-B - Rail/Tube (Alt: TOP243PN) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 8 Weeks, 0 Days Container: Tube | 0 |
|
$1.2192 / $1.2838 | Buy Now |
|
DISTI #
TOP243PN
|
Avnet Asia | Off Line Switcher 7-Pin PDIP-B (Alt: TOP243PN) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 8 Weeks, 0 Days | 0 |
|
RFQ | |
|
DISTI #
TOP243PN
|
EBV Elektronik | Off Line Switcher 7Pin PDIPB (Alt: TOP243PN) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 10 Weeks, 0 Days | EBV - 850 |
|
Buy Now | |
|
|
New Advantage Corporation | RoHS: Compliant Min Qty: 1 Package Multiple: 50 | 700 |
|
$5.6500 / $6.1000 | Buy Now |
Part Details for TOP243PN
TOP243PN CAD Models
TOP243PN Part Data Attributes
|
|
TOP243PN
Power Integrations
Buy Now
Datasheet
|
Compare Parts:
TOP243PN
Power Integrations
Switching Regulator, Voltage-mode, 1.44A, 140kHz Switching Freq-Max, CMOS, PDIP7, DIP-8/7
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | POWER INTEGRATIONS INC | |
| Part Package Code | DIP | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Power Integrations | |
| Additional Feature | REQUIRES AN AC SUPPLY OF 85 TO 265 V | |
| Analog IC - Other Type | POWER SUPPLY SUPPORT CIRCUIT | |
| JESD-30 Code | R-PDIP-T7 | |
| JESD-609 Code | e3 | |
| Length | 9.575 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 7 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Equivalence Code | DIP8,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 3.62 mm | |
| Surface Mount | NO | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Width | 7.62 mm |
TOP243PN Frequently Asked Questions (FAQ)
-
The maximum output power of the TOP243PN is 24W, but it can be derated based on the input voltage, output voltage, and ambient temperature.
-
To ensure the TOP243PN operates within its SOA, follow the guidelines in the datasheet for input voltage, output voltage, output current, and ambient temperature. Also, make sure to provide adequate heat sinking and thermal management.
-
The BYPASS pin is used to connect a bypass capacitor to the internal voltage regulator. This helps to reduce the noise and ripple on the internal voltage regulator output, ensuring stable operation of the TOP243PN.
-
When selecting a transformer for the TOP243PN, consider the input voltage, output voltage, and power rating. The transformer should be designed to handle the maximum output power of the TOP243PN, and its turns ratio should be chosen to achieve the desired output voltage.
-
The FEEDBACK pin is used to connect an external resistor divider network to set the output voltage of the TOP243PN. The resistor divider network should be designed to provide a feedback voltage that is proportional to the output voltage.
