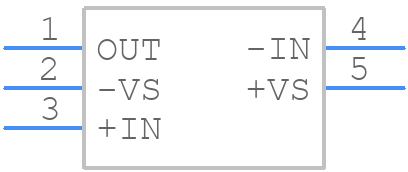

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TPA5561-S5TR by 3peak Incorporated
Results Overview of TPA5561-S5TR by 3peak Incorporated
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TPA5561-S5TR Information
TPA5561-S5TR by 3peak Incorporated is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Part Details for TPA5561-S5TR

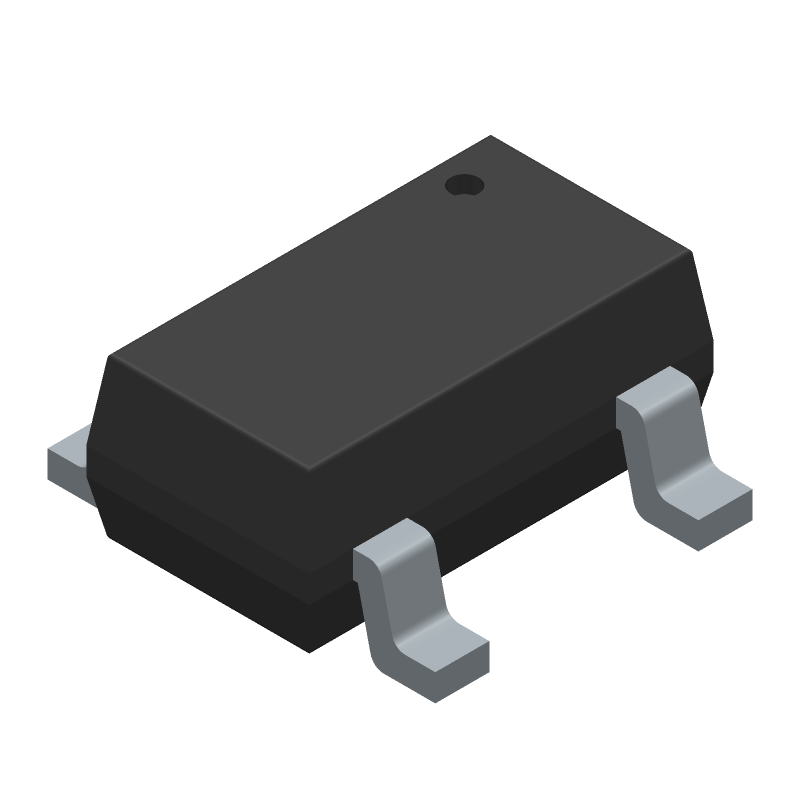

TPA5561-S5TR CAD Models
TPA5561-S5TR Part Data Attributes
|
|
TPA5561-S5TR
3peak Incorporated
Buy Now
Datasheet
|
Compare Parts:
TPA5561-S5TR
3peak Incorporated
Precision Operational Amplifier, 1 Circuit, SOT23-5
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Contact Manufacturer | |
| Ihs Manufacturer | 3PEAK INC | |
| Package Description | SOT-23, 5 PIN | |
| Reach Compliance Code | unknown | |
| Samacsys Manufacturer | 3Peak Incorporated | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.0013 µA | |
| Bias Current-Max (IIB) @25C | 0.001 µA | |
| Common-mode Reject Ratio-Min | 110 dB | |
| Common-mode Reject Ratio-Nom | 140 dB | |
| Frequency Compensation | NO | |
| Input Offset Voltage-Max | 0.02 µV | |
| JESD-30 Code | R-PDSO-G5 | |
| Length | 2.92 mm | |
| Low-Bias | NO | |
| Low-Offset | YES | |
| Micropower | NO | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Power | NO | |
| Programmable Power | NO | |
| Seated Height-Max | 1.25 mm | |
| Slew Rate-Nom | 4.7 V/us | |
| Supply Current-Max | 1.2 mA | |
| Supply Voltage Limit-Max | 6.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Unity Gain BW-Nom | 3500 | |
| Voltage Gain-Min | 562341.3252 | |
| Wideband | NO | |
| Width | 1.61 mm |
