TPD4E02B04DQAR by: Texas Instruments

Quad 0.25-pF, ±3.6-V, ±12-kV ESD protection diode for USB 3.0, HDMI 2.0 & High Speed Signals 10-USON -40 to 125

Part Details for TPD4E02B04DQAR by Texas Instruments

Results Overview of TPD4E02B04DQAR by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Computing and Data Storage

TPD4E02B04DQAR Information

TPD4E02B04DQAR by Texas Instruments is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
TPD4E02B04DQAR Texas Instruments 4-Channel ESD Protection Diode for USB Type-C and HDMI 2.0 10-USON -40 to 125

Price & Stock for TPD4E02B04DQAR

Part # Distributor Description Stock Price Buy
DISTI # 33AH5155
Newark Diode, Esd Protection, 3.6V, Uson-10, Clamping Voltage Vc Max:8.8V, Diode Case Style:Uson, No. Of Pins:10Pins, Operating Voltage:3.6V, Power Dissipation Pd:-, Product Range:Tpd4E Series, Automotive Qualification Standard:-, Svhc:No Rohs Compliant: Yes |Texas Instruments TPD4E02B04DQAR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 3713
  • 1 $0.6030
  • 10 $0.5150
  • 25 $0.4630
  • 50 $0.4100
  • 100 $0.3580
  • 250 $0.3180
  • 500 $0.2790
  • 1,000 $0.2270
$0.2270 / $0.6030 Buy Now
Bristol Electronics   444
RFQ
Bristol Electronics   Min Qty: 9 30
  • 9 $0.5625
$0.5625 Buy Now
Ameya Holding Limited USON 10/A°/4-Channel ESD Protection Diode for USB Type-C and HDMI 2.0 19
RFQ
Chip-Germany GmbH   RoHS: Not Compliant 61
RFQ
DISTI # C1S746203973511
Chip1Stop TVS RoHS: Compliant Container: Cut Tape 52
  • 5 $0.1710
  • 50 $0.1700
$0.1700 / $0.1710 Buy Now
CHIPMALL.COM LIMITED 5A 8.8V 17W 5.5V Bidirectional 3.6V USON-101x2.5 ESD and Surge Protection TVS/ESD ROHS 27614
  • 1 $0.0485
  • 10 $0.0445
  • 30 $0.0437
$0.0437 / $0.0485 Buy Now
LCSC 5A 8.8V 17W 5.5V Bidirectional 3.6V USON-10(1x2.5) ESD and Surge Protection (TVS/ESD) ROHS 32648
  • 5 $0.0638
  • 50 $0.0516
  • 150 $0.0453
  • 500 $0.0401
  • 3,000 $0.0383
  • 6,000 $0.0371
$0.0371 / $0.0638 Buy Now
Win Source Electronics TVS DIODE 3.6V 8.8V 10USON / 4-Channel ESD Protection Diode for USB Type-C and HDMI 2.0 126000
  • 550 $0.0915
  • 1,335 $0.0751
  • 2,065 $0.0728
  • 2,845 $0.0704
  • 3,675 $0.0681
  • 4,920 $0.0610
$0.0610 / $0.0915 Buy Now

Part Details for TPD4E02B04DQAR

TPD4E02B04DQAR CAD Models

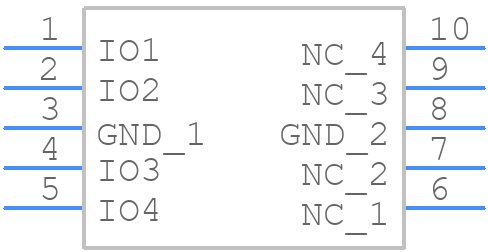

  • Part Symbol
