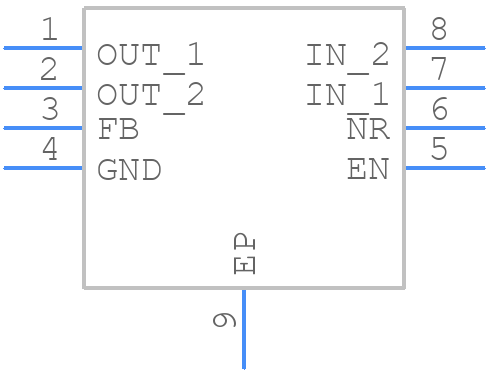

Part Symbol
-
Footprint
-

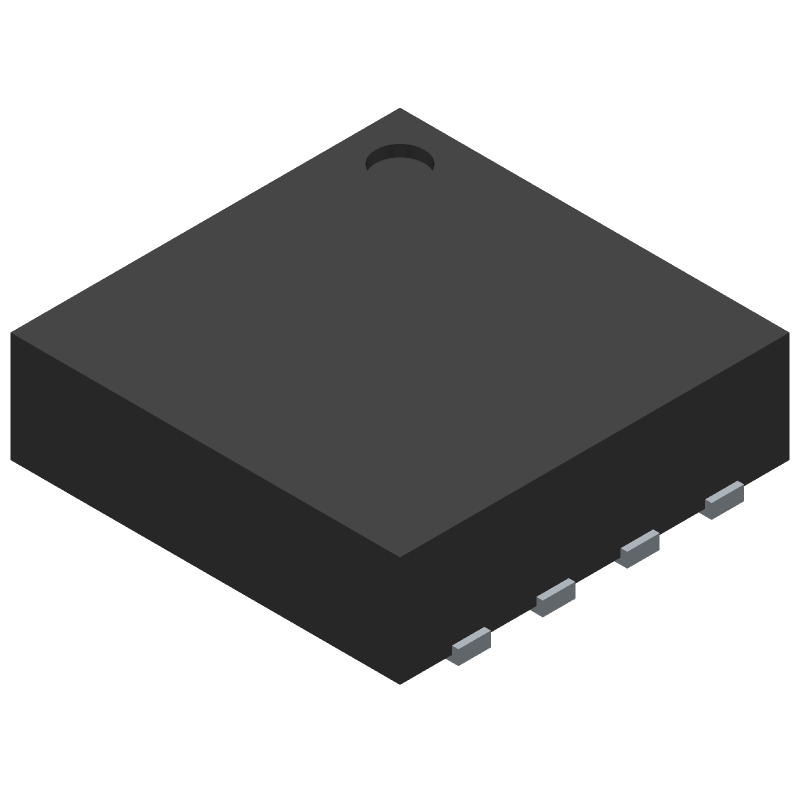

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TPL910ADJQ-DF6R-S by 3peak Incorporated
Results Overview of TPL910ADJQ-DF6R-S by 3peak Incorporated
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TPL910ADJQ-DF6R-S Information
TPL910ADJQ-DF6R-S by 3peak Incorporated is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Part Details for TPL910ADJQ-DF6R-S
TPL910ADJQ-DF6R-S CAD Models
TPL910ADJQ-DF6R-S Part Data Attributes
|
|
TPL910ADJQ-DF6R-S
3peak Incorporated
Buy Now
Datasheet
|
Compare Parts:
TPL910ADJQ-DF6R-S
3peak Incorporated
Linear Voltage Regulator IC Positive Adjustable 1 Output 8-DFN (3x3)
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Contact Manufacturer | |
| Ihs Manufacturer | 3PEAK INC | |
| Package Description | DFN-8 | |
| Reach Compliance Code | unknown | |
| Samacsys Manufacturer | 3Peak Incorporated | |
| Adjustability | ADJUSTABLE | |
| Dropout Voltage1-Max | 0.5 V | |
| Dropout Voltage1-Nom | 0.15 V | |
| JESD-30 Code | S-PDSO-N8 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature TJ-Max | 150 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current1-Max | 1 A | |
| Output Voltage1-Max | 5 V | |
| Output Voltage1-Min | 0.8 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Equivalence Code | SOLCC8,.12,25 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Packing Method | TR, 13 INCH | |
| Regulator Type | ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 0.9 mm | |
| Surface Mount | YES | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Width | 3 mm |
TPL910ADJQ-DF6R-S Frequently Asked Questions (FAQ)
-
The datasheet provides a recommended PCB layout for thermal vias and pad sizes. However, for optimal thermal performance, it's recommended to use a 4-layer PCB with a solid ground plane, and to place thermal vias under the IC to dissipate heat efficiently.
-
To ensure a stable output voltage during startup, it's recommended to add a soft-start circuit to limit the inrush current and prevent voltage overshoot. Additionally, a bulk capacitor at the input can help to reduce voltage droop during startup.
-
Although the datasheet specifies a maximum input voltage of 15V, it's recommended to derate the input voltage to 13.5V to ensure reliable operation and to prevent damage to the internal components.
-
While the device is rated for operation up to 125°C, it's essential to consider the junction temperature (Tj) and the power dissipation (PD) when operating in high-temperature environments. Ensure that the device is properly heatsinked, and the power dissipation is within the recommended limits to prevent thermal shutdown.
-
To adjust the output voltage accurately, use a precision resistor divider network with a tolerance of 1% or better. Additionally, consider using a voltage reference IC to provide a stable voltage source for the resistor divider network.
