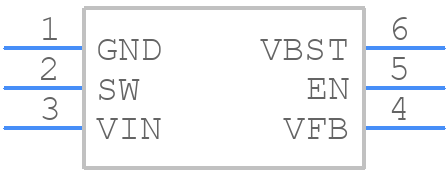

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TPS564201DDCR by Texas Instruments
Results Overview of TPS564201DDCR by Texas Instruments
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TPS564201DDCR Information
TPS564201DDCR by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TPS564201DDCR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
TPS564201DDCR
|
TME | PMIC, DC/DC converter, Uin: 4.5÷17VDC, Uout: 0.76÷7VDC, 4A, SMD Min Qty: 1 | 566 |
|
$0.5700 / $0.8700 | Buy Now |
|
|
Ameya Holding Limited | IC REG BUCK ADJ 4A SYNC 6SOT | 29362 |
|
RFQ | |
|
DISTI #
TPS564201DDCR
|
Chip One Stop | Semiconductors RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 2975 |
|
$0.3580 / $0.6440 | Buy Now |
|
|
LCSC | Step-down type Adjustable 4A 4.5V17V 760mV7V TSOT-23-6 DC-DC Converters ROHS | 28900 |
|
$0.0393 / $0.0774 | Buy Now |
|
|
Vyrian | Other Function Semiconductors | 109911 |
|
RFQ |
Part Details for TPS564201DDCR
TPS564201DDCR CAD Models
TPS564201DDCR Part Data Attributes
|
|
TPS564201DDCR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TPS564201DDCR
Texas Instruments
4.5 V to 17 V input, 4 A output, synchronous step-down converter in Eco-mode 6-SOT-23-THIN -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | TSOT-23, 6 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Date Of Intro | 2016-05-07 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | ALSO OPERATES IN ADJUSTABLE MODE FROM 0.76 TO 7V | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 17 V | |
| Input Voltage-Min | 4.5 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Length | 2.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 4 A | |
| Output Voltage-Max | 7 V | |
| Output Voltage-Min | 0.76 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.1 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 600 kHz | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.6 mm |
Alternate Parts for TPS564201DDCR
This table gives cross-reference parts and alternative options found for TPS564201DDCR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TPS564201DDCR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TPS54239EDDAR | Texas Instruments | $0.8493 | 4.5V to 23V Input, 2-A Synchronous Step-Down Converter with Eco-Mode 8-SO PowerPAD -40 to 85 | TPS564201DDCR vs TPS54239EDDAR |
| TPS54239DDA | Texas Instruments | $0.9472 | 4.5V to 23V Input, 2A Synchronous Step-Down Converter with D-CAP2 Mode 8-SO PowerPAD -40 to 85 | TPS564201DDCR vs TPS54239DDA |
| LM22670MR-ADJ/NOPB | Texas Instruments | $2.5922 | 4.5V to 42V, 3A SIMPLE SWITCHER® buck converter with frequency synchronization 8-SO PowerPAD -40 to 125 | TPS564201DDCR vs LM22670MR-ADJ/NOPB |
| LM22670MRE-ADJ | Texas Instruments | Check for Price | 5.5A SWITCHING REGULATOR, 600kHz SWITCHING FREQ-MAX, PDSO8, PLASTIC, SOP-8 | TPS564201DDCR vs LM22670MRE-ADJ |
| APW1173KAC-TRG | American Power Devices Inc | Check for Price | Switching Regulator, 4.3A, 600kHz Switching Freq-Max, PDSO8, GREEN, MS-012BA, SOP-8 | TPS564201DDCR vs APW1173KAC-TRG |
| TPS564201DDCT | Texas Instruments | Check for Price | 4.5 V to 17 V input, 4 A output, synchronous step-down converter in Eco-mode 6-SOT-23-THIN -40 to 125 | TPS564201DDCR vs TPS564201DDCT |
| LM22670QMRE-ADJ | Texas Instruments | Check for Price | 5.5A SWITCHING REGULATOR, 600kHz SWITCHING FREQ-MAX, PDSO8, PLASTIC, SOP-8 | TPS564201DDCR vs LM22670QMRE-ADJ |
| APW1173KAI-TRL | American Power Devices Inc | Check for Price | Switching Regulator, Voltage-mode, 4.3A, 600kHz Switching Freq-Max, PDSO8, LEAD FREE, MS-012BA, SOP-8 | TPS564201DDCR vs APW1173KAI-TRL |
| LM22670MRX-ADJ/NOPB | Texas Instruments | Check for Price | 4.5V to 42V, 3A SIMPLE SWITCHER® buck converter with frequency synchronization 8-SO PowerPAD -40 to 125 | TPS564201DDCR vs LM22670MRX-ADJ/NOPB |
| APW1173KAI-TRG | American Power Devices Inc | Check for Price | Switching Regulator, 4.3A, 600kHz Switching Freq-Max, PDSO8, GREEN, MS-012BA, SOP-8 | TPS564201DDCR vs APW1173KAI-TRG |
TPS564201DDCR Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the TPS564201DDCR is 18V, but it's recommended to keep it below 15V for optimal performance and reliability.
-
To ensure the stability of the output voltage, it's essential to use the recommended output capacitor (22μF ceramic capacitor) and to keep the input capacitor (10μF ceramic capacitor) close to the VIN pin. Additionally, make sure the PCB layout is well-designed to minimize noise and parasitic inductance.
-
The minimum input voltage required for the TPS564201DDCR to operate is 2.7V, but it's recommended to keep it above 3.3V for optimal performance.
-
The TPS564201DDCR is rated for operation up to 125°C, but it's essential to consider the thermal design and ensure proper heat dissipation to prevent overheating. It's recommended to keep the junction temperature below 125°C to ensure reliability and performance.
-
The output voltage of the TPS564201DDCR can be calculated using the following formula: VOUT = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors connected to the FB pin. The recommended resistor values are R1 = 10kΩ and R2 = 2.49kΩ for a 3.3V output voltage.
