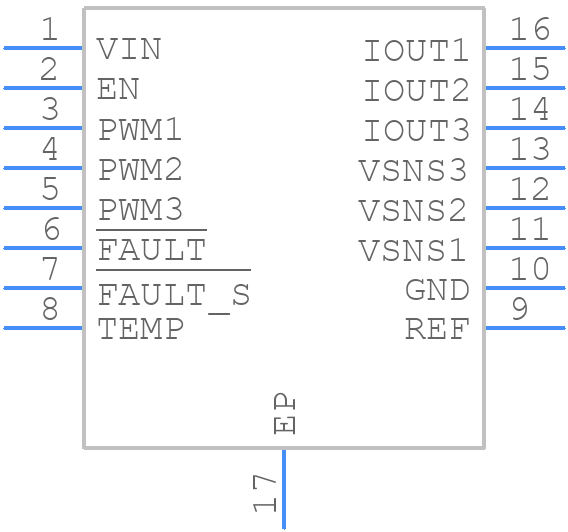

Part Symbol
-

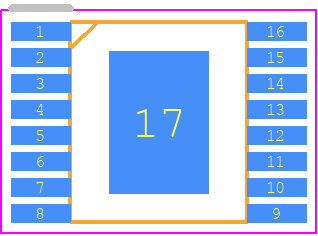

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TPS92630QPWPRQ1 by Texas Instruments
Results Overview of TPS92630QPWPRQ1 by Texas Instruments
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
TPS92630QPWPRQ1 Information
TPS92630QPWPRQ1 by Texas Instruments is a Display Driver.
Display Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for TPS92630QPWPRQ1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 2000 |
|
RFQ | ||
|
|
Chip 1 Exchange | INSTOCK | 7174 |
|
RFQ | |
|
|
LCSC | HTSSOP-16-EP LED Drivers ROHS | 40 |
|
$0.5461 / $1.0458 | Buy Now |
|
|
Vyrian | Interface ICs | 39207 |
|
RFQ | |
|
|
Win Source Electronics | Three-Channel Linear LED Driver With Analog and PWM Dimming | IC N-CH CTRLR LED DRVR 16HTSSOP | 62000 |
|
$0.4870 / $0.6290 | Buy Now |
Part Details for TPS92630QPWPRQ1
TPS92630QPWPRQ1 CAD Models
TPS92630QPWPRQ1 Part Data Attributes
|
|
TPS92630QPWPRQ1
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TPS92630QPWPRQ1
Texas Instruments
Automotive Three-channel Linear LED driver with Analog and PWM dimming 16-HTSSOP -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | HTSSOP-16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Interface IC Type | LED DISPLAY DRIVER | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 5 mm | |
| Moisture Sensitivity Level | 3 | |
| Multiplexed Display Capability | NO | |
| Number of Channels | 3 | |
| Number of Functions | 1 | |
| Number of Segments | 7 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HTSSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1.2 mm | |
| Supply Voltage-Max | 40 V | |
| Supply Voltage-Min | 5 V | |
| Supply Voltage-Nom | 14 V | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 mm |
