We use Cookies to give you best experience on our website. By using our website and services, you expressly agree to the placement of our performance, functionality and advertising cookies. Please see our Privacy Policy for more information.

Register or Sign In
Diodes / Transient Suppressors / TPSMB30A
Datasheets
TPSMB30A by:

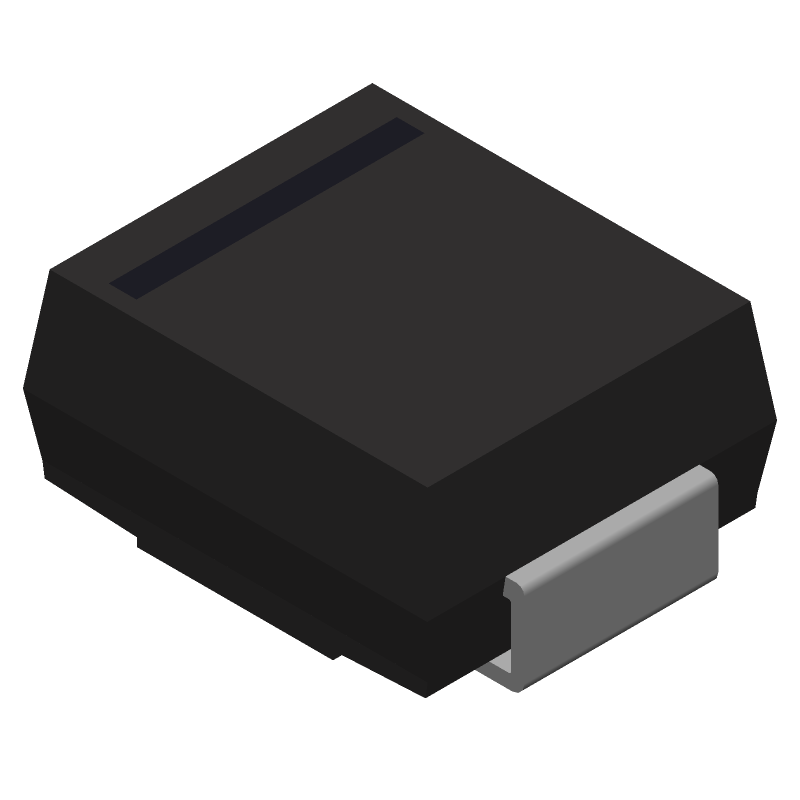

Trans Voltage Suppressor Diode, 600W, 25.6V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, SMB, 2 PIN

Part Details for TPSMB30A by Littelfuse Inc

Results Overview of TPSMB30A by Littelfuse Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Automotive

TPSMB30A Information

TPSMB30A by Littelfuse Inc is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for TPSMB30A

Part # Distributor Description Stock Price Buy
DISTI # 67AH3299
Newark Tvs Diode, Unidir, 25.6V, Do-214Aa Rohs Compliant: Yes |Littelfuse TPSMB30A RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape 2705
  • 1 $0.5980
  • 10 $0.3980
  • 25 $0.3550
  • 50 $0.3130
  • 100 $0.2700
  • 250 $0.2410
  • 500 $0.2120
  • 1,000 $0.1930
$0.1930 / $0.5980 Buy Now
DISTI # 94W9908
Newark Tvs Surf Mt Do214Aa Aeq101 Tr/ Tr |Littelfuse TPSMB30A RoHS: Not Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $0.2040
  • 5,000 $0.1990
  • 10,000 $0.1840
  • 20,000 $0.1710
  • 30,000 $0.1600
  • 50,000 $0.1530
$0.1530 / $0.2040 Buy Now
DISTI # TPSMB30A-LF
TME Diode: TVS, 600W, 30V, 14.7A, unidirectional, ±5%, DO214AA, TPSMB Min Qty: 1 0
  • 1 $0.4270
  • 100 $0.2620
  • 500 $0.1850
  • 1,000 $0.1620
  • 3,000 $0.1570
$0.1570 / $0.4270 RFQ
LCSC 14.7A 600W 41.4V 28.5V Unidirectional 25.6V SMB ESD and Surge Protection (TVS/ESD) ROHS 2705
  • 5 $0.1876
  • 50 $0.1659
  • 150 $0.1556
  • 500 $0.1442
  • 3,000 $0.1386
  • 6,000 $0.1358
$0.1358 / $0.1876 Buy Now

Part Details for TPSMB30A

TPSMB30A CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TPSMB30A Part Data Attributes

Parametric Data
TPSMB30A Littelfuse Inc
Buy Now Datasheet
Compare Parts:
TPSMB30A Littelfuse Inc Trans Voltage Suppressor Diode, 600W, 25.6V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, SMB, 2 PIN
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer LITTELFUSE INC
Package Description R-PDSO-J2
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8541.10.00.50
Samacsys Manufacturer LITTELFUSE
Additional Feature EXCELLENT CLAMPING CAPABILITY, HIGH RELIABILITY
Breakdown Voltage-Max 31.5 V
Breakdown Voltage-Min 28.5 V
Breakdown Voltage-Nom 30 V
Clamping Voltage-Max 41.4 V
Configuration SINGLE
Diode Element Material SILICON
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
Forward Voltage-Max (VF) 3.5 V
JEDEC-95 Code DO-214AA
JESD-30 Code R-PDSO-C2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Peak Rev Power Dis-Max 600 W
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 175 °C
Operating Temperature-Min -65 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity UNIDIRECTIONAL
Power Dissipation-Max 5 W
Reference Standard AEC-Q101; IEC-61000-4-2, 4-4; UL RECOGNIZED
Rep Pk Reverse Voltage-Max 25.6 V
Reverse Current-Max 1 µA
Reverse Test Voltage 25.6 V
Surface Mount YES
Technology AVALANCHE
Terminal Finish MATTE TIN
Terminal Form C BEND
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40

Alternate Parts for TPSMB30A

This table gives cross-reference parts and alternative options found for TPSMB30A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TPSMB30A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
P6SMB30AT3G Littelfuse Inc Check for Price Trans Voltage Suppressor Diode, 600W, 25.6V V(RWM), Unidirectional, 1 Element, Silicon, SMB, 2 PIN TPSMB30A vs P6SMB30AT3G
P6SMB30ABK Central Semiconductor Corp Check for Price Trans Voltage Suppressor Diode, 600W, 25.6V V(RWM), Unidirectional, 1 Element, Silicon, TPSMB30A vs P6SMB30ABK
P6SMBJ24-F World Products Inc Check for Price Trans Voltage Suppressor Diode, 600W, 24V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, ROHS COMPLIANT, PLASTIC PACKAGE-2 TPSMB30A vs P6SMBJ24-F
P6SMB30 SEMIKRON Check for Price Trans Voltage Suppressor Diode, 600W, 24.3V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, PLASTIC, SMB, 2 PIN TPSMB30A vs P6SMB30
P6FMBJ30-W Rectron Semiconductor Check for Price Trans Voltage Suppressor Diode, 600W, 24.3V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, PLASTIC PACKAGE-2 TPSMB30A vs P6FMBJ30-W
P6SMB30ATR13 Central Semiconductor Corp Check for Price Trans Voltage Suppressor Diode, 600W, 25.6V V(RWM), Unidirectional, 1 Element, Silicon, TPSMB30A vs P6SMB30ATR13
P6SMBJ24-T3-LF Won-Top Electronics Co Ltd Check for Price Trans Voltage Suppressor Diode, 600W, 24V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, ROHS COMPLIANT, PLASTIC, SMB, 2 PIN TPSMB30A vs P6SMBJ24-T3-LF
P6SMBJ30ATR World Products Inc Check for Price Trans Voltage Suppressor Diode, 600W, 30V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, PLASTIC PACKAGE-2 TPSMB30A vs P6SMBJ30ATR
1SMB30CAT3 onsemi Check for Price 600 Watt SMB Transient Voltage Suppressor, 30 V Bidirectional, SMB, 2500-REEL TPSMB30A vs 1SMB30CAT3
P6SMB30A-52 Vishay Semiconductors Check for Price Trans Voltage Suppressor Diode, 600W, 25.6V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, PLASTIC, SMB, 2 PIN TPSMB30A vs P6SMB30A-52

TPSMB30A Related Parts

Share by Email

Something went wrong!
Please enter a valid e-mail address
Email sent!
Recipient Email:
Add a recipient
Hello!

We are passing along some cool findings on Findchips sent to you from .

The data is for TPSMB30A by Littelfuse Inc.
They’ve also added a data comparison to this page with by .

Click on the link below to check it out on Findchips.com.

Update Alert Settings for: TPSMB30A by Littelfuse Inc

Select Manufacturer
Which Manufacturer of TPSMB30A would you like to use for your alert(s)?
Inventory Alert
  • Please alert me when TPSMB30A inventory levels are or equal to a quantity of from one of my selected distributors.
  • Also alert me for TPSMB30A alternates
    An alert is already set for the following part(s): . Any existing alert will be overwritten and set as a new alert.
No pricing information is available at this time
Pricing Alert
  • Please alert me when the single part price for TPSMB30A to
    $
    for at least parts from one of my selected distributors.
    Your Pricing Alert is set to expire on .
    Set this alert to expire in Update this alert to expire · Expired on
  • Also alert me for TPSMB30A alternates
    An alert is already set for the following part(s): . Any existing alert will be overwritten and set as a new alert.

Your part alert has been saved!

Alerts are triggered based off of individual distributors that you choose. Select your distributor(s) below.

Your part alert has been saved!

Register
Password Guidelines

Is at least 8 characters in length

Must include at least 3 of the following:

One lower-case character (a-z)

One upper-case character (A-Z)

One numeric character (0-9)

One special character (!#$%^&*)

Alert is successfully saved for TPSMB30A.
Looks like you've reached your alert limit!  Please delete some alerts or contact us if you need help.

Compare TPSMB30A by Littelfuse Inc

Select a part to compare:
Part Number Manufacturer Description
No result found.
Something went wrong!
Or search for a different part:
