TSM-105-01-L-DV-P-TR by: Samtec Inc

Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle,

Part Details for TSM-105-01-L-DV-P-TR by Samtec Inc

Results Overview of TSM-105-01-L-DV-P-TR by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

TSM-105-01-L-DV-P-TR Information

TSM-105-01-L-DV-P-TR by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for TSM-105-01-L-DV-P-TR

Part # Distributor Description Stock Price Buy
DISTI # 45AJ8852
Newark Conn, Header, 10Pos, 2Row, 2.54Mm, Connector Systems:Board-To-Board, Pitch Spacing:2.54Mm, No. Of Rows:2Rows, No. Of Contacts:10Contacts, Contact Termination Type:Surface Mount, Product Range:Tsm Series, Connector Shroud:Unshrouded Rohs Compliant: Yes |Samtec TSM-105-01-L-DV-P-TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 226
  • 1 $1.6300
  • 10 $1.5700
  • 50 $1.5200
  • 100 $1.4600
  • 250 $1.3400
  • 500 $1.2000
  • 1,000 $1.0900
$1.0900 / $1.6300 Buy Now
DISTI # 45P5170
Newark Connector, Header, 10 Position, 2Row, 2.54Mm, Connector Systems:Board-To-Board, Pitch Spacing:2.54Mm, No. Of Rows:2Rows, No. Of Contacts:10Contacts, Contact Termination Type:Surface Mount, Product Range:Tsm Series Rohs Compliant: Yes |Samtec TSM-105-01-L-DV-P-TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $1.6300
$1.6300 Buy Now
DISTI # TSM-105-01-L-DV-P-TR
Avnet Americas Pin Header, Board-to-Board, 2.54 mm, 2 Rows, 10 Contacts, Surface Mount, TSM Series - Tape and Reel (Alt: TSM-105-01-L-DV-P-TR) RoHS: Compliant Min Qty: 1500 Package Multiple: 150 Lead time: 1 Weeks, 0 Days Container: Reel 1050
19485 Factory Stock
  • 1,500 $0.8238
  • 1,800 $0.7980
  • 3,300 $0.7353
  • 7,500 $0.6048
  • 15,000 $0.5952
$0.5952 / $0.8238 Buy Now
Bristol Electronics   365
RFQ
Bristol Electronics   150
RFQ
Ameya Holding Limited CONN HEADER SMD 10POS 2.54MM 2443
RFQ
Powell Electronics .100 Surf Mnt Terminal Strip Min Qty: 1 12860
  • 1 $1.6800
  • 150 $1.4500
  • 300 $1.3200
  • 600 $1.1300
  • 1,050 $0.8800
$0.8800 / $1.6800 Buy Now
DISTI # 000000000000063494
Sager Headers & Wire Housings .100 Surface Mount Terminal Strip Min Qty: 1 18735
  • 1 $1.6800
  • 150 $1.4500
  • 300 $1.3200
  • 600 $1.1300
  • 1,050 $0.8800
  • 2,550 $0.7700
$0.7700 / $1.6800 Buy Now
DISTI # TSM-105-01-L-DV-P-TR
Avnet Abacus Pin Header BoardtoBoard 254 mm 2 Rows 10 Contacts Surface Mount TSM Series (Alt: TSM-105-01-L-DV-P-TR) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 3 Weeks, 0 Days Abacus - 8150
Buy Now
DISTI # TSM-105-01-L-DV-P-TR
Avnet Abacus Pin Header BoardtoBoard 254 mm 2 Rows 10 Contacts Surface Mount TSM Series - Tape and Reel (Alt: TSM-105-01-L-DV-P-TR) RoHS: Compliant Min Qty: 150 Package Multiple: 150 Lead time: 9 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
DISTI # TSM-105-01-L-DV-P-TR
Avnet Asia Pin Header, Board-to-Board, 2.54 mm, 2 Rows, 10 Contacts, Surface Mount, TSM Series (Alt: TSM-105-01-L-DV-P-TR) RoHS: Compliant Min Qty: 150 Package Multiple: 150 Lead time: 3 Weeks, 0 Days 0
RFQ
DISTI # TSM-105-01-L-DV-P-TR
Chip One Stop Interconnects RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape 855
  • 1 $1.4700
  • 10 $1.1200
  • 50 $1.1100
  • 100 $1.0800
  • 3,000 $0.9830
$0.9830 / $1.4700 Buy Now
LCSC Pin Headers ROHS 124
  • 1 $1.7142
  • 10 $1.4560
  • 30 $1.2930
  • 150 $1.1270
  • 450 $1.0516
  • 1,050 $1.0193
$1.0193 / $1.7142 Buy Now
New Advantage Corporation Terminal Strip, 2x05 pos. pitch 2.54mm, SMD, T&R, vertical Pin RoHS: Compliant Min Qty: 1 Package Multiple: 1 7680
  • 208 $1.1600
  • 7,680 $1.0700
$1.0700 / $1.1600 Buy Now
Vyrian Connectors 13339
RFQ

Part Details for TSM-105-01-L-DV-P-TR

TSM-105-01-L-DV-P-TR CAD Models

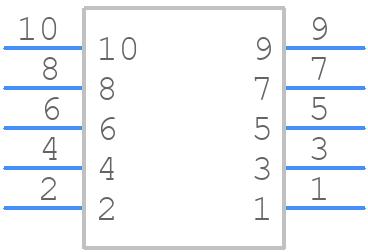

  • Part Symbol

    Part Symbol

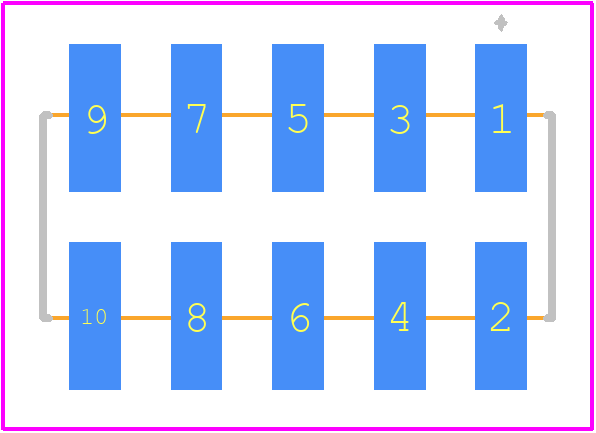

  • Footprint
