Drivers And Interfaces / Other Interface ICs / TUSB4041IPAPR
Datasheets
TUSB4041IPAPR by: Texas Instruments

4-port high-speed 480-Mbps USB 2.0 hub 64-HTQFP -40 to 85

Part Details for TUSB4041IPAPR by Texas Instruments

Results Overview of TUSB4041IPAPR by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

TUSB4041IPAPR Information

TUSB4041IPAPR by Texas Instruments is an Other Interface IC.
Other Interface ICs are under the broader part category of Drivers And Interfaces.

A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
TUSB4041IPAPRQ1 Texas Instruments Automotive 4-port high-speed 480-Mbps USB 2.0 hub 64-HTQFP -40 to 85
TUSB4041IPAPR Texas Instruments 4-port high-speed 480-Mbps USB 2.0 hub 64-HTQFP -40 to 85

Price & Stock for TUSB4041IPAPR

Part # Distributor Description Stock Price Buy
DISTI # 28AH6281
Newark Usb 2.0 Hub, 480Mbps, Htqfp-64, Usb Ic Type:Usb Hub Controller, Usb Standard:Usb 2.0, Supply Voltage Min:3Mv, Supply Voltage Max:3.6V, Interface Case Style:Htqfp, No. Of Pins:64Pins, Data Rate:480Mbps, No. Of Ports:4 Port, Operating Rohs Compliant: Yes |Texas Instruments TUSB4041IPAPR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 79
  • 1 $4.6800
  • 10 $4.6800
  • 25 $4.6800
  • 50 $4.6800
  • 100 $4.6800
  • 250 $4.6800
  • 500 $4.6800
  • 1,000 $4.6800
$4.6800 Buy Now
Bristol Electronics   46
RFQ
Ameya Holding Limited IC USB 2.0 4PORT HUB 64HTQFP 151775
RFQ
Chip-Germany GmbH   RoHS: Not Compliant 381
RFQ
Win Source Electronics IC USB 2.0 4PORT HUB 64HTQFP / Four-Port USB 2.0 Hub 7299
  • 12 $4.5386
  • 27 $3.7240
  • 42 $3.6077
  • 58 $3.4913
  • 75 $3.3749
  • 100 $3.0258
$3.0258 / $4.5386 Buy Now

Part Details for TUSB4041IPAPR

TUSB4041IPAPR CAD Models

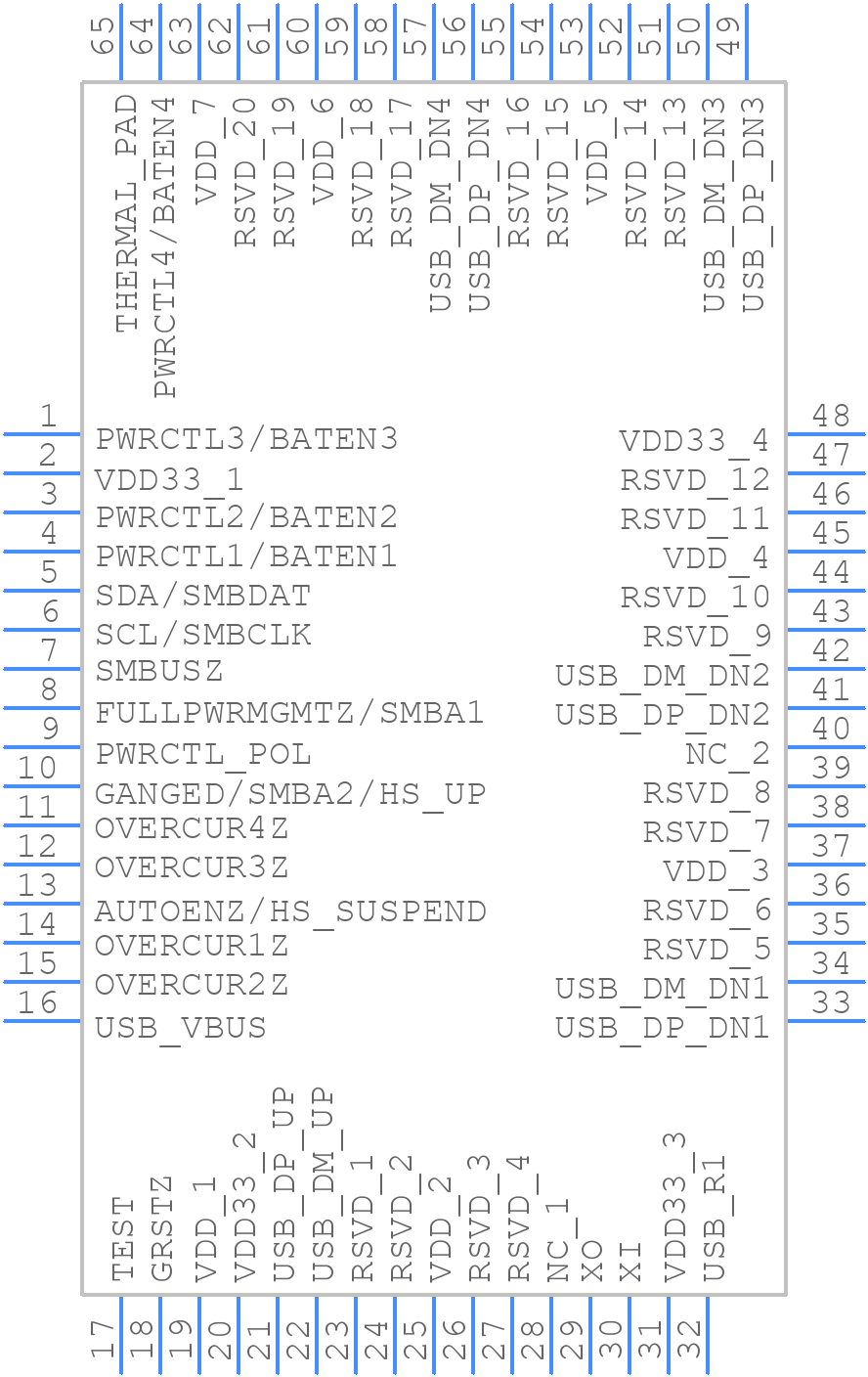

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TUSB4041IPAPR Part Data Attributes

Parametric Data
TUSB4041IPAPR Texas Instruments
Buy Now Datasheet
Compare Parts:
TUSB4041IPAPR Texas Instruments 4-port high-speed 480-Mbps USB 2.0 hub 64-HTQFP -40 to 85
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Package Description HTQFP-64
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Texas Instruments

TUSB4041IPAPR Related Parts

TUSB4041IPAPR Frequently Asked Questions (FAQ)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the high-speed signals away from the power planes and use a 50-ohm impedance-controlled trace for the USB signals.

  • Use a shielded USB connector, keep the USB traces away from the PCB edge, and add a common-mode filter (e.g., a ferrite bead) to the USB lines. Also, ensure the PCB layout follows good EMI design practices.

  • The TUSB4041IPAPR supports USB 2.0 high-speed signals up to 3 meters (10 feet) in length, but this can vary depending on the cable quality and the specific application.

  • The TUSB4041IPAPR requires a 3.3V power supply. Use a low-dropout linear regulator (LDO) or a switching regulator to ensure a stable voltage supply. Add decoupling capacitors close to the device to filter out noise.

  • The TUSB4041IPAPR has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink or thermal pad if the device is expected to operate in high-temperature environments.
