Relays / Power/Signal Relays / TX2-5V-TH
Datasheets
TX2-5V-TH by: Panasonic Electronic Components

Power/Signal Relay, DPDT, Momentary, 0.028A (Coil), 5VDC (Coil), 140mW (Coil), 7.5A (Contact), 220VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT

Part Details for TX2-5V-TH by Panasonic Electronic Components

Results Overview of TX2-5V-TH by Panasonic Electronic Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

TX2-5V-TH Information

TX2-5V-TH by Panasonic Electronic Components is a Power/Signal Relay.
Power/Signal Relays are under the broader part category of Relays.

A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.

Price & Stock for TX2-5V-TH

Part # Distributor Description Stock Price Buy
DISTI # 29X4078
Newark Tx Relay Th Typ |Panasonic TX2-5V-TH RoHS: Not Compliant Min Qty: 40 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 25 $3.8200
  • 50 $3.5000
  • 100 $3.1200
  • 500 $2.8400
  • 1,000 $2.5100
  • 2,500 $2.3300
$2.3300 / $3.8200 Buy Now
DISTI # TX2-5V-TH
Avnet Americas Relay Signal DPDT 250VAC 5VDC PC Pin Through Hole Tube - Rail/Tube (Alt: TX2-5V-TH) RoHS: Not Compliant Min Qty: 40 Package Multiple: 40 Lead time: 18 Weeks, 0 Days Container: Tube 0
  • 40 $2.5363
  • 80 $2.4850
  • 160 $2.4500
  • 240 $2.3800
  • 320 $2.3275
$2.3275 / $2.5363 Buy Now
DISTI # 74614126
RS Signal RelayTX Relay TH Type | Panasonic Electronic Components TX2-5V-TH RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Bulk 20
  • 1 $4.1100
  • 10 $3.9900
  • 25 $3.9100
  • 50 $3.8200
  • 100 $3.7400
$3.7400 / $4.1100 Buy Now
Bristol Electronics   Min Qty: 2 117
  • 2 $4.0320
  • 8 $2.6208
  • 21 $2.0160
  • 64 $1.8817
$1.8817 / $4.0320 Buy Now
DISTI # 000000000007255291
Sager PCB RELAYS MINIATURE THROUGH HOLE Min Qty: 40 0
  • 40 $2.6900
  • 160 $2.5700
  • 280 $2.5000
  • 560 $2.4300
  • 1,160 $2.3300
$2.3300 / $2.6900 Buy Now
Vyrian Relays 125
RFQ

Part Details for TX2-5V-TH

TX2-5V-TH CAD Models

  • Part Symbol

    Part Symbol

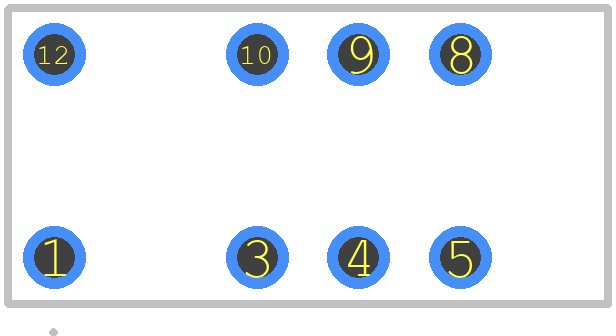

  • Footprint

    footprint

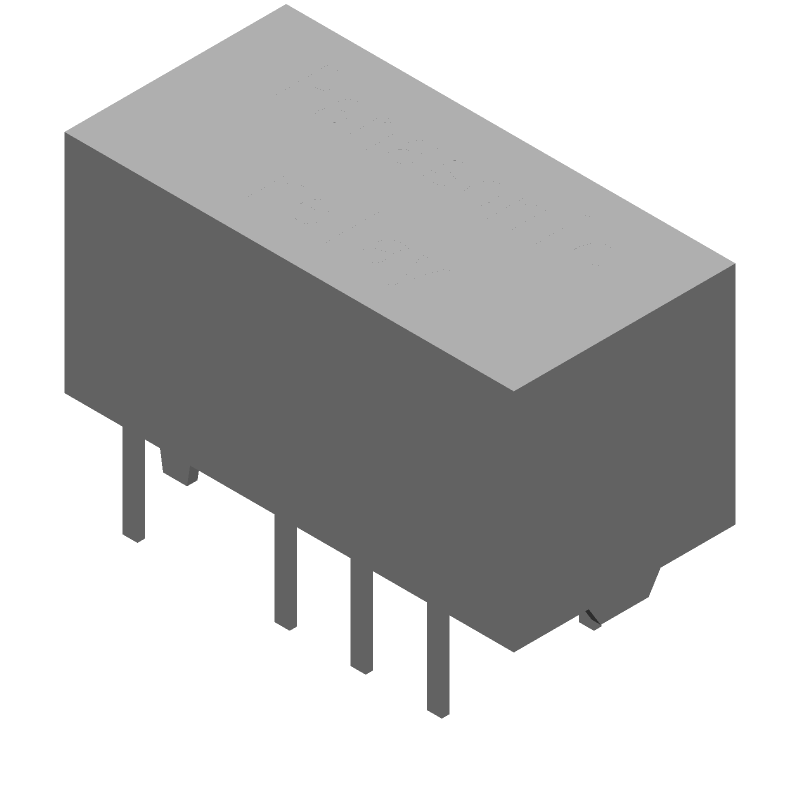

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TX2-5V-TH Part Data Attributes

Parametric Data
TX2-5V-TH Panasonic Electronic Components
Buy Now Datasheet
Compare Parts:
TX2-5V-TH Panasonic Electronic Components Power/Signal Relay, DPDT, Momentary, 0.028A (Coil), 5VDC (Coil), 140mW (Coil), 7.5A (Contact), 220VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer PANASONIC CORP
Package Description ROHS COMPLIANT
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.49.00.50
Factory Lead Time 18 Weeks
Samacsys Manufacturer Panasonic
Body Breadth 7.4 mm
Body Height 8.2 mm
Body Length or Diameter 15 mm
Coil Current(DC)-Max 0.028 A
Coil Operate Voltage(DC) 3.75 V
Coil Power 140 mW
Coil Release Voltage(DC) 0.5 V
Coil Resistance 178 Ω
Coil Voltage(DC)-Max 5 V
Coil/Input Supply Type DC
Contact (AC) Max Rating R Load 7.5A@250VAC
Contact Current(AC)-Max 7.5 A
Contact Current(DC)-Max 7.5 A
Contact (DC) Max Rating R Load 7.5A@220VDC
Contact Voltage(AC)-Max 250 V
Contact Voltage(DC)-Max 220 V
Contact/Output Supply Type AC/DC
Electrical Life 100000 Cycle(s)
Mounting Feature THROUGH HOLE-STRAIGHT
Operate Time 4 ms
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Packing Method BOX; TUBE
Physical Dimension 15mm x 7.4mm x 8.2mm
Reference Standard BSI; CSA; UL
Relay Action MOMENTARY
Relay Function DPDT
Relay Type POWER/SIGNAL RELAY
Release Time 4 ms
Sealing WATER PROOF
Surface Mount NO
Termination Type SOLDER

Alternate Parts for TX2-5V-TH

This table gives cross-reference parts and alternative options found for TX2-5V-TH. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TX2-5V-TH, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
TX2-5V-1-X Panasonic Electronic Components Check for Price Electromechanical Relay, DPDT, 7.5VDC (Coil), 1A (Contact), 220VDC (Contact), Random, DC Output TX2-5V-TH vs TX2-5V-1-X
TX2-5V-TH-Z Panasonic Electronic Components Check for Price Electromechanical Relay, DPDT, 7.5VDC (Coil), 7.5A (Contact), 220VDC (Contact), Random, AC/DC Output TX2-5V-TH vs TX2-5V-TH-Z

TX2-5V-TH Related Parts

TX2-5V-TH Frequently Asked Questions (FAQ)

  • The recommended storage condition for TX2-5V-TH is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -40°C to 125°C and humidity below 70%.

  • To prevent damage during assembly, handle the TX2-5V-TH by the body, avoid touching the leads, and use an anti-static wrist strap or mat to prevent electrostatic discharge.

  • The maximum allowable voltage for the TX2-5V-TH is 6V, exceeding which may cause damage to the device.

  • While the TX2-5V-TH can operate up to 125°C, it's recommended to derate the voltage and current ratings at high temperatures to ensure reliable operation and prevent thermal runaway.

  • To prevent damage during soldering, use a soldering iron with a temperature below 350°C, and avoid applying excessive force or vibration to the device.
