UCC28C40D by: Texas Instruments

Industrial, 20-V, low-power current-mode PWM controller, 7-V/6.6-V UVLO, 100% duty cycle 8-SOIC -40 to 125

Part Details for UCC28C40D by Texas Instruments

Results Overview of UCC28C40D by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

UCC28C40D Information

UCC28C40D by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
UCC28C40DR Texas Instruments BiCMOS Low-Power Current Mode PWM Controller 8-SOIC -40 to 105
UCC28C40DGK Texas Instruments BiCMOS Low-Power Current Mode PWM Controller 8-VSSOP -40 to 105
UCC28C40DGKR Texas Instruments BiCMOS Low-Power Current Mode PWM Controller 8-VSSOP -40 to 85

Price & Stock for UCC28C40D

Part # Distributor Description Stock Price Buy
DISTI # UCC28C40D
TME IC: PMIC, PWM controller, 0.2A, 1MHz, SO8, 7÷18V, 0÷96%, tube, SMPS Min Qty: 1 0
  • 1 $1.6600
  • 5 $1.4900
  • 25 $1.3200
  • 75 $1.1900
$1.1900 / $1.6600 RFQ
Ameya Holding Limited SOIC 8/I°/BICMOS LOW-POWER CURRENT MODE PWM CONTROLLER 20
RFQ
ComSIT USA BICMOS LOW-POWER CURRENT-MODE PWM CONTROLLER Switching Controller, Current-mode, 1A, 1000kHz Switching Freq-Max, BICMOS, PDSO8 RoHS: Not Compliant ECCN: EAR99 Stock DE - 1408
Stock ES - 0
Stock US - 0
Stock MX - 0
Stock CN - 0
Stock HK - 0
RFQ
Vyrian Other Function Semiconductors 177
RFQ
Win Source Electronics BICMOS LOW POWER CURRENT MODE PWM CONTROLLER | IC REG CTRLR MULT TOPOLOGY 8SOIC 285860
  • 90 $0.5840
  • 185 $0.5470
  • 285 $0.5280
  • 410 $0.4900
  • 535 $0.4710
  • 665 $0.4530
$0.4530 / $0.5840 Buy Now

Part Details for UCC28C40D

UCC28C40D CAD Models

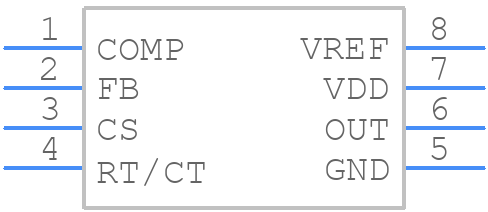

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

UCC28C40D Part Data Attributes

Parametric Data
UCC28C40D Texas Instruments
Buy Now Datasheet
Compare Parts:
UCC28C40D Texas Instruments Industrial, 20-V, low-power current-mode PWM controller, 7-V/6.6-V UVLO, 100% duty cycle 8-SOIC -40 to 125
Rohs Code No
Part Life Cycle Code Obsolete
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code SOIC
Pin Count 8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Texas Instruments
Additional Feature ALSO OPERATES IN CURRENT MODE
Analog IC - Other Type SWITCHING CONTROLLER
Control Mode CURRENT-MODE
Control Technique PULSE WIDTH MODULATION
Input Voltage-Max 18 V
Input Voltage-Min 12 V
Input Voltage-Nom 15 V
JESD-30 Code R-PDSO-G8
JESD-609 Code e4
Length 4.9 mm
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 8
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
Output Current-Max 1 A
Output Voltage-Max 18 V
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Supply Current-Max (Isup) 3 mA
Supply Voltage-Max (Vsup) 18 V
Supply Voltage-Min (Vsup)
Surface Mount YES
Switcher Configuration BUCK-BOOST
Switching Frequency-Max 1000 kHz
Technology BICMOS
Temperature Grade INDUSTRIAL
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Width 3.9 mm
