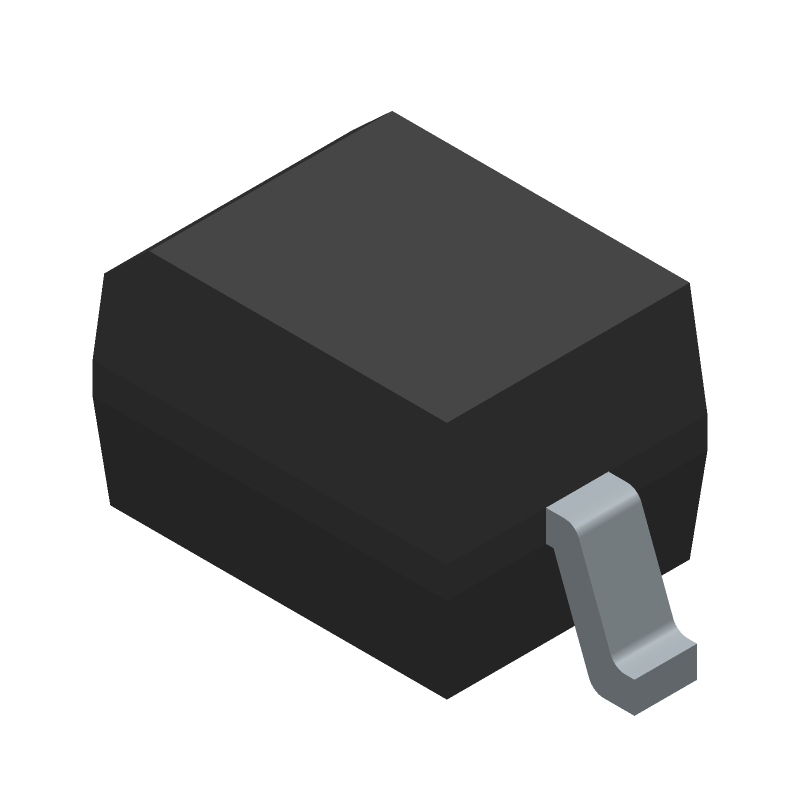

Part Details for UDD32C03L01 by YAGEO Corporation
Results Overview of UDD32C03L01 by YAGEO Corporation
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
UDD32C03L01 Information
UDD32C03L01 by YAGEO Corporation is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for UDD32C03L01
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK9716
|
Newark | Esd Protection Device, 15V, Sod-323, Clamping Voltage Vc Max:15V, Diode Case Style:Sod-323, No. Of Pins:2Pins, Operating Voltage:3V, Power Dissipation Pd:350W, Product Range:-, Automotive Qualification Standard:- Rohs Compliant: Yes |Yageo UDD32C03L01 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 12413 |
|
$0.0440 | Buy Now |
|
DISTI #
60AK9717
|
Newark | Esd Protection Device, 15V, Sod-323, Clamping Voltage Vc Max:15V, Diode Case Style:Sod-323, No. Of Pins:2Pins, Operating Voltage:3V, Power Dissipation Pd:350W, Product Range:-, Automotive Qualification Standard:- Rohs Compliant: Yes |Yageo UDD32C03L01 RoHS: Compliant Min Qty: 15000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0510 / $0.0720 | Buy Now |
|
DISTI #
UDD32C03L01
|
Avnet Americas | ESD Suppressor TVS Array Dual Bi-Dir ?15kV 2-Pin SOD-323 T/R - Tape and Reel (Alt: UDD32C03L01) RoHS: Compliant Min Qty: 15000 Package Multiple: 3000 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
$0.0422 / $0.0431 | Buy Now |
|
DISTI #
UDD32C03L01
|
TME | Diode: TVS, 0.35kW, 4V, 19A, bidirectional, SOD323, reel,tape Min Qty: 1 | 0 |
|
$0.0582 / $0.4617 | RFQ |
|
DISTI #
UDD32C03L01
|
Avnet Abacus | ESD Suppressor TVS Array Dual BiDir 15kV 2Pin SOD323 TR (Alt: UDD32C03L01) RoHS: Compliant Min Qty: 15000 Package Multiple: 3000 Lead time: 34 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
|
Win Source Electronics | TVS DIODE 3.3VWM 15VC SOD323 | 97857 |
|
$0.0236 / $0.0353 | Buy Now |
Part Details for UDD32C03L01
UDD32C03L01 CAD Models
UDD32C03L01 Part Data Attributes
|
|
UDD32C03L01
YAGEO Corporation
Buy Now
Datasheet
|
Compare Parts:
UDD32C03L01
YAGEO Corporation
Trans Voltage Suppressor Diode,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | YAGEO CORP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 111 Weeks | |
| Date Of Intro | 2018-11-05 | |
| Samacsys Manufacturer | YAGEO | |
| Additional Feature | ULTRA LOW CAPACITANCE | |
| Breakdown Voltage-Min | 4 V | |
| Clamping Voltage-Max | 15 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JESD-30 Code | R-PDSO-G2 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Polarity | BIDIRECTIONAL | |
| Reference Standard | IEC-61000-4-2, 4-4, 4-5 | |
| Rep Pk Reverse Voltage-Max | 3.3 V | |
| Reverse Current-Max | 5 µA | |
| Reverse Test Voltage | 3.3 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
UDD32C03L01 Frequently Asked Questions (FAQ)
-
The recommended land pattern for UDD32C03L01 is a rectangular pad with a size of 1.5mm x 0.8mm, with a non-solder mask defined (NSMD) pad shape.
-
To handle thermal considerations, ensure a good thermal connection to a heat sink or a thermal pad, and consider using thermal interface material (TIM) to reduce thermal resistance.
-
The maximum operating temperature range for UDD32C03L01 is -55°C to 150°C, but it's recommended to operate within -40°C to 125°C for optimal performance and reliability.
-
Yes, UDD32C03L01 is designed to withstand vibrations up to 10G, but it's recommended to follow proper mounting and soldering techniques to ensure reliability in high-vibration environments.
-
To ensure reliability in humid environments, follow proper storage and handling procedures, and consider using moisture-resistant coatings or conformal coatings to protect the component.
