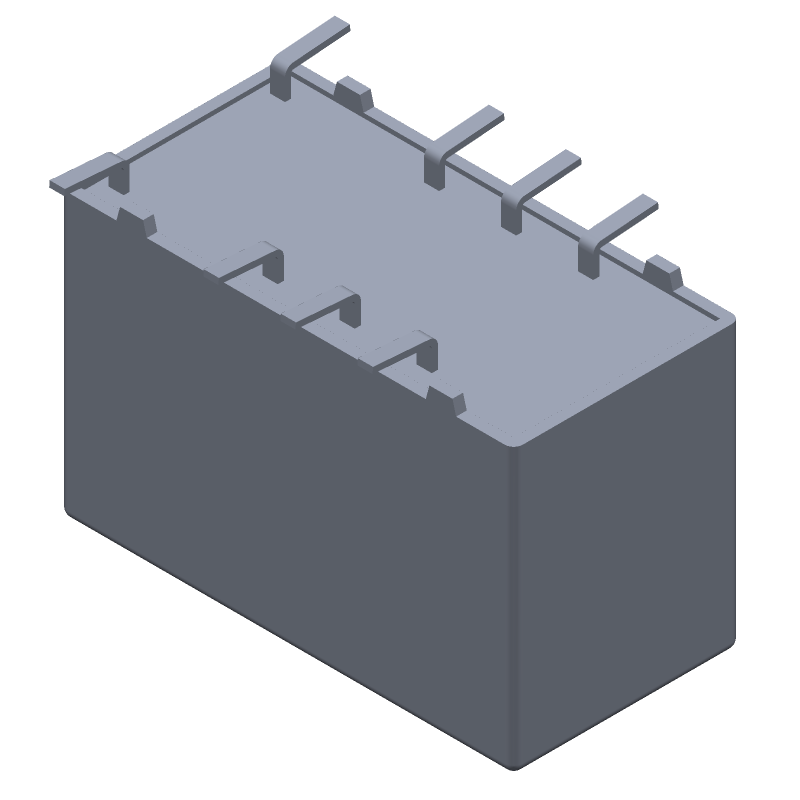

RF RELAY, DPDT, LATCHED, 0.014A (COIL), 5VDC (COIL), 70mW (COIL), 2A (CONTACT), 220VDC (CONTACT), 900MHz, SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT

Part Details for V23079F1101B301 by TE Connectivity

Results Overview of V23079F1101B301 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

V23079F1101B301 Information

V23079F1101B301 by TE Connectivity is an RF Relay.
RF Relays are under the broader part category of Relays.

A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.

Price & Stock for V23079F1101B301

Part # Distributor Description Stock Price Buy
DISTI # 16H4396
Newark Relay, Signal, Dpdt, 250Vac, 220Vdc, 2A, Coil Voltage:5Vdc, Contact Configuration:Dpdt, Contact Current:2A, Product Range:P2/V23079 Series, Relay Mounting:Surface Mount, Coil Type:Latching Single Coil, Relay Terminals:Solder Rohs Compliant: Yes |Axicom Te Connectivity V23079F1101B301 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 32
  • 1 $0.6900
  • 10 $0.6900
  • 25 $0.6900
  • 50 $0.6900
  • 100 $0.6900
  • 250 $0.6900
$0.6900 Buy Now
DISTI # 48M8969
Newark V23079F1101B301 |Axicom Te Connectivity V23079F1101B301 RoHS: Not Compliant Min Qty: 400 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 400 $3.3600
  • 800 $3.2100
$3.2100 / $3.3600 Buy Now
DISTI # 7-1393788-3
Avnet Americas Electromechanical Relay DPDT 2A 5VDC 357Ohm Surface Mount - Tape and Reel (Alt: 7-1393788-3) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 23 Weeks, 6 Days Container: Reel 2000 Factory Stock
  • 2,000 $2.5195
  • 4,000 $2.4541
  • 8,000 $1.9919
  • 12,000 $1.6801
  • 16,000 $1.6471
$1.6471 / $2.5195 Buy Now
DISTI # 16H4396
Avnet Americas Electromechanical Relay DPDT 2A 5VDC 357Ohm Surface Mount - Product that comes on tape, but is not reeled (Alt: 16H4396) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 25 Weeks, 6 Days Container: Ammo Pack 0
  • 1 $3.4200
$3.4200 Buy Now
DISTI # V23079F1101B301
TME Relay: electromagnetic, DPDT, Ucoil: 5VDC, 2A, 0.5A/125VAC, P2, SMT Min Qty: 1 0
  • 1 $2.4600
  • 5 $2.2200
  • 25 $1.8500
  • 100 $1.7200
  • 400 $1.6100
$1.6100 / $2.4600 RFQ
DISTI # 000000000002454376
Sager Low Signal Relays - PCB Relay DPDT 5A 5VDC 357Ohm Surface Mount Min Qty: 400 0
  • 400 $3.2300
$3.2300 Buy Now

Part Details for V23079F1101B301

V23079F1101B301 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

V23079F1101B301 Part Data Attributes

Parametric Data
V23079F1101B301 TE Connectivity
Buy Now Datasheet
Compare Parts:
V23079F1101B301 TE Connectivity RF RELAY, DPDT, LATCHED, 0.014A (COIL), 5VDC (COIL), 70mW (COIL), 2A (CONTACT), 220VDC (CONTACT), 900MHz, SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TE CONNECTIVITY LTD
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.49.00.50
Factory Lead Time 25 Weeks, 6 Days
Samacsys Manufacturer TE Connectivity
Body Breadth 7.2 mm
Body Height 10.4 mm
Body Length or Diameter 14.5 mm
Coil Current(DC)-Max 0.014 A
Coil Operate Voltage(DC) 3.75 V
Coil Power 727 mW
Coil Release Voltage(DC) 0.5 V
Coil Resistance 357 Ω
Coil Voltage(AC)-Max 220 V
Coil Voltage(DC)-Max 5 V
Coil Voltage-Nom 5 V
Coil/Input Supply Type DC
Contact (AC) Max Power Rating R Load 62.5VA@250VAC
Contact (AC) Max Rating R Load 2A@250VAC
Contact Current(AC)-Max 2 A
Contact Current(DC)-Max 2 A
Contact (DC) Max Power Rating R Load 60W@220VDC
Contact (DC) Max Rating R Load 2A@220VDC
Contact Resistance 50 mΩ
Contact Voltage(AC)-Max 250 V
Contact Voltage(DC)-Max 220 V
Contact/Output Supply Type AC/DC
Dielectric Strength Between Coil and Contacts 1500 Vrms
Dielectric Strength Between Open Contacts 1000 Vrms
Electrical Life 200000 Cycle(s)
End Contact Material NICKEL
End Contact Plating GOLD
Input Switching Control Type Random
Insertion Loss-Max -0.27 dB
Insulation Resistance 1000000000 Ω
Isolation-Max -20.7 dB
Mounting Feature PANEL MOUNT
Number of Terminals 10
Operate Time 8 ms
Operating Frequency-Max 900 MHz
Operating Frequency-Min 100 MHz
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Packing Method TR
Physical Dimension 15mm x 7.5mm x 10.4mm
Reference Standard CSA; UL
Relay Action LATCHED
Relay Form 2 FORM C
Relay Function DPDT
Relay Type RF RELAY
Release Time 8 ms
Sealing IP67
Surface Mount NO
Switching Time 16 ms
Termination Type SOLDER/QUICK CONNECT
VSWR 1.4
Weight 2.8 g
