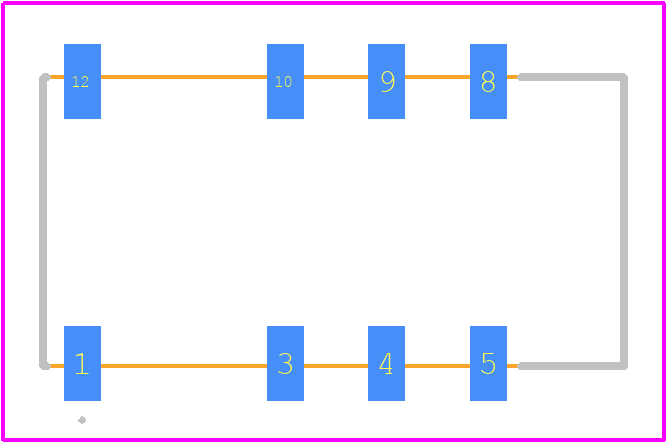

Footprint
-

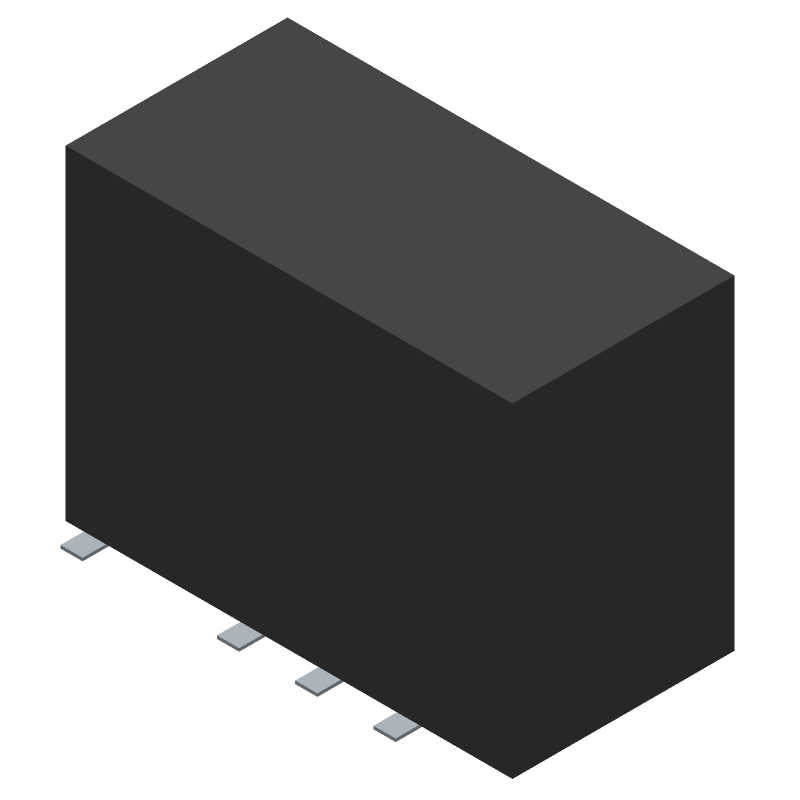

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for V23079G1005B301 by TE Connectivity
Results Overview of V23079G1005B301 by TE Connectivity
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
V23079G1005B301 Information
V23079G1005B301 by TE Connectivity is an RF Relay.
RF Relays are under the broader part category of Relays.
A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.
Price & Stock for V23079G1005B301
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
96B4203
|
Newark | Relay, Signal, Dpdt, 250Vac, 220Vdc, 2A, Coil Voltage:24Vdc, Contact Configuration:Dpdt, Contact Current:2A, Product Range:P2/V23079 Series, Relay Mounting:Surface Mount, Coil Type:Non Latching, Relay Terminals:Solder Rohs Compliant: Yes |Axicom Te Connectivity V23079G1005B301 RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$3.1300 | Buy Now |
|
|
Bristol Electronics | 126 |
|
RFQ | ||
|
|
ComSIT USA | SMT VERSION WITH SHORT TERMINAL STANDARD, NON-LATCHING, STANDARD 1 COIL RF Relay, 2 Form C, DPDT, Momentary, 0.006A (Coil), 24VDC (Coil), 647mW (Coil), 2A (Contact), 220VDC (Contact), 900MHz, DC Input, Random, AC/DC Output, Panel Mount RoHS: Compliant ECCN: EAR99 |
|
|
RFQ |
Part Details for V23079G1005B301
V23079G1005B301 CAD Models
V23079G1005B301 Part Data Attributes
|
|
V23079G1005B301
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
V23079G1005B301
TE Connectivity
RF RELAY, DPDT, MOMENTARY, 0.006A (COIL), 24VDC (COIL), 140mW (COIL), 2A (CONTACT), 220VDC (CONTACT), 900MHz, SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.49.00.50 | |
| Factory Lead Time | 52 Weeks | |
| Samacsys Manufacturer | TE Connectivity | |
| Additional Feature | RELEASE TIME WITH DIODE IN PARALLEL | |
| Body Breadth | 7.2 mm | |
| Body Height | 10.4 mm | |
| Body Length or Diameter | 14.5 mm | |
| Coil Current(DC)-Max | 0.006 A | |
| Coil Operate Voltage(DC) | 18 V | |
| Coil Power | 647 mW | |
| Coil Release Voltage(DC) | 2.4 V | |
| Coil Resistance | 4114 Ω | |
| Coil Voltage(AC)-Max | 220 V | |
| Coil Voltage(DC)-Max | 24 V | |
| Coil Voltage-Nom | 24 V | |
| Coil/Input Supply Type | DC | |
| Contact (AC) Max Power Rating R Load | 62.5VA@250VAC | |
| Contact (AC) Max Rating R Load | 2A@250VAC | |
| Contact Current(AC)-Max | 2 A | |
| Contact Current(DC)-Max | 2 A | |
| Contact (DC) Max Power Rating R Load | 60W@220VDC | |
| Contact (DC) Max Rating R Load | 2A@220VDC | |
| Contact Resistance | 50 mΩ | |
| Contact Voltage(AC)-Max | 250 V | |
| Contact Voltage(DC)-Max | 220 V | |
| Contact/Output Supply Type | AC/DC | |
| Dielectric Strength Between Coil and Contacts | 1500 Vrms | |
| Dielectric Strength Between Open Contacts | 1000 Vrms | |
| Electrical Life | 200000 Cycle(s) | |
| End Contact Material | NICKEL | |
| End Contact Plating | GOLD | |
| Input Switching Control Type | Random | |
| Insertion Loss-Max | -0.27 dB | |
| Insulation Resistance | 1000000000 Ω | |
| Isolation-Max | -20.7 dB | |
| Mounting Feature | PANEL MOUNT | |
| Number of Terminals | 10 | |
| Operate Time | 8 ms | |
| Operating Frequency-Max | 900 MHz | |
| Operating Frequency-Min | 100 MHz | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Packing Method | TR | |
| Physical Dimension | 15mm X 7.5mm X 10.4mm | |
| Reference Standard | CSA; UL | |
| Relay Action | MOMENTARY | |
| Relay Form | 2 FORM C | |
| Relay Function | DPDT | |
| Relay Type | RF RELAY | |
| Release Time | 9 ms | |
| Sealing | IP67 | |
| Surface Mount | NO | |
| Switching Time | 17 ms | |
| Termination Type | SOLDER/QUICK CONNECT | |
| VSWR | 1.4 | |
| Weight | 2.8 g |
