VL6180XV0NR/1 by: STMicroelectronics

Proximity sensor and ambient light sensing (ALS) module

Part Details for VL6180XV0NR/1 by STMicroelectronics

Results Overview of VL6180XV0NR/1 by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

VL6180XV0NR/1 Information

VL6180XV0NR/1 by STMicroelectronics is a Proximity Sensor.
Proximity Sensors are under the broader part category of Sensors/Transducers.

Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.

Price & Stock for VL6180XV0NR/1

Part # Distributor Description Stock Price Buy
DISTI # 46Y8576
Newark Proximity Module, Digital, Lga-12, Supply Voltage Min:2.6V, Supply Voltage Max:3V, No. Of Pins:12Pins, Operating Temperature Min:-40°C, Operating Temperature Max:85°C, Product Range:Vl6180X Series Rohs Compliant: Yes |Stmicroelectronics VL6180XV0NR/1 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 13183
  • 1 $3.0500
  • 10 $3.0500
  • 25 $2.7900
  • 50 $2.7900
  • 100 $2.7900
  • 250 $2.7900
  • 500 $2.7900
$2.7900 / $3.0500 Buy Now
DISTI # VL6180XV0NR/1
Avnet Americas Ambient Light and Proximity Sensor Module 12-Pin LGA T/R - Tape and Reel (Alt: VL6180XV0NR/1) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Container: Reel 30000
  • 5,000 $1.9388
$1.9388 Buy Now
DISTI # 46Y8576
Avnet Americas Ambient Light and Proximity Sensor Module 12-Pin LGA T/R - Bulk (Alt: 46Y8576) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Bulk 107 Partner Stock
  • 1 $4.2500
  • 10 $3.6800
  • 50 $3.2200
  • 100 $3.0300
  • 500 $1.9600
$1.9600 / $4.2500 Buy Now
DISTI # VL6180XV0NR/1
Avnet Americas Ambient Light and Proximity Sensor Module 12-Pin LGA T/R - Tape and Reel (Alt: VL6180XV0NR/1) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Container: Reel 0
  • 5,000 $2.0625
  • 10,000 $2.0295
  • 20,000 $1.9965
  • 30,000 $1.9635
  • 40,000 $1.9404
$1.9404 / $2.0625 Buy Now
STMicroelectronics Time-of-Flight (ToF) proximity sensor and ambient light sensing (ALS) module RoHS: Compliant Min Qty: 1 0
  • 1 $3.2700
  • 10 $2.8400
  • 100 $2.7200
  • 250 $2.7200
  • 500 $2.4200
$2.4200 / $3.2700 Buy Now
Chip 1 Exchange INSTOCK 4893
RFQ
DISTI # VL6180XV0NR/1
Avnet Silica (Alt: VL6180XV0NR/1) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 17 Weeks, 0 Days Silica - 15000
Buy Now
DISTI # VL6180XV0NR/1
EBV Elektronik (Alt: VL6180XV0NR/1) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 17 Weeks, 0 Days EBV - 0
Buy Now
Vyrian Sensors & Transducers 23109
RFQ
Win Source Electronics SENSOR OPT AMBIENT 12SMD / Optical Sensor 0 ~ 24.41" (0 ~ 62cm) I2C Output 16100
  • 21 $2.4375
  • 50 $2.0000
  • 78 $1.9375
  • 107 $1.8750
  • 138 $1.8125
  • 185 $1.6250
$1.6250 / $2.4375 Buy Now

Part Details for VL6180XV0NR/1

VL6180XV0NR/1 CAD Models

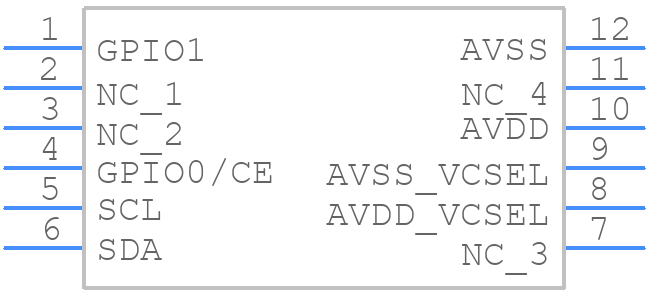

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

VL6180XV0NR/1 Part Data Attributes

Parametric Data
VL6180XV0NR/1 STMicroelectronics
Buy Now Datasheet
Compare Parts:
VL6180XV0NR/1 STMicroelectronics Proximity sensor and ambient light sensing (ALS) module
Rohs Code Yes
Part Life Cycle Code End Of Life
Ihs Manufacturer STMICROELECTRONICS
Package Description LGA-12
Reach Compliance Code compliant
ECCN Code EAR99
Samacsys Manufacturer STMicroelectronics
Additional Feature IT HAS OPTIMUM VOLTAGE AND TEMPERATURE RANGE 2.7 TO 2.9 V AND -10 TO 60 DEGREE CENTIGRADE RESPECTIVELY
Body Breadth 2.8 mm
Body Height 1 mm
Body Length or Diameter 4.8 mm
Measurement Range-Max (mm) 100 mm
Measurement Range-Min (mm)
Mounting Feature SURFACE MOUNT
Operating Current-Max 0.35 mA
Operating Temperature-Max 70 °C
Operating Temperature-Min -20 °C
Output Interface Type I2C INTERFACE
Output Range 0.4-2.4V
Output Type DIGITAL VOLTAGE
Package Shape/Style RECTANGULAR
Response Time 0.12 µs
Sensors/Transducers Type PROXIMITY SENSOR,PHOTOELECTRIC
Supply Voltage-Max 3 V
Supply Voltage-Min 2.6 V
Surface Mount YES
Termination Type SOLDER
