Part Details for VND7NV04TR-E by STMicroelectronics

Overview of VND7NV04TR-E by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Price & Stock for VND7NV04TR-E

Part # Distributor Description Stock Price Buy
DISTI # 06X1144
Newark Power Load Sw, 45V, 9A, 1 Output, To-252, Channel Type:N Channel, Drain Source Voltage Vds:55V, Continuous Drain Current Id:12A, Transistor Mounting:Surface Mount, Rds(On) Test Voltage:5V, Gate Source Threshold Voltage Max:2.5V Rohs Compliant: Yes |Stmicroelectronics VND7NV04TR-E RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 14756
  • 1 $2.0200
  • 10 $1.7000
  • 25 $1.6000
  • 50 $1.4900
  • 100 $1.3900
  • 250 $1.2900
  • 500 $1.1900
  • 1,000 $1.0500
$1.0500 / $2.0200 Buy Now
DISTI # 06X1144
Avnet Americas Power Load Distribution Switch IC, Low Side, 1 Channel, 9 A, 60 MilliOhms, 3 Pins, TO-252 (DPAK) - Bulk (Alt: 06X1144) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 17 Weeks, 0 Days Container: Bulk 6446 Partner Stock
  • 1 $2.0200
  • 10 $1.7000
  • 25 $1.6000
  • 50 $1.4900
  • 100 $1.3900
$1.3900 / $2.0200 Buy Now
DISTI # VND7NV04TR-E
Avnet Americas Power Load Distribution Switch IC, Low Side, 1 Channel, 9 A, 60 MilliOhms, 3 Pins, TO-252 (DPAK) - Tape and Reel (Alt: VND7NV04TR-E) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 13 Weeks, 0 Days Container: Reel 0
  • 2,500 $0.8139
  • 5,000 $0.8014
  • 10,000 $0.7889
  • 15,000 $0.7764
  • 20,000 $0.7670
$0.7670 / $0.8139 Buy Now
STMicroelectronics OMNIFET II :FULLY AUTOPROTECTED POWER MOSFET RoHS: Compliant Min Qty: 1 19716
  • 1 $2.2300
  • 10 $1.5700
  • 100 $1.1100
  • 250 $1.1100
  • 500 $0.8900
$0.8900 / $2.2300 Buy Now
Bristol Electronics   618
RFQ
Bristol Electronics   69
RFQ
DISTI # VND7NV04TR-E
TME IC: power switch, low-side, 45V, 6A, DPAK, reel,tape Min Qty: 1 2962
  • 1 $2.0500
  • 3 $1.8800
  • 10 $1.7400
  • 25 $1.5600
  • 100 $1.4700
  • 300 $1.3900
  • 500 $1.2600
  • 1,000 $1.0900
  • 2,500 $1.0500
$1.0500 / $2.0500 Buy Now
DISTI # VND7NV04TR-E
Avnet Silica Power Load Distribution Switch IC, Low Side, 1 Channel, 9 A, 60 MilliOhms, 3 Pins, TO-252 (DPAK) (Alt: VND7NV04TR-E) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 14 Weeks, 0 Days Silica - 345000
Buy Now
DISTI # VND7NV04TR-E
EBV Elektronik Power Load Distribution Switch IC, Low Side, 1 Channel, 9 A, 60 MilliOhms, 3 Pins, TO-252 (DPAK) (Alt: VND7NV04TR-E) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 14 Weeks, 0 Days EBV - 330000
Buy Now
LCSC 36V 60m 6A 1 TO-252-2(DPAK) Power Distribution Switches ROHS 3035
  • 1 $0.9325
  • 10 $0.7524
  • 30 $0.6752
  • 100 $0.5789
  • 1,000 $0.5102
  • 2,500 $0.5017
$0.5017 / $0.9325 Buy Now
Win Source Electronics Current Limit SW 1-IN 1-OUT to 12A Automotive 3-Pin(2+Tab) DPAK T/R / MOSFET POWER 40V 6A DPAK 34200
  • 85 $0.6200
  • 175 $0.5800
  • 270 $0.5600
  • 385 $0.5200
  • 500 $0.5000
  • 625 $0.4800
$0.4800 / $0.6200 Buy Now

Part Details for VND7NV04TR-E

VND7NV04TR-E CAD Models

  • Part Symbol

    Part Symbol

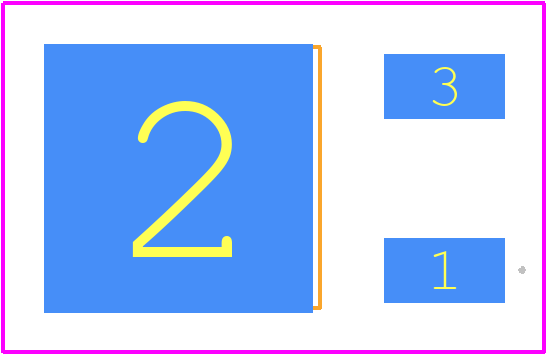

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

VND7NV04TR-E Part Data Attributes

Parametric Data
VND7NV04TR-E STMicroelectronics
Buy Now Datasheet
Compare Parts:
VND7NV04TR-E STMicroelectronics OMNIFET II :FULLY AUTOPROTECTED POWER MOSFET
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Part Package Code TO-252
Package Description ROHS COMPLIANT, DPAK, TO-252, 2 PIN
Pin Count 3
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Factory Lead Time 17 Weeks
Samacsys Manufacturer STMicroelectronics
Built-in Protections TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL
Interface IC Type BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code R-PSSO-G2
JESD-609 Code e3
Length 6.5 mm
Moisture Sensitivity Level 3
Number of Functions 1
Number of Terminals 2
Output Current Flow Direction SINK
Output Peak Current Limit-Nom 9 A
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code TO-252
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 2.63 mm
Surface Mount YES
Terminal Finish Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 2.25 mm
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) 30
Turn-off Time 16 µs
Turn-on Time 2.3 µs
Width 6.1 mm
