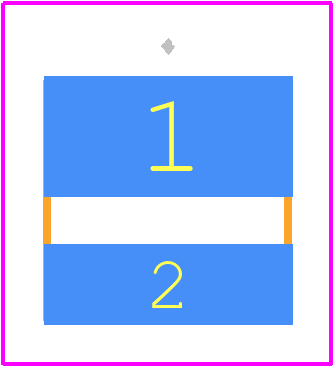

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for VSMY7852X01-GS08 by Vishay Intertechnologies
Results Overview of VSMY7852X01-GS08 by Vishay Intertechnologies
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Security and Surveillance
Internet of Things (IoT)
Environmental Monitoring
Industrial Automation
Healthcare
Agriculture Technology
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Medical Imaging
Entertainment and Gaming
Robotics and Drones
VSMY7852X01-GS08 Information
VSMY7852X01-GS08 by Vishay Intertechnologies is an Infrared LED.
Infrared LEDs are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for VSMY7852X01-GS08
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 698 |
|
RFQ | ||
|
|
LCSC | 30mW/sr250mA 120 1.8V 850nm SMD6x7mm Infrared LED Emitters ROHS | 23 |
|
$2.2486 / $2.3527 | Buy Now |
Part Details for VSMY7852X01-GS08
VSMY7852X01-GS08 CAD Models
VSMY7852X01-GS08 Part Data Attributes
|
|
VSMY7852X01-GS08
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
VSMY7852X01-GS08
Vishay Intertechnologies
Infrared LED, 3.3mm, 1-Element, 850nm,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Reach Compliance Code | unknown | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | HIGH RELIABILITY | |
| Configuration | SINGLE | |
| Forward Current-Max | 0.25 A | |
| Number of Functions | 1 | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | -40 °C | |
| Optoelectronic Device Type | INFRARED LED | |
| Output Power-Nom | 130 mW | |
| Peak Wavelength | 850 nm | |
| Shape | ROUND | |
| Size | 3.3 mm |
VSMY7852X01-GS08 Frequently Asked Questions (FAQ)
-
The recommended soldering temperature profile is 260°C for 10 seconds, with a peak temperature of 240°C. However, it's essential to follow the specific soldering guidelines provided by Vishay Intertechnologies or consult with a qualified engineer.
-
To ensure reliability, operate the device within the recommended temperature range (-55°C to 150°C). Implement proper thermal management, such as heat sinks or thermal interfaces, to maintain a safe junction temperature. Additionally, follow Vishay's guidelines for derating the device's power handling capabilities at elevated temperatures.
-
The VSMY7852X01-GS08 has an ESD rating of 2 kV human body model (HBM) and 150 V machine model (MM). To prevent ESD damage, handle the device with proper ESD protection equipment, such as wrist straps or mats, and follow standard ESD handling procedures.
-
Yes, the VSMY7852X01-GS08 is suitable for high-frequency switching applications due to its low capacitance (CP ≤ 1.5 pF) and fast switching times (trr ≤ 2 ns). However, ensure that the device is operated within its recommended frequency range and follows the application-specific design guidelines.
-
To optimize the layout and routing, follow standard PCB design guidelines for high-frequency circuits. Keep the signal paths short, use controlled impedance lines, and minimize parasitic inductance. Consult with a qualified engineer or refer to Vishay's application notes for specific guidance.
