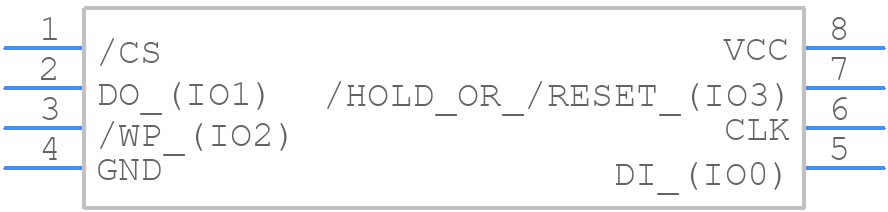

Part Symbol
-

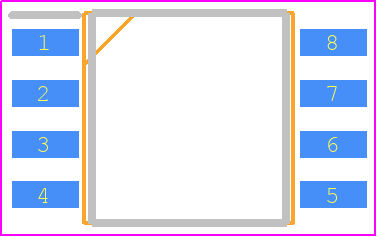

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for W25Q128JVSIQ by Winbond Electronics Corp
Results Overview of W25Q128JVSIQ by Winbond Electronics Corp
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
W25Q128JVSIQ Information
W25Q128JVSIQ by Winbond Electronics Corp is a Flash Memory.
Flash Memories are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for W25Q128JVSIQ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | Min Qty: 3 | 271 |
|
$0.8438 / $2.2500 | Buy Now |
|
|
NAC | spiFlash, 3V, 128M-bit, 4Kb Uniform Sector, SOP8(208mil) Package RoHS: Compliant Min Qty: 1 Package Multiple: 90 | 5402000 on Order |
|
$1.0100 / $1.1700 | Buy Now |
|
DISTI #
SMC-W25Q128JVSIQ
|
Sensible Micro Corporation | OEM Excess 5-7 Days Leadtime, We are an AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 71761 |
|
RFQ | |
|
DISTI #
SMC-W25Q128JVSIQ
|
Sensible Micro Corporation | OEM Excess 5-7 Days Leadtime, We are an AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 2190 |
|
RFQ | |
|
|
MacroQuest Electronics | ISO 9001: 2015, ISO 14001:2015, ISO 45001:2018 | 9355 |
|
$0.5400 / $0.7100 | Buy Now |
|
|
Win Source Electronics | NOR Flash Serial (SPI, Dual SPI, Quad SPI) 3V/3.3V 128M-bit 16M x 8 6ns 8-Pin SOIC T/R/Tray/Tube | IC FLASH 128M SPI 133MHZ 8SOIC | 198288 |
|
$0.2833 / $0.3659 | Buy Now |
Part Details for W25Q128JVSIQ
W25Q128JVSIQ CAD Models
W25Q128JVSIQ Part Data Attributes
|
|
W25Q128JVSIQ
Winbond Electronics Corp
Buy Now
Datasheet
|
Compare Parts:
W25Q128JVSIQ
Winbond Electronics Corp
Flash, 16MX8, PDSO8, SOIC-8
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | WINBOND ELECTRONICS CORP | |
| Package Description | SOIC-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.51 | |
| Samacsys Manufacturer | Winbond | |
| Clock Frequency-Max (fCLK) | 133 MHz | |
| Data Retention Time-Min | 20 | |
| Endurance | 100000 Write/Erase Cycles | |
| JESD-30 Code | S-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 5.23 mm | |
| Memory Density | 134217728 bit | |
| Memory IC Type | FLASH | |
| Memory Width | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Number of Words | 16777216 words | |
| Number of Words Code | 16000000 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 16MX8 | |
| Output Characteristics | 3-STATE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.3 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE | |
| Parallel/Serial | SERIAL | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Programming Voltage | 3 V | |
| Seated Height-Max | 2.16 mm | |
| Serial Bus Type | QSPI | |
| Standby Current-Max | 0.00006 A | |
| Supply Current-Max | 0.02 mA | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Type | NOR TYPE | |
| Width | 5.23 mm | |
| Write Protection | HARDWARE/SOFTWARE |
Alternate Parts for W25Q128JVSIQ
This table gives cross-reference parts and alternative options found for W25Q128JVSIQ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of W25Q128JVSIQ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| W25Q128JVSJQ | Winbond Electronics Corp | Check for Price | Flash, 16MX8, PDSO8, SOIC-8 | W25Q128JVSIQ vs W25Q128JVSJQ |
| W25Q128JVSIQTR | Winbond Electronics Corp | Check for Price | Flash, 16MX8, PDSO8, SOIC-8 | W25Q128JVSIQ vs W25Q128JVSIQTR |
| N25Q128A13ESEA0F | Micron Technology Inc | Check for Price | Flash, 128MX1, PDSO8, 0.208 INCH, ROHS COMPLIANT, SOP2-8 | W25Q128JVSIQ vs N25Q128A13ESEA0F |
| N25Q128A13ESEH0E | Micron Technology Inc | Check for Price | Flash, 128MX1, PDSO8, 0.208 INCH, ROHS COMPLIANT, SOP2-8 | W25Q128JVSIQ vs N25Q128A13ESEH0E |
| N25Q128A13ESE40E | Micron Technology Inc | Check for Price | Flash, 16MX8, PDSO8, 0.208 INCH, ROHS COMPLIANT, SOP2-8 | W25Q128JVSIQ vs N25Q128A13ESE40E |
| N25Q128A13ESEA0E | Micron Technology Inc | Check for Price | Flash, 128MX1, PDSO8, 0.208 INCH, ROHS COMPLIANT, SOP2-8 | W25Q128JVSIQ vs N25Q128A13ESEA0E |
| N25Q128A13ESEH0G | Micron Technology Inc | Check for Price | Flash, 128MX1, PDSO8, 0.208 INCH, ROHS COMPLIANT, SOP2-8 | W25Q128JVSIQ vs N25Q128A13ESEH0G |
| N25Q128A13ESE40G | Micron Technology Inc | Check for Price | Flash, 16MX8, PDSO8, 0.208 INCH, ROHS COMPLIANT, SOP2-8 | W25Q128JVSIQ vs N25Q128A13ESE40G |
| MT25QL128ABA1EW9-0SITTR | Micron Technology Inc | Check for Price | Flash, 128MX1, PDSO8, WDFN-8 | W25Q128JVSIQ vs MT25QL128ABA1EW9-0SITTR |
| W25Q128JVSJQTR | Winbond Electronics Corp | Check for Price | Flash, | W25Q128JVSIQ vs W25Q128JVSJQTR |
