Memory / Flash Memories / W25Q32JVSSIQ
Datasheets
W25Q32JVSSIQ by: Winbond Electronics Corp

Flash, 4MX8, PDSO8, SOIC-8

Part Details for W25Q32JVSSIQ by Winbond Electronics Corp

Results Overview of W25Q32JVSSIQ by Winbond Electronics Corp

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

W25Q32JVSSIQ Information

W25Q32JVSSIQ by Winbond Electronics Corp is a Flash Memory.
Flash Memories are under the broader part category of Memory Components.

Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.

Price & Stock for W25Q32JVSSIQ

Part # Distributor Description Stock Price Buy
Bristol Electronics   3500
RFQ
Bristol Electronics   240
RFQ
Bristol Electronics   204
RFQ
Bristol Electronics   Min Qty: 4 10
  • 4 $1.5000
$1.5000 Buy Now
ComSIT USA AVAILABLE EU 1229
RFQ
ComSIT USA Flash, 4MX8, PDSO8 RoHS: Compliant ECCN: EAR99 Stock DE - 11000
Stock ES - 1041
Stock US - 0
Stock MX - 0
Stock CN - 0
Stock HK - 0
RFQ
GLYN GmbH & Co. KG Flash 32Mb SPI-Quad-I/O 133MHz 8-SOIC -40/+85øC 650
RFQ
NAC spiFlash, 32M-bit, 4Kb Uniform Sector, SOP8(208mil) Package RoHS: Compliant Min Qty: 1 Package Multiple: 90 2250
  • 90 $0.5100
  • 450 $0.4400
$0.4400 / $0.5100 Buy Now
DISTI # SMC-W25Q32JVSSIQ
Sensible Micro Corporation AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days 10099
RFQ
DISTI # W25Q32JVSSIQ
Avnet Asia NOR Flash Serial-SPI 3V 32Mbit 32M x 1bit 8-Pin SOIC (Alt: W25Q32JVSSIQ) RoHS: Compliant Min Qty: 9000 Package Multiple: 90 Lead time: 20 Weeks, 0 Days 0
  • 90 $0.0719
  • 2,250 $0.0360
$0.0360 / $0.0719 Buy Now
Component Electronics, Inc IN STOCK SHIP TODAY 85
  • 1 $1.1500
  • 100 $0.8700
  • 1,000 $0.7500
$0.7500 / $1.1500 Buy Now
MacroQuest Electronics ISO 9001: 2015, ISO 14001:2015, ISO 45001:2018 10560
  • 500 $0.4200
  • 1,000 $0.3300
  • 5,000 $0.2400
$0.2400 / $0.4200 Buy Now
Win Source Electronics IC FLASH 32MBIT 133MHZ 8SOP 208698
  • 310 $0.1636
  • 655 $0.1531
  • 1,015 $0.1478
  • 1,460 $0.1373
  • 1,895 $0.1320
  • 2,370 $0.1267
$0.1267 / $0.1636 Buy Now

Part Details for W25Q32JVSSIQ

W25Q32JVSSIQ CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

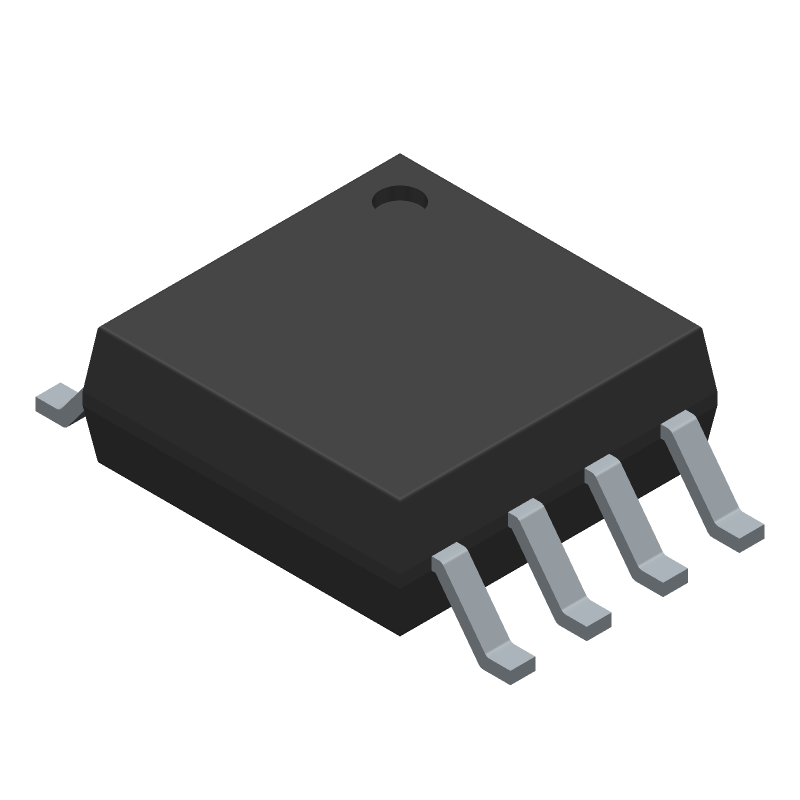

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

W25Q32JVSSIQ Part Data Attributes

Parametric Data
W25Q32JVSSIQ Winbond Electronics Corp
Buy Now Datasheet
Compare Parts:
W25Q32JVSSIQ Winbond Electronics Corp Flash, 4MX8, PDSO8, SOIC-8
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer WINBOND ELECTRONICS CORP
Package Description SOIC-8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.32.00.51
Samacsys Manufacturer Winbond
Clock Frequency-Max (fCLK) 133 MHz
Endurance 100000 Write/Erase Cycles
JESD-30 Code S-PDSO-G8
JESD-609 Code e3
Length 5.28 mm
Memory Density 33554432 bit
Memory IC Type FLASH
Memory Width 8
Number of Functions 1
Number of Terminals 8
Number of Words 4194304 words
Number of Words Code 4000000
Operating Mode SYNCHRONOUS
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Organization 4MX8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.3
Package Shape SQUARE
Package Style SMALL OUTLINE
Parallel/Serial SERIAL
Peak Reflow Temperature (Cel) 260
Programming Voltage 3 V
Seated Height-Max 2.16 mm
Serial Bus Type QSPI
Supply Voltage-Max (Vsup) 3.6 V
Supply Voltage-Min (Vsup) 2.7 V
Supply Voltage-Nom (Vsup) 3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish MATTE TIN
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Type NOR TYPE
Width 5.28 mm
Write Protection HARDWARE/SOFTWARE

Alternate Parts for W25Q32JVSSIQ

This table gives cross-reference parts and alternative options found for W25Q32JVSSIQ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of W25Q32JVSSIQ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
W25Q32JVSSIM Winbond Electronics Corp Check for Price Flash, 4MX8, PDSO8, SOIC-8 W25Q32JVSSIQ vs W25Q32JVSSIM
Part Number Manufacturer Composite Price Description Compare
W25Q32JVSSIQTR Winbond Electronics Corp Check for Price Flash, 4MX8, PDSO8, SOIC-8 W25Q32JVSSIQ vs W25Q32JVSSIQTR
W25Q32JVSSJQTR Winbond Electronics Corp Check for Price Flash, W25Q32JVSSIQ vs W25Q32JVSSJQTR
W25Q32JVSSSQ Winbond Electronics Corp Check for Price Flash, 4MX8, PDSO8, SOIC-8 W25Q32JVSSIQ vs W25Q32JVSSSQ
W25Q32JVSSJMTR Winbond Electronics Corp Check for Price Flash, W25Q32JVSSIQ vs W25Q32JVSSJMTR
W25Q32JVSSAQ Winbond Electronics Corp Check for Price Flash, 4MX8, PDSO8, SOIC-8 W25Q32JVSSIQ vs W25Q32JVSSAQ
EN25QH32B-104HIP2B Elite Semiconductor Memory Technology Inc Check for Price Flash, 4MX8, PDSO8, SOP-8 W25Q32JVSSIQ vs EN25QH32B-104HIP2B
EN25Q32B-104HIP Eon Silicon Solution Inc Check for Price Flash, 4MX8, PDSO8, 0.208 INCH, ROHS COMPLIANT, SOP-8 W25Q32JVSSIQ vs EN25Q32B-104HIP

W25Q32JVSSIQ Related Parts

W25Q32JVSSIQ Frequently Asked Questions (FAQ)

  • The W25Q32JVSSIQ supports up to 100,000 erase cycles.

  • The hold pin (HOLD#) is used to pause the serial flash memory during a read or write operation. To use it, pull the HOLD# pin low to pause the operation, and pull it high to resume the operation.

  • The WP# pin is a write-protect pin that allows you to protect the entire memory array or a specific sector from being written. To use it, pull the WP# pin low to enable write protection, and pull it high to disable write protection.

  • The optimal clock frequency depends on the specific requirements of your application. The W25Q32JVSSIQ supports clock frequencies up to 104 MHz, but you may need to adjust the frequency based on factors such as power consumption, noise tolerance, and system latency.

  • The main difference between the two is the operating voltage range. The W25Q32JVSSIQ operates from 2.7V to 3.6V, while the W25Q32JVSSJQ operates from 1.8V to 3.6V. Choose the part that best fits your system's voltage requirements.
