Memory / Flash Memories / W25Q64JVSSIQ
Datasheets
W25Q64JVSSIQ by: Winbond Electronics Corp

Flash, 64MX1, PDSO8, SOIC-8

Part Details for W25Q64JVSSIQ by Winbond Electronics Corp

Results Overview of W25Q64JVSSIQ by Winbond Electronics Corp

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Entertainment and Gaming

W25Q64JVSSIQ Information

W25Q64JVSSIQ by Winbond Electronics Corp is a Flash Memory.
Flash Memories are under the broader part category of Memory Components.

Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.

Price & Stock for W25Q64JVSSIQ

Part # Distributor Description Stock Price Buy
Bristol Electronics   5375
RFQ
Bristol Electronics   Min Qty: 4 273
  • 4 $1.6500
  • 14 $1.2375
  • 42 $1.0312
  • 147 $0.6187
$0.6187 / $1.6500 Buy Now
Bristol Electronics   Min Qty: 4 60
  • 4 $1.6500
  • 14 $1.2375
  • 42 $1.0312
$1.0312 / $1.6500 Buy Now
ComSIT USA AVAILABLE EU 194
RFQ
ComSIT USA 3V 64M-BIT SERIAL FLASH MEMORY Flash, 8MX8, PDSO8 RoHS: Not Compliant ECCN: EAR99 Stock DE - 1208
Stock ES - 0
Stock US - 0
Stock MX - 0
Stock CN - 0
Stock HK - 0
RFQ
NAC spiFlash, 64M-bit, 4Kb Uniform Sector, SOP8(208mil) Package RoHS: Compliant Min Qty: 1 Package Multiple: 90 900
  • 90 $0.7100
  • 450 $0.6100
$0.6100 / $0.7100 Buy Now
DISTI # SMC-W25Q64JVSSIQ
Sensible Micro Corporation AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days 82
RFQ
DISTI # W25Q64JVSSIQ
Avnet Asia NOR Flash Serial-SPI 3V 64MBit 64M x 1bit 6ns 8-Pin SOIC (Alt: W25Q64JVSSIQ) RoHS: Compliant Min Qty: 9000 Package Multiple: 90 Lead time: 20 Weeks, 0 Days 0
RFQ
MacroQuest Electronics ISO 9001: 2015, ISO 14001:2015, ISO 45001:2018 4698
  • 540 $0.4300
  • 1,080 $0.3800
  • 4,000 $0.3200
$0.3200 / $0.4300 Buy Now
Win Source Electronics IC FLASH 64MBIT 104MHZ 8SOIC 198288
  • 225 $0.2260
  • 475 $0.2115
  • 735 $0.2042
  • 1,055 $0.1896
  • 1,375 $0.1823
  • 1,715 $0.1750
$0.1750 / $0.2260 Buy Now

Part Details for W25Q64JVSSIQ

W25Q64JVSSIQ CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

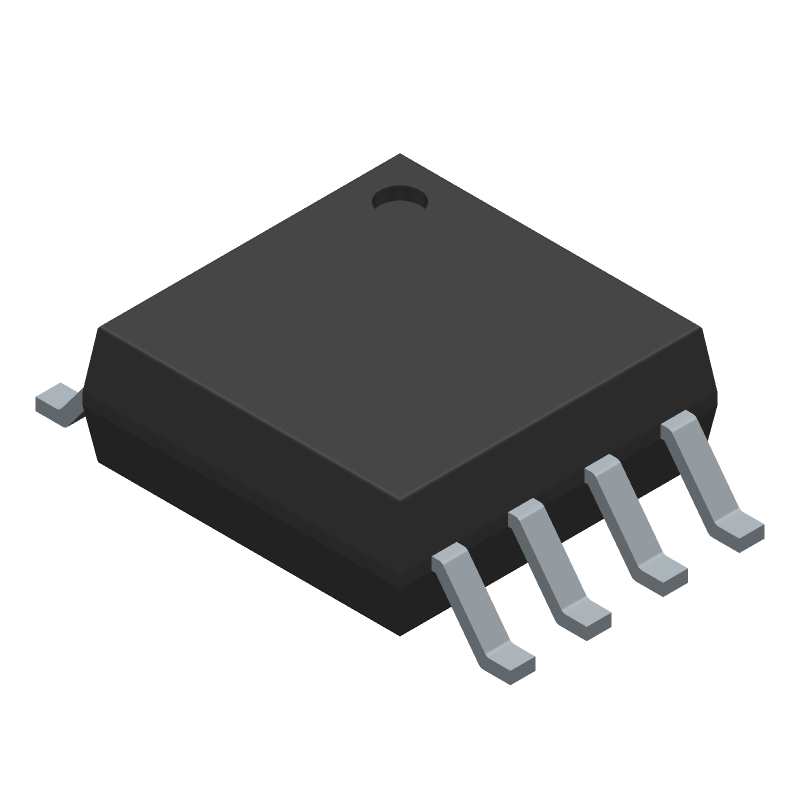

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

W25Q64JVSSIQ Part Data Attributes

Parametric Data
W25Q64JVSSIQ Winbond Electronics Corp
Buy Now Datasheet
Compare Parts:
W25Q64JVSSIQ Winbond Electronics Corp Flash, 64MX1, PDSO8, SOIC-8
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer WINBOND ELECTRONICS CORP
Package Description SOIC-8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.32.00.51
Samacsys Manufacturer Winbond
Additional Feature 2.7V TO 3V @ 104MHZ
Clock Frequency-Max (fCLK) 133 MHz
Data Retention Time-Min 20
Endurance 100000 Write/Erase Cycles
JESD-30 Code S-PDSO-G8
JESD-609 Code e3
Length 5.23 mm
Memory Density 67108864 bit
Memory IC Type FLASH
Memory Width 8
Moisture Sensitivity Level 3
Number of Functions 1
Number of Terminals 8
Number of Words 8388608 words
Number of Words Code 8000000
Operating Mode SYNCHRONOUS
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Organization 8MX8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.3
Package Shape SQUARE
Package Style SMALL OUTLINE
Parallel/Serial SERIAL
Peak Reflow Temperature (Cel) 260
Programming Voltage 3 V
Seated Height-Max 2.16 mm
Serial Bus Type QSPI
Standby Current-Max 0.00005 A
Supply Current-Max 0.02 mA
Supply Voltage-Max (Vsup) 3.6 V
Supply Voltage-Min (Vsup) 2.7 V
Supply Voltage-Nom (Vsup) 3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish MATTE TIN
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Type NOR TYPE
Width 5.23 mm
Write Protection HARDWARE/SOFTWARE

Alternate Parts for W25Q64JVSSIQ

This table gives cross-reference parts and alternative options found for W25Q64JVSSIQ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of W25Q64JVSSIQ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
W25Q64JVSSIQT Winbond Electronics Corp Check for Price Flash, 8MX8, PDSO8, SOIC-8 W25Q64JVSSIQ vs W25Q64JVSSIQT
W25Q64JVSSIG Winbond Electronics Corp Check for Price Flash, 8MX8, PDSO8, SOIC-8 W25Q64JVSSIQ vs W25Q64JVSSIG
W25Q64JVSSJMTR Winbond Electronics Corp Check for Price Flash, W25Q64JVSSIQ vs W25Q64JVSSJMTR
W25Q64JVSSJQ Winbond Electronics Corp Check for Price Flash, W25Q64JVSSIQ vs W25Q64JVSSJQ
Part Number Manufacturer Composite Price Description Compare
W25Q64JVSSJQTR Winbond Electronics Corp Check for Price Flash, W25Q64JVSSIQ vs W25Q64JVSSJQTR
S25FL164K0XMFV010 Cypress Semiconductor Check for Price Flash, 16MX4, PDSO8, SOIC-8 W25Q64JVSSIQ vs S25FL164K0XMFV010
M25PX64SOVZM3E Micron Technology Inc Check for Price Flash, 8MX8, PBGA24, 6 X 8 MM, ROHS COMPLIANT, TBGA-24 W25Q64JVSSIQ vs M25PX64SOVZM3E
W25Q64FVSTIQ Winbond Electronics Corp Check for Price Flash, 64MX1, PDSO8, 0.208 INCH, GREEN, VSOP-8 W25Q64JVSSIQ vs W25Q64FVSTIQ
M25PX64SVMF6G Numonyx Memory Solutions Check for Price EEPROM, 8MX8, Serial, CMOS, PDSO16, 0.300 INCH, ROHS COMPLIANT, PLASTIC, SOP-16 W25Q64JVSSIQ vs M25PX64SVMF6G
M25PX64STVME6P Numonyx Memory Solutions Check for Price EEPROM, 8MX8, Serial, CMOS, PDSO8, 8 X 6 MM, ROHS COMPLIANT, VDFPN-8 W25Q64JVSSIQ vs M25PX64STVME6P
S25FL064LABMFN013 Infineon Technologies AG Check for Price Flash, 16MX4, PDSO8, SOIC-8 W25Q64JVSSIQ vs S25FL064LABMFN013
W25Q64FVTBIF Winbond Electronics Corp Check for Price Flash, 64MX1, PBGA24, TFBGA-24 W25Q64JVSSIQ vs W25Q64FVTBIF
S25FL064LABMFV010 Infineon Technologies AG $1.0223 Flash, 16MX4, PDSO8, W25Q64JVSSIQ vs S25FL064LABMFV010
M25P64-VMF6PB Micron Technology Inc Check for Price Flash, 8MX8, PDSO16, 0.300 INCH, ROHS COMPLIANT, PLASTIC, SOP-16 W25Q64JVSSIQ vs M25P64-VMF6PB

W25Q64JVSSIQ Related Parts

W25Q64JVSSIQ Frequently Asked Questions (FAQ)

  • The W25Q64JVSSIQ has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on the usage and operating conditions.

  • The hold pin (HOLD#) is used to pause the flash memory operation. To use it, connect the HOLD# pin to the system's control signal, and assert it low to pause the operation. De-assert the HOLD# pin to resume the operation.

  • The WP# pin is the write protect pin. When it is low, the entire memory array is protected from write operations. To use it, connect the WP# pin to the system's control signal, and assert it low to enable write protection.

  • The recommended power-up sequence is to apply VCC first, followed by VSS, and then the input signals. This ensures that the device powers up correctly and minimizes the risk of latch-up.

  • To enter deep power-down mode, send the DPD command (B9h) to the device. In this mode, the device consumes very low power. To exit DPD, send a reset command (RST) or a read command.
