Resistors / Array/Network Resistors / YC124-JR-0751RL
Datasheets

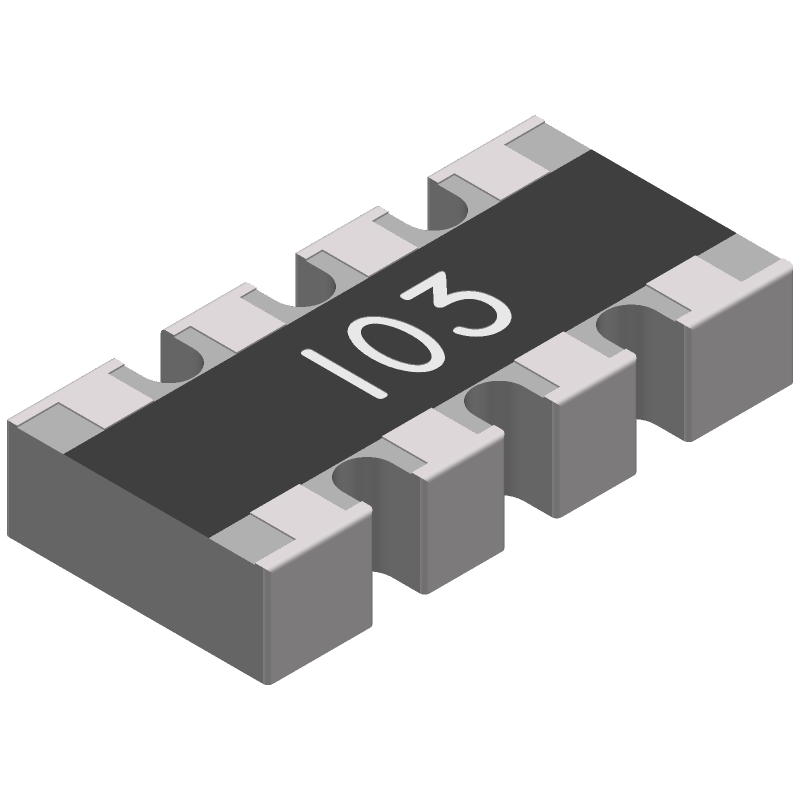

YC124-JR-0751RL by: YAGEO Corporation

Array/Network Resistor, Isolated, Metal Glaze/thick Film, 51ohm, 25V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0408, CHIP

Part Details for YC124-JR-0751RL by YAGEO Corporation

Results Overview of YC124-JR-0751RL by YAGEO Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems Renewable Energy

YC124-JR-0751RL Information

YC124-JR-0751RL by YAGEO Corporation is an Array/Network Resistor.
Array/Network Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for YC124-JR-0751RL

Part # Distributor Description Stock Price Buy
DISTI # 82AH9453
Newark Res, Aec-Q200, 51R, 8Pin, 0.0625W, 0804 Rohs Compliant: Yes |Yageo YC124-JR-0751RL RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape 86722
  • 10 $0.0220
  • 25 $0.0200
  • 50 $0.0190
  • 100 $0.0170
  • 250 $0.0160
  • 500 $0.0150
  • 1,000 $0.0140
$0.0140 / $0.0220 Buy Now
DISTI # 69AK1360
Newark Res, Net, Iso, 51R, 5%, 0804 Rohs Compliant: Yes |Yageo YC124-JR-0751RL RoHS: Compliant Min Qty: 10000 Package Multiple: 1 Date Code: 1 Container: Reel 10000
  • 10,000 $0.0090
  • 20,000 $0.0080
$0.0080 / $0.0090 Buy Now
DISTI # YC124-JR-0751RL
Avnet Americas Resistor, Array, 51 Ohm, ? 5%, 250 mW, 4 Resistors, Isolated, 0804 [2010 Metric], Convex, Surface Mount, Thick Film - Tape and Reel (Alt: YC124-JR-0751RL) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 28 Weeks, 0 Days Container: Reel 10000
  • 10,000 $0.0046
  • 20,000 $0.0046
  • 40,000 $0.0045
  • 60,000 $0.0045
  • 80,000 $0.0044
$0.0044 / $0.0046 Buy Now
Bristol Electronics   46525
RFQ
Bristol Electronics   23283
RFQ
Future Electronics YC124 Series 4 Elements 51 Ohms 5 % Case 4 x 0402 SMD Chip Resistor Network Min Qty: 10000 Package Multiple: 10000 10000
null
  • 10,000 $0.0049
  • 20,000 $0.0048
  • 40,000 $0.0047
  • 50,000 $0.0047
  • 150,000 $0.0044
$0.0044 / $0.0049 Buy Now
Future Electronics YC124 Series 4 Elements 51 Ohms 5 % Case 4 x 0402 SMD Chip Resistor Network Min Qty: 10000 Package Multiple: 10000 10000
null
  • 10,000 $0.0056
  • 30,000 $0.0054
  • 50,000 $0.0053
  • 150,000 $0.0051
  • 250,000 $0.0050
$0.0050 / $0.0056 Buy Now
DISTI # YC124-JR-0751RL
TME Resistor network: Y, SMD, 51Ω, ±5%, 62.5mW, No.of resistors: 4 Min Qty: 1 2794
  • 1 $0.0931
  • 10 $0.0393
  • 25 $0.0304
  • 50 $0.0250
  • 100 $0.0207
  • 250 $0.0160
  • 500 $0.0131
  • 2,500 $0.0081
  • 5,000 $0.0066
  • 10,000 $0.0060
$0.0060 / $0.0931 Buy Now
DISTI # YC124-JR-0751RL
Avnet Abacus Resistor Array 51 Ohm 5 250 mW 4 Resistors Isolated 0804 2010 Metric Convex Surface Mount Thick Film - Tape and Reel (Alt: YC124-JR-0751RL) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 22 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
New Advantage Corporation YC124 Series 4 Elements 51 Ohms 5 % Case 4 x 0402 SMD Chip Resistor Network RoHS: Compliant Min Qty: 1 Package Multiple: 10000 60000
  • 40,000 $0.0052
  • 60,000 $0.0048
$0.0048 / $0.0052 Buy Now

Part Details for YC124-JR-0751RL

YC124-JR-0751RL Part Data Attributes

Parametric Data
YC124-JR-0751RL YAGEO Corporation
Buy Now Datasheet
Compare Parts:
YC124-JR-0751RL YAGEO Corporation Array/Network Resistor, Isolated, Metal Glaze/thick Film, 51ohm, 25V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0408, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer YAGEO CORP
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.20
Factory Lead Time 28 Weeks
Samacsys Manufacturer YAGEO
Construction Rectangular
First Element Resistance 51 Ω
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Network Type ISOLATED
Number of Elements 1
Number of Functions 4
Number of Terminals 8
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.45 mm
Package Length 1 mm
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Package Width 2 mm
Packing Method TR, Paper, 7 Inch
Rated Power Dissipation (P) 0.0625 W
Rated Temperature 70 °C
Reference Standard AEC-Q200
Resistance 51 Ω
Resistor Type ARRAY/NETWORK RESISTOR
Second/Last Element Resistance 51 Ω
Size Code 0408
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 200 ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Tolerance 5%
Working Voltage 25 V

YC124-JR-0751RL Related Parts

YC124-JR-0751RL Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for YC124-JR-0751RL is between 250°C to 260°C for a maximum of 5 seconds.

  • Yes, YC124-JR-0751RL is compatible with lead-free soldering and is RoHS compliant.

  • The moisture sensitivity level (MSL) of YC124-JR-0751RL is MSL 2, which means it can withstand exposure to moisture for up to 4 days.

  • Yes, YC124-JR-0751RL is suitable for high-frequency applications up to 1 GHz due to its low equivalent series resistance (ESR) and high self-resonant frequency.

  • The operating temperature range of YC124-JR-0751RL is -55°C to 125°C.
