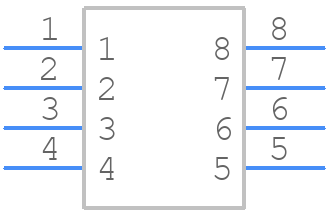

Part Symbol
-
Footprint
-

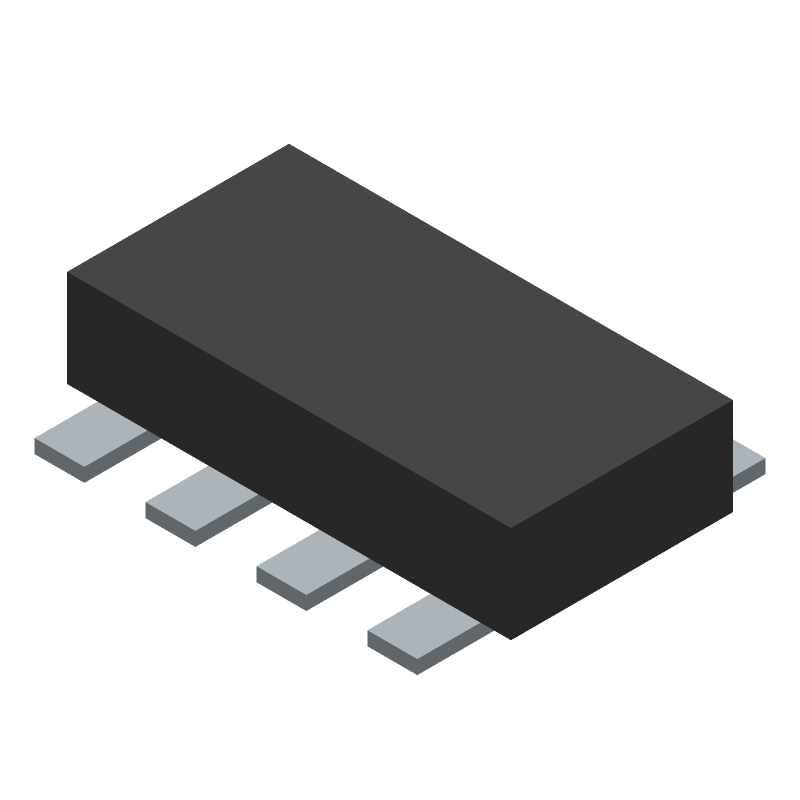

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for YC164-JR-074K7L by YAGEO Corporation
Results Overview of YC164-JR-074K7L by YAGEO Corporation
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
YC164-JR-074K7L Information
YC164-JR-074K7L by YAGEO Corporation is an Array/Network Resistor.
Array/Network Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for YC164-JR-074K7L
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
98K8212
|
Newark | Resistor Array, Arv241 1206 4K7, Resistance:4.7Kohm, Product Range:Yc164 Series, No. Of Elements:4Elements, Network Circuit Type:Isolated, Resistor Case Style:1206 [3216 Metric], No. Of Pins:8Pins, Voltage Rating:50V, Power Rating Rohs Compliant: Yes |Yageo YC164-JR-074K7L RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 107030 |
|
$0.0150 | Buy Now |
|
DISTI #
69AK1379
|
Newark | Res, Net, Iso, 4K70.063W, 5%, 1206 Rohs Compliant: Yes |Yageo YC164-JR-074K7L RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 1 Container: Reel | 0 |
|
$0.0120 / $0.0150 | Buy Now |
|
DISTI #
YC164-JR-074K7L
|
Avnet Americas | Resistor, Array, 4.7 kOhm, ? 5%, 250 mW, 4 Resistors, Isolated, 1206 [3216 Metric], Convex, Surface Mount, Thick Film - Tape and Reel (Alt: YC164-JR-074K7L) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 28 Weeks, 0 Days Container: Reel | 0 |
|
$0.0073 / $0.0077 | Buy Now |
|
|
Bristol Electronics | 23923 |
|
RFQ | ||
|
DISTI #
YC164-JR-074K7
|
TME | Resistor network: Y, SMD, 4.7kΩ, ±5%, 62.5mW, No.of resistors: 4 Min Qty: 1 | 8351 |
|
$0.0098 / $0.0877 | Buy Now |
|
DISTI #
YC164-JR-074K7L
|
Avnet Abacus | Resistor Array 47 kOhm 5 250 mW 4 Resistors Isolated 1206 3216 Metric Convex Surface Mount Thick Film - Tape and Reel (Alt: YC164-JR-074K7L) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 22 Weeks, 0 Days Container: Reel | Abacus - 270000 |
|
Buy Now | |
|
|
New Advantage Corporation | YC164 Series 4 Elements 4.7 kOhms 5 % Case 4 x 0603 SMD Chip Resistor Network RoHS: Compliant Min Qty: 1 Package Multiple: 5000 | 30000 |
|
$0.0093 / $0.0100 | Buy Now |
|
|
Vyrian | Resistors | 174370 |
|
RFQ | |
|
|
Win Source Electronics | RES ARRAY 4 RES 4.7K OHM 1206 | 88300 |
|
$0.0029 / $0.0037 | Buy Now |
Part Details for YC164-JR-074K7L
YC164-JR-074K7L CAD Models
YC164-JR-074K7L Part Data Attributes
|
|
YC164-JR-074K7L
YAGEO Corporation
Buy Now
Datasheet
|
Compare Parts:
YC164-JR-074K7L
YAGEO Corporation
Array/Network Resistor, Isolated, Metal Glaze/thick Film, 4700ohm, 50V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0612, CHIP, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | YAGEO CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.20 | |
| Factory Lead Time | 28 Weeks | |
| Samacsys Manufacturer | YAGEO | |
| Construction | Rectangular | |
| First Element Resistance | 4700 Ω | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Network Type | ISOLATED | |
| Number of Elements | 1 | |
| Number of Functions | 4 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.6 mm | |
| Package Length | 1.6 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 3.2 mm | |
| Packing Method | TR, Paper, 7 Inch | |
| Rated Power Dissipation (P) | 0.0625 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 4700 Ω | |
| Resistor Type | ARRAY/NETWORK RESISTOR | |
| Second/Last Element Resistance | 4700 Ω | |
| Size Code | 0612 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 200 ppm/°C | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 5% | |
| Working Voltage | 50 V |
