0022112022 Information
0022112022 by Molex is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 0022112022
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
0022112022
|
Avnet Americas | Pin Header, Signal, Wire-to-Board, 2.54 mm, 1 Rows, 2 Contacts, Through Hole Straight - Bulk (Alt: 0022112022) COO: India RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 19 Weeks, 0 Days Container: Bulk | 82412 |
|
$0.0976 / $0.1447 | Buy Now |
|
DISTI #
MOL22-11-2022
|
Heilind Electronics | KK 100 HDR FRLK VERT 02 CKT G LD | Americas - 159315 in Stock230850 On Order |
|
$0.1084 / $0.1370 | Buy Now |
|
DISTI #
000000000000038791
|
Sager | Headers & Wire Housings KK 100 Hdr FrLk Vert 02 Ckt Gold Min Qty: 1 | 27480 |
|
$0.1000 / $0.1462 | Buy Now |
|
|
Component Electronics, Inc | SIPHDR POLARIZED 2.5MM 2P NBST 3/8 GOLD LOCK WHT P# | 450 |
|
$0.2500 / $0.3800 | Buy Now |
US Tariff Estimator: 0022112022 by Molex
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 0022112022
0022112022 CAD Models
-
Part Symbol
-

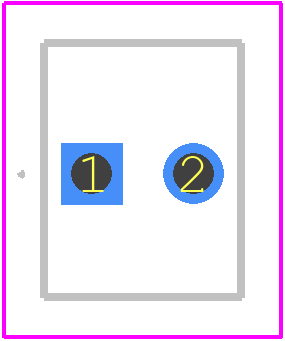

Footprint
-

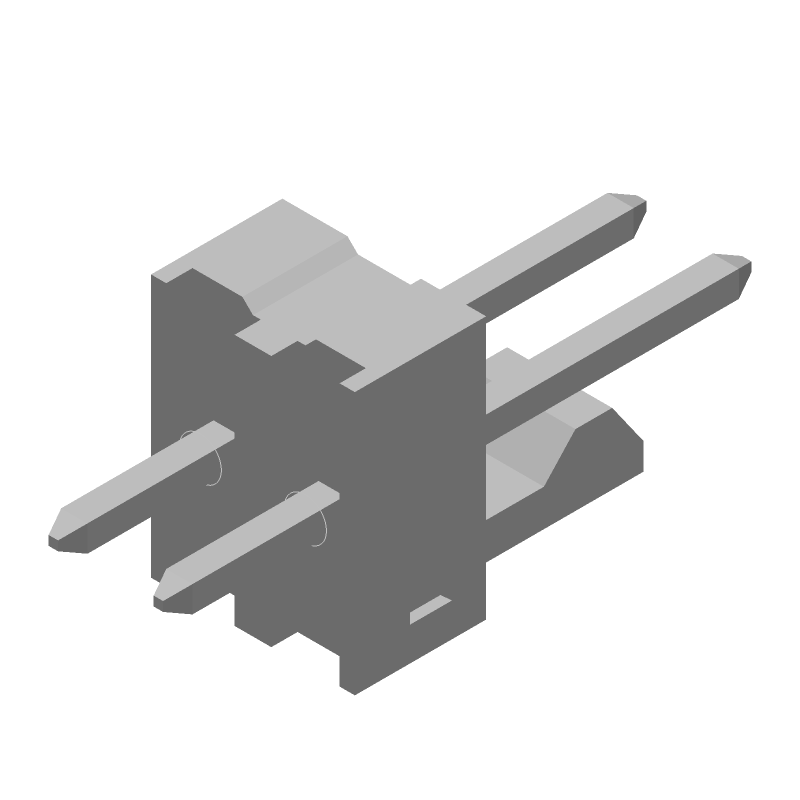

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
0022112022 Part Data Attributes
|
|
0022112022
Molex
Buy Now
Datasheet
|
Compare Parts:
0022112022
Molex
Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, HALOGEN FREE AND ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Low Halogen, Rohs And Reach Compliant | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Additional Feature | Polarized | |
| Body Breadth | 0.25 Inch | |
| Body Depth | 0.322 Inch | |
| Connector Type | Board Connector | |
| Contact Finish Mating | Not Specified | |
| Contact Finish Termination | Matte Tin (Sn) - With Nickel (Ni) Barrier | |
| Contact Gender | Male | |
| Contact Material | Brass | |
| DIN Conformance | No | |
| Filter Feature | No | |
| IEC Conformance | No | |
| JESD-609 Code | e3 | |
| MIL Conformance | No | |
| Mating Contact Pitch | 0.1 Inch | |
| Mating Information | Multiple Mating Parts Available | |
| Mixed Contacts | No | |
| Mounting Style | Straight | |
| Mounting Type | Board | |
| Number Of Connectors | One | |
| Number of Rows Loaded | 1 | |
| Option | General Purpose | |
| Terminal Pitch | 2.54 Mm | |
| Termination Type | Solder | |
| Total Number of Contacts | 2 | |
| UL Flammability Code | 94V-0 |
