04025U5R6BAT2A Information
04025U5R6BAT2A by Kyocera AVX Components is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for 04025U5R6BAT2A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
55J2066
|
Newark | Rf/Microwave Capacitor 5.6Pf, 50V, 0402 0.1Pf, Full Reel, Capacitance:5.6Pf, Voltage Rating:50V, Product Range:U Series, Capacitance Tolerance:± 0.1Pf, Operating Temperature Max:125°C, Capacitor Case Style:0402 [1005 Metric] Rohs Compliant: Yes |Kyocera Avx 04025U5R6BAT2A RoHS: Compliant Min Qty: 156 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0500 / $0.0570 | Buy Now |
|
DISTI #
88M8105
|
Newark | Capacitor Rf/Microwave 5.6Pf, 50V, 0402 0.1Pf, Capacitance:5.6Pf, Voltage Rating:50V, Product Range:U Series, Capacitance Tolerance:± 0.1Pf, Operating Temperature Max:125°C, Capacitor Case Style:0402 [1005 Metric], No. Of Pins:2 Rohs Compliant: Yes |Kyocera Avx 04025U5R6BAT2A RoHS: Compliant Min Qty: 156 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$0.0530 / $0.1050 | Buy Now |
|
DISTI #
KGQ05FCG1H5R6BH
|
Avnet Americas | - Tape and Reel (Alt: KGQ05FCG1H5R6BH) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 10 Weeks, 0 Days Container: Reel | 70000 |
|
$0.0220 / $0.0224 | Buy Now |
|
|
Bristol Electronics | Min Qty: 38 | 110000 |
|
$0.0178 / $0.1320 | Buy Now |
|
DISTI #
04025U5R6BAT2A
|
IBS Electronics | 0402 CASE 5.6 PF ±, 0.1PF 50 V C0G SURFACE MOUNT MULTILAYER CERAMIC CAPACITOR Min Qty: 10000 Package Multiple: 1 | 20000 |
|
$0.0297 / $0.0314 | Buy Now |
US Tariff Estimator: 04025U5R6BAT2A by Kyocera AVX Components
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 04025U5R6BAT2A
04025U5R6BAT2A CAD Models
-
Part Symbol
-
Footprint
-

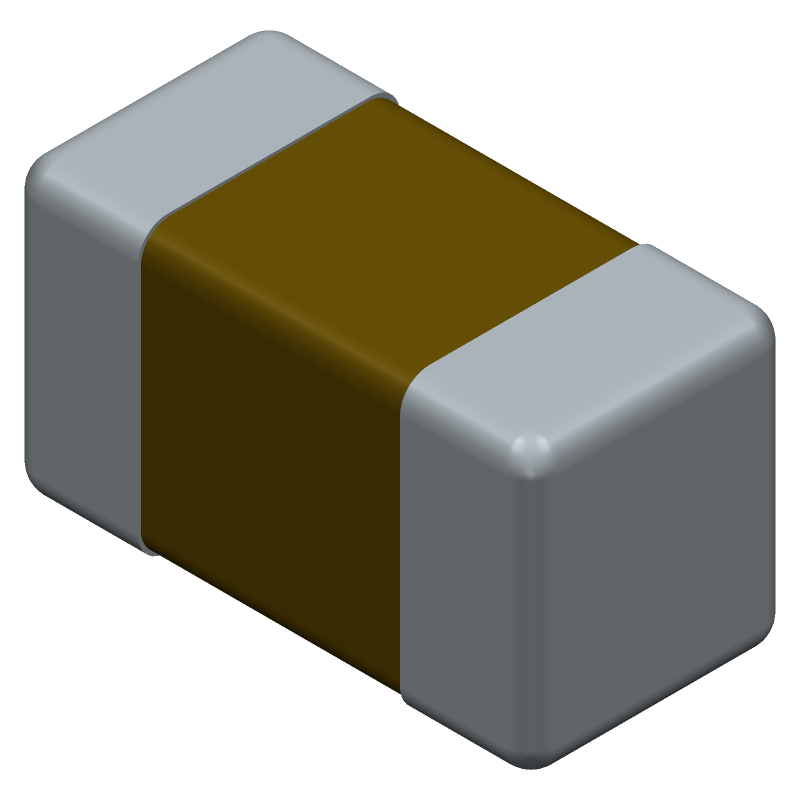

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
04025U5R6BAT2A Part Data Attributes
|
|
04025U5R6BAT2A
Kyocera AVX Components
Buy Now
Datasheet
|
Compare Parts:
04025U5R6BAT2A
Kyocera AVX Components
Ceramic Capacitor, Multilayer, Ceramic, 50V, 1.79% +Tol, 1.79% -Tol, C0G, 30ppm/Cel TC, 0.0000056uF, Surface Mount, 0402, CHIP, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Chip | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.23.00.20 | |
| Factory Lead Time | 10 Weeks | |
| Capacitance | 0.0000056 µF | |
| Capacitor Type | Ceramic Capacitor | |
| Dielectric Material | Ceramic | |
| Height | 0.6 Mm | |
| JESD-609 Code | e3 | |
| Length | 1 Mm | |
| Mounting Feature | Surface Mount | |
| Multilayer | No | |
| Negative Tolerance | 1.79% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | Rectangular Package | |
| Package Style | Smt | |
| Packing Method | Tr, 7 Inch | |
| Positive Tolerance | 1.79% | |
| Rated (DC) Voltage (URdc) | 50 V | |
| Size Code | 0402 | |
| Surface Mount | Yes | |
| Temperature Characteristics Code | C0G | |
| Temperature Coefficient | 30ppm/Cel Ppm/°C | |
| Terminal Finish | Matte Tin Over Nickel | |
| Terminal Shape | Wraparound | |
| Width | 0.5 Mm |
Alternate Parts for 04025U5R6BAT2A
This table gives cross-reference parts and alternative options found for 04025U5R6BAT2A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 04025U5R6BAT2A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 0402N5R6B500DHW-HK | Knowles Capacitors | Check for Price | Ceramic Capacitor, Ceramic, 50V, 1.7857% +Tol, 1.7857% -Tol, C0G, -/+30ppm/Cel TC, 0.0000056uF, 0402, | 04025U5R6BAT2A vs 0402N5R6B500DHW-HK |
| MC0402COG5R6B500NB | Metuchen Capacitors Inc | Check for Price | Ceramic Capacitor, Ceramic, 50V, 1.7857% +Tol, 1.7857% -Tol, C0G, -/+30ppm/Cel TC, 0.0000056uF, 0402, | 04025U5R6BAT2A vs MC0402COG5R6B500NB |
| MQ025A5R6BGT6A | Kyocera AVX Components | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, 1.7857% +Tol, 1.7857% -Tol, C0G, 30ppm/Cel TC, 0.0000056uF, Surface Mount, 0402, CHIP | 04025U5R6BAT2A vs MQ025A5R6BGT6A |
| BC025A5R6BZT3AA0 | Kyocera AVX Components | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, 1.7857% +Tol, 1.7857% -Tol, C0G, 30ppm/Cel TC, 0.0000056uF, Surface Mount, 0402, CHIP | 04025U5R6BAT2A vs BC025A5R6BZT3AA0 |
| 0402N5R6B500PHT-HK | Knowles Capacitors | Check for Price | Ceramic Capacitor, Ceramic, 50V, 1.7857% +Tol, 1.7857% -Tol, C0G, -/+30ppm/Cel TC, 0.0000056uF, 0402, | 04025U5R6BAT2A vs 0402N5R6B500PHT-HK |
| BC025A5R6BZT6SA2 | Kyocera AVX Components | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, 1.7857% +Tol, 1.7857% -Tol, C0G, 30ppm/Cel TC, 0.0000056uF, Surface Mount, 0402, CHIP | 04025U5R6BAT2A vs BC025A5R6BZT6SA2 |
| BC025A5R6BZB1AA0 | Kyocera AVX Components | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, 1.7857% +Tol, 1.7857% -Tol, C0G, 30ppm/Cel TC, 0.0000056uF, Surface Mount, 0402, CHIP | 04025U5R6BAT2A vs BC025A5R6BZB1AA0 |
| 0402G5R6B500SNT | Capax Technologies Inc | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, 1.7857% +Tol, 1.7857% -Tol, NP0, -/+30ppm/Cel TC, 0.0000056uF, 0402, | 04025U5R6BAT2A vs 0402G5R6B500SNT |
| BC025A5R6BZT9AA1 | Kyocera AVX Components | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, 1.7857% +Tol, 1.7857% -Tol, C0G, 30ppm/Cel TC, 0.0000056uF, Surface Mount, 0402, CHIP | 04025U5R6BAT2A vs BC025A5R6BZT9AA1 |
| 0402N5R6B500V | Knowles Capacitors | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, 1.7857% +Tol, 1.7857% -Tol, C0G, -/+30ppm/Cel TC, 0.0000056uF, 0402, | 04025U5R6BAT2A vs 0402N5R6B500V |
04025U5R6BAT2A Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the 04025U5R6BAT2A capacitor is between 250°C to 260°C for a maximum of 3 seconds.
-
Yes, the 04025U5R6BAT2A capacitor is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high self-resonant frequency.
-
The 04025U5R6BAT2A capacitor is rated for operation up to 125°C, but it's not recommended for use in extreme high-temperature environments. Derating may be necessary for temperatures above 85°C.
-
The maximum voltage derating for the 04025U5R6BAT2A capacitor is 80% of the rated voltage at 125°C, and 90% at 85°C or below.
-
Yes, the 04025U5R6BAT2A capacitor is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant.
