Connectors / Headers and Edge Type Connectors / 09031966921
Datasheets
09031966921 by: HARTING Technology Group

Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle,

Part Details for 09031966921 by HARTING Technology Group

Results Overview of 09031966921 by HARTING Technology Group

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Computing and Data Storage

09031966921 Information

09031966921 by HARTING Technology Group is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 09031966921

Part # Distributor Description Stock Price Buy
DISTI # 96F2677
Newark Din 41612 Pcb Connector, Plug, 96 Way, Product Range:Din-Signal Series, No. Of Contacts:96Contacts, Gender:Plug, Pitch Spacing:2.54Mm, No. Of Rows:3 Row, Rows Loaded:A + B + C, Contact Plating:Gold Plated Contacts, No. Of Rows:3 Rohs Compliant: Yes |Harting 09031966921 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 2182
  • 1 $6.6000
  • 10 $6.0600
  • 25 $5.7800
  • 50 $5.6600
  • 100 $5.3200
  • 250 $4.8200
  • 500 $4.6300
  • 1,000 $4.1000
$4.1000 / $6.6000 Buy Now
DISTI # 70070311
RS CONNECTOR DIN 41612 96P 2A MALE R/A SLDR Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks, 0 Days Container: Bulk 0
  • 1 $5.5200
  • 5 $5.0800
  • 10 $4.4100
$4.4100 / $5.5200 RFQ
DISTI # HRT09031966921
Heilind Electronics DIN-SIGNAL C096MS-3,0C1-2 Americas - 1194 in Stock
  • 1 $3.7778
  • 50 $3.2903
  • 130 $3.1385
  • 250 $3.0448
  • 500 $2.9565
$2.9565 / $3.7778 Buy Now
Bristol Electronics   30
RFQ
DISTI # 09031966921
TME Connector: DIN 41612, socket, male, PIN: 96, angled 90°, 2A, THT Min Qty: 1 217
  • 1 $4.3400
  • 10 $3.3200
  • 100 $3.2400
$3.2400 / $4.3400 Buy Now
ComSIT USA Electronic Component RoHS: Compliant Stock DE - 0
Stock ES - 33
Stock US - 0
Stock MX - 0
Stock CN - 0
Stock HK - 0
RFQ
DISTI # 09031966921
IBS Electronics CONNECTOR DIN 41612 96P 2A MALE R/A SLDR | HARTING 09031966921 Min Qty: 4 Package Multiple: 1 904
  • 4 $3.8500
  • 20 $3.7660
  • 50 $3.7240
  • 150 $3.6680
  • 400 $3.5700
$3.5700 / $3.8500 Buy Now
Powell Electronics DIN 41612 Connectors 96P 2A MALE R/A SLD Min Qty: 1 602
  • 1 $2.9400
  • 500 $2.7900
$2.7900 / $2.9400 Buy Now
Dynamic Solutions GmbH   120
RFQ
New Advantage Corporation Type C 96 Position 2.54 mm Pitch Male Right Angle Board to Board Connector RoHS: Compliant Min Qty: 1 Package Multiple: 100 500
  • 100 $4.6000
  • 500 $4.2500
$4.2500 / $4.6000 Buy Now
Win Source Electronics CONN DIN HDR 96POS PCB RA 15000
  • 21 $2.4545
  • 50 $2.0140
  • 77 $1.9511
  • 106 $1.8881
  • 137 $1.8252
  • 184 $1.6364
$1.6364 / $2.4545 Buy Now

US Tariff Estimator: 09031966921 by HARTING Technology Group

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

09031966921
HARTING Technology Group
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for 09031966921

09031966921 CAD Models

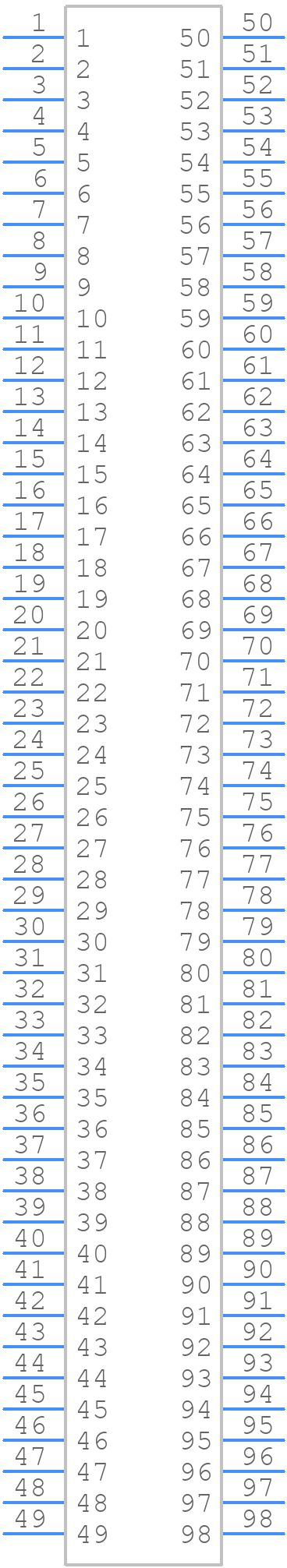

  • Part Symbol

    schematic symbol

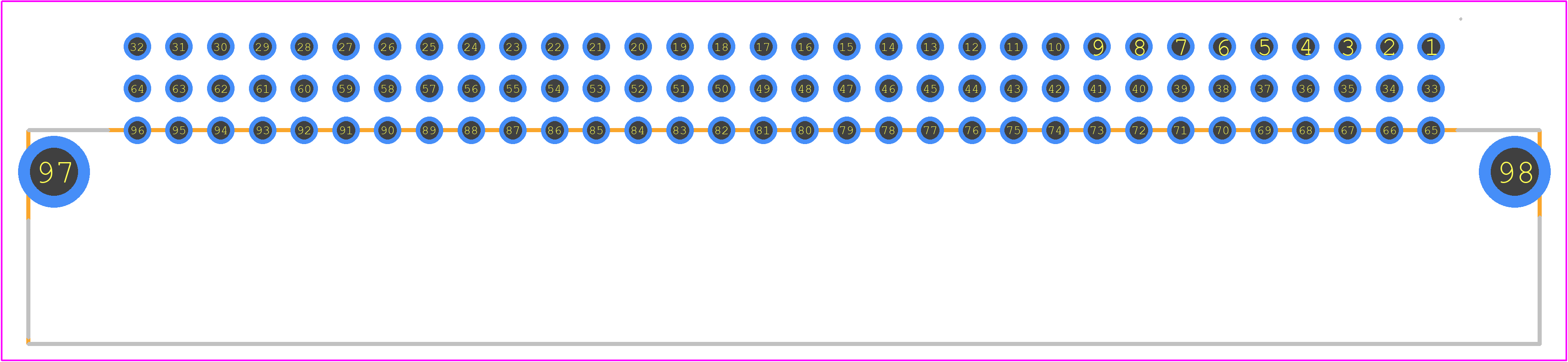

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

09031966921 Part Data Attributes

Parametric Data
09031966921 HARTING Technology Group
Buy Now Datasheet
Compare Parts:
09031966921 HARTING Technology Group Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle,
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Additional Feature Standard: Din 41612
Board Mounting Option Hole 0.11
Body Breadth 0.437 Inch
Body Depth 0.698 Inch
Body Length 3.701 Inch
Connector Type Board Euro Connector
Contact Finish Mating Not Specified
Contact Finish Termination Tin (Sn) - With Nickel (Ni) Barrier
Contact Gender Male
Contact Material Not Specified
Contact Pattern Rectangular
Contact Resistance 20 MΩ
Contact Style Sq Pin-Skt
DIN Conformance Yes
Dielectric Withstanding Voltage 1000vac V
Durability 400 Cycles
Filter Feature No
IEC Conformance No
Insertion Force-Max 90 N
Insulation Resistance 1000000000000 Ω
Insulator Color Gray
Insulator Material Glass Filled Polyethylene
JESD-609 Code e3
MIL Conformance No
Mating Contact Pitch 0.1 Inch
Mating Contact Row Spacing 0.1 Inch
Mixed Contacts No
Mounting Option 1 Locking
Mounting Style Right Angle
Mounting Type Board
Name of Rows Loaded A,B,C
Number Of Connectors One
Number Of PCB Rows 3
Number of Rows Loaded 3
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Option General Purpose
PCB Contact Pattern Rectangular
PCB Contact Row Spacing 2.54 Mm
Polarization Key Polarized Housing
Rated Current (Signal) 2 A
Reference Standard Ul
Terminal Length 0.118 Inch
Terminal Pitch 2.54 Mm
Termination Type Solder
Total Number of Contacts 96
UL Flammability Code 94V-0
Withdrawl Force-Min 60 N

Alternate Parts for 09031966921

This table gives cross-reference parts and alternative options found for 09031966921. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 09031966921, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
09031967921 HARTING Technology Group $2.5580 Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle, 09031966921 vs 09031967921
09031962921222 HARTING Technology Group $8.8823 Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal, 09031966921 vs 09031962921222
09031965921 HARTING Technology Group $9.5920 Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal 09031966921 vs 09031965921
DIN-96MR-L33-A1C3 Adam Technologies Inc Check for Price Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Hole .087-.098, Receptacle 09031966921 vs DIN-96MR-L33-A1C3
Part Number Manufacturer Composite Price Description Compare
09031966921222 HARTING Technology Group $6.8262 Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, 09031966921 vs 09031966921222
equivalents icon

09031966921 Related Parts

09031966921 Frequently Asked Questions (FAQ)

  • The recommended torque is 0.5 Nm to 1.5 Nm, depending on the application and environmental conditions.

  • Yes, the connector is designed to be used in harsh environments, including outdoor applications, and meets the IP67 standard for ingress protection.

  • Yes, the connector is designed to withstand high-vibration environments, with a vibration resistance of up to 10g according to IEC 60068-2-6.

  • The connector is designed to operate in temperatures ranging from -40°C to 125°C, making it suitable for use in a wide range of applications.

  • The connector is designed to be compatible with other manufacturers' connectors that meet the IEC 61076-2-101 standard, but compatibility should be verified before use.
