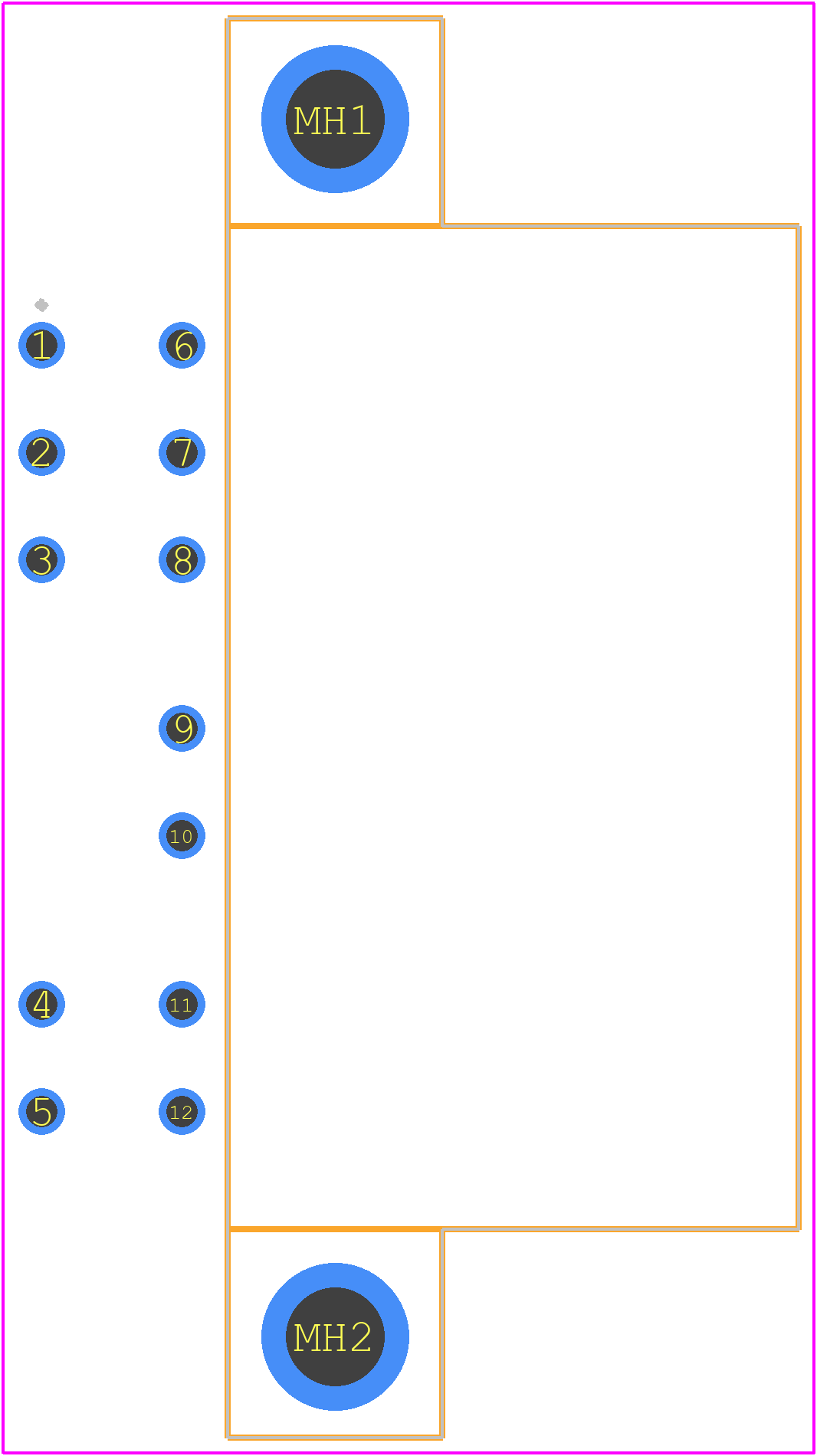

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 173858-1 by TE Connectivity
Results Overview of 173858-1 by TE Connectivity
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
173858-1 Information
173858-1 by TE Connectivity is a Combination Line Connector.
Combination Line Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 173858-1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
88W1721
|
Newark | Rectangular Conn, Rcpt, 12Pos, 2Row, No. Of Contacts:12Contacts, Product Range:Multi-Lock Series, Connector Mounting:Pcb Mount, Contact Termination Type:Through Hole, Pitch Spacing:-, Gender:Receptacle, Contact Gender:Pin Rohs Compliant: Yes |Amp Te Connectivity 173858-1 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 1108 |
|
$1.3300 | Buy Now |
|
DISTI #
173858-1
|
Avnet Americas | Conn Multilock Connector RCP 12 POS Solder RA Thru-Hole - Bag (Alt: 173858-1) COO: Japan RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 18 Weeks, 0 Days Container: Bag | 0 |
|
$1.0871 / $1.1914 | Buy Now |
|
DISTI #
AMP173858-1
|
Heilind Electronics | 070 MULTILOCK CAP ASSY 12P | Americas - 0 in Stock |
|
$1.2790 | Buy Now |
|
|
Bristol Electronics | 40 |
|
RFQ | ||
|
DISTI #
AMP173858-1
|
Interstate Connecting Components | 070 MULTILOCK CAP ASSY 12P | 0 |
|
$1.2790 | Buy Now |
|
DISTI #
000000000000837557
|
Sager | Automotive Connectors 12 POS MULTILOCK Min Qty: 500 | 0 |
|
$1.4500 | Buy Now |
|
DISTI #
173858-1
|
Avnet Abacus | Conn Multilock Connector RCP 12 POS Solder RA ThruHole (Alt: 173858-1) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 21 Weeks, 0 Days | Abacus - 1500 |
|
Buy Now | |
|
DISTI #
173858-1
|
Avnet Abacus | Conn Multilock Connector RCP 12 POS Solder RA ThruHole (Alt: 173858-1) RoHS: Compliant Min Qty: 500 Package Multiple: 50 Lead time: 23 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
DISTI #
173858-1
|
Chip One Stop | Interconnects RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Bulk | 500 |
|
$0.8540 / $2.0500 | Buy Now |
|
|
LCSC | 2 5.9mm Right Angle Through HoleRight Angle Wire To Board Connector ROHS | 218 |
|
$1.0914 / $1.8369 | Buy Now |
Part Details for 173858-1
173858-1 CAD Models
173858-1 Part Data Attributes
|
|
173858-1
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
173858-1
TE Connectivity
070 MULTILOCK CAP ASSY 12P
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 18 Weeks | |
| Samacsys Manufacturer | TE Connectivity | |
| Additional Feature | MULTILOCK | |
| Body Breadth | 1.823 inch | |
| Body Length | 0.981 inch | |
| Connector Type | COMBINATION LINE CONNECTOR | |
| Contact Finish Mating | NOT APPLICABLE | |
| Contact Finish Termination | Matte Tin (Sn) | |
| Contact Gender | MALE | |
| Contact Material | NOT APPLICABLE | |
| DIN Conformance | NO | |
| EMI Shielded | NO | |
| Empty Shell | YES | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insulator Material | POLYBUTYLENE TEREPHTHALATE | |
| JESD-609 Code | e3 | |
| MIL Conformance | NO | |
| Mains Connector Rating | 115/230VAC | |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE | |
| Mixed Contacts | NO | |
| Mounting Style | RIGHT ANGLE | |
| Mounting Type | BOARD | |
| Number of Ports | 1 | |
| Number of Rows Loaded | 2 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -30 °C | |
| Option | GENERAL PURPOSE | |
| Panel Mount | NO | |
| Rated Voltage | 12 V | |
| Terminal Pitch | 3.5 mm | |
| Termination Type | SOLDER | |
| Total Number of Contacts | 12 |
173858-1 Frequently Asked Questions (FAQ)
-
The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific guidance.
-
Yes, the 173858-1 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure fastening to prevent connector damage or disconnection. Consult TE Connectivity's vibration testing data and application notes for more information.
-
The 173858-1 connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
-
The 173858-1 connector has a IP67 rating, making it suitable for use in harsh environments. However, it's crucial to ensure proper sealing and protection to maintain the IP67 rating. Consult TE Connectivity's environmental testing data and application notes for more information.
-
The maximum current rating for the 173858-1 connector is 3A per contact. However, it's essential to consider the specific application, wire size, and insulation to ensure reliable performance and prevent overheating.
