Part Details for 1N4007 by Diotec Semiconductor AG
Results Overview of 1N4007 by Diotec Semiconductor AG
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (9 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Energy and Power Systems
1N4007 Information
1N4007 by Diotec Semiconductor AG is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for 1N4007
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 1750 |
|
RFQ | ||
|
DISTI #
1N4007-DIO
|
TME | Diode: rectifying, THT, 1kV, 1A, Ammo Pack, Ifsm: 27A, DO204AC,DO41 Min Qty: 1 | 216487 |
|
$0.0146 / $0.0900 | Buy Now |
|
|
ComSIT USA | AVAILABLE EU | 4016 |
|
RFQ | |
|
|
ComSIT USA | AXIAL-LEAD GLASS PASSIVATED STANDARD RECOVERY RECTIFIER Rectifier Diode, 1 Phase, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41 ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
DLGL5729
|
Rutronik | SI-DIODE 1A 1000V DO41 RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Container: Ammo Pack |
Stock DE - 1225000 Stock HK - 0 Stock US - 0 Stock SG - 0 |
|
$0.0158 / $0.0190 | Buy Now |
|
|
Chip 1 Exchange | INSTOCK | 30000 |
|
RFQ |
US Tariff Estimator: 1N4007 by Diotec Semiconductor AG
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 1N4007
1N4007 CAD Models
-
Part Symbol
-

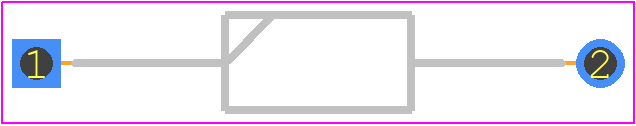

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
1N4007 Part Data Attributes
|
|
1N4007
Diotec Semiconductor AG
Buy Now
Datasheet
|
Compare Parts:
1N4007
Diotec Semiconductor AG
Rectifier Diode, 1 Phase, 1 Element, 1A, 1000V V(RRM), Silicon, DO-204AC
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | DO-204 | |
| Package Description | Do-41, 2 Pin | |
| Pin Count | 2 | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Application | General Purpose | |
| Case Connection | Isolated | |
| Configuration | Single | |
| Diode Element Material | Silicon | |
| Diode Type | Rectifier Diode | |
| Forward Voltage-Max (VF) | 1.1 V | |
| JEDEC-95 Code | DO-204AC | |
| JESD-30 Code | O-PALF-W2 | |
| JESD-609 Code | e3 | |
| Non-rep Pk Forward Current-Max | 30 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -50 °C | |
| Output Current-Max | 1 A | |
| Package Body Material | Plastic/Epoxy | |
| Package Shape | Round | |
| Package Style | Long Form | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 1000 V | |
| Reverse Current-Max | 5 µA | |
| Reverse Recovery Time-Max | 1.5 µS | |
| Reverse Test Voltage | 1000 V | |
| Surface Mount | No | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | Wire | |
| Terminal Position | Axial | |
| Time@Peak Reflow Temperature-Max (s) | 10 |
Alternate Parts for 1N4007
This table gives cross-reference parts and alternative options found for 1N4007. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1N4007, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| UF4007 | Shanghai Lunsure Electronic Technology Co Ltd | Check for Price | Rectifier Diode, 1 Phase, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41 | 1N4007 vs UF4007 |
| UF4007G | Galaxy Microelectronics | Check for Price | Rectifier Diode, 1 Phase, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41 | 1N4007 vs UF4007G |
| 1N4007G | Galaxy Microelectronics | Check for Price | Rectifier Diode, 1 Phase, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41 | 1N4007 vs 1N4007G |
| MUR1100-T | Micro Commercial Components | Check for Price | Rectifier Diode | 1N4007 vs MUR1100-T |
| 1N4007G | Galaxy Semi-Conductor Co Ltd | Check for Price | Rectifier Diode, 1 Phase, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41 | 1N4007 vs 1N4007G |
| UF4007 | LRC Leshan Radio Co Ltd | Check for Price | Rectifier Diode, 1 Phase, 1 Element, 1A, 1000V V(RRM), DO-41 | 1N4007 vs UF4007 |
| UF4007 | Shandong Yiguang Electronic Joint Stock Co Ltd | Check for Price | Rectifier Diode, 1 Phase, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41 | 1N4007 vs UF4007 |
| UF4007 | KEC | Check for Price | Rectifier Diode, 1 Phase, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41 | 1N4007 vs UF4007 |
| MUR1100 | Shanghai Lunsure Electronic Technology Co Ltd | Check for Price | Rectifier Diode, 1 Phase, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41 | 1N4007 vs MUR1100 |
1N4007 Frequently Asked Questions (FAQ)
-
The 1N4007 can handle surge currents up to 30A for a duration of 1/2 cycle (8.3ms) at 60Hz.
-
The 1N4007 is rated for operation up to 150°C, making it suitable for high-temperature applications.
-
Yes, the 1N4007 is suitable for use in switching power supplies due to its fast recovery time and low forward voltage drop.
-
The typical reverse recovery time of the 1N4007 is around 2-3 microseconds.
-
Yes, multiple 1N4007 diodes can be connected in parallel to increase the overall current handling capability, but care must be taken to ensure equal current sharing.
