Diodes / Zener Diodes / 1N5333BG
Datasheets
1N5333BG by: onsemi

5 Watt Surmetic 40 Zener Voltage Regulators 3.3 V, Surmetic 40, Axial Lead, 1000-BLKBX

Part Details for 1N5333BG by onsemi

Overview of 1N5333BG by onsemi

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems Electronic Manufacturing Renewable Energy Automotive

Price & Stock for 1N5333BG

Part # Distributor Description Stock Price Buy
DISTI # 39K0591
Newark Zener Single Diode, 3.3 V, 5 W, 017Aa, 5 %, 2, 200 C Rohs Compliant: Yes |Onsemi 1N5333BG RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Bulk 25919
  • 1 $0.1850
  • 10 $0.1850
  • 100 $0.1850
  • 500 $0.1700
  • 1,000 $0.1570
  • 3,000 $0.1570
  • 10,000 $0.1570
$0.1570 / $0.1850 Buy Now
DISTI # 82AC0829
Newark Zen Sur40 Reg 5W 3.3V Rohs Compliant: Yes |Onsemi 1N5333BG RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Bulk 1000
  • 3,000 $0.1740
  • 10,000 $0.1540
$0.1540 / $0.1740 Buy Now
DISTI # 42K2843
Newark Zener Diode, 5W, 3.3V, 017Aa, Zener Voltage Nom:3.3V, Power Dissipation:5W, Diode Case Style:017Aa, No. Of Pins:2Pins, Operating Temperature Max:200°C, Diode Mounting:Through Hole, Product Range:1N53 Series, Qualification:- Rohs Compliant: Yes |Onsemi 1N5333BG RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 435
  • 1 $0.4900
  • 10 $0.4230
  • 100 $0.2980
  • 500 $0.2340
  • 1,000 $0.1930
  • 3,000 $0.1740
  • 10,000 $0.1540
$0.1540 / $0.4900 Buy Now
DISTI # 1N5333BG
Avnet Americas Diode Zener Single 3.3V 5% 5W 2-Pin Case 017AA-01 Box - Bulk (Alt: 1N5333BG) RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Lead time: 8 Weeks, 0 Days Container: Bulk 1000
  • 5,000 $0.1348
  • 7,000 $0.1341
  • 12,000 $0.1248
  • 25,000 $0.1205
  • 50,000 $0.1197
$0.1197 / $0.1348 Buy Now
DISTI # 42K2843
Avnet Americas Diode Zener Single 3.3V 5% 5W 2-Pin Case 017AA-01 Box - Bulk (Alt: 42K2843) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 32 Weeks, 1 Days Container: Bulk 335 Partner Stock
  • 1 $0.1930
  • 500 $0.2340
  • 1,000 $0.1930
  • 3,000 $0.1740
  • 10,000 $0.1540
$0.1540 / $0.2340 Buy Now
DISTI # 1N5333BG
TME Diode: Zener, 5W, 3.3V, bulk, CASE017AA, single diode, 300uA Min Qty: 1 12
  • 1 $0.5020
  • 10 $0.3340
  • 50 $0.2870
  • 100 $0.2270
  • 200 $0.2150
  • 250 $0.2080
  • 500 $0.1780
  • 1,000 $0.1750
$0.1750 / $0.5020 Buy Now
DISTI # 1N5333BG
Avnet Asia Diode Zener Single 3.3V 5% 5W 2-Pin Case 017AA-01 Box (Alt: 1N5333BG) RoHS: Compliant Min Qty: 5000 Package Multiple: 1000 Lead time: 8 Weeks, 0 Days 0
  • 5,000 $0.1379
  • 10,000 $0.1361
  • 15,000 $0.1344
  • 25,000 $0.1327
  • 50,000 $0.1294
  • 125,000 $0.1263
  • 250,000 $0.1233
$0.1233 / $0.1379 Buy Now
DISTI # 1N5333BG
Avnet Silica Diode Zener Single 3.3V 5% 5W 2-Pin Case 017AA-01 Box (Alt: 1N5333BG) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 9 Weeks, 0 Days Silica - 0
Buy Now
DISTI # 1N5333BG
EBV Elektronik Diode Zener Single 3.3V 5% 5W 2-Pin Case 017AA-01 Box (Alt: 1N5333BG) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 10 Weeks, 0 Days EBV - 3000
Buy Now
Flip Electronics Stock, ship today 5000
RFQ
LCSC 5W 3.3V PluginD3.3xL8.38mm Zener Diodes ROHS 88
  • 1 $0.2683
  • 10 $0.2636
  • 30 $0.2590
  • 100 $0.2559
$0.2559 / $0.2683 Buy Now
New Advantage Corporation   RoHS: Compliant Min Qty: 1 Package Multiple: 1000 2000
  • 1,000 $0.2387
  • 2,000 $0.2209
$0.2209 / $0.2387 Buy Now

Part Details for 1N5333BG

1N5333BG CAD Models

  • Part Symbol

    Part Symbol

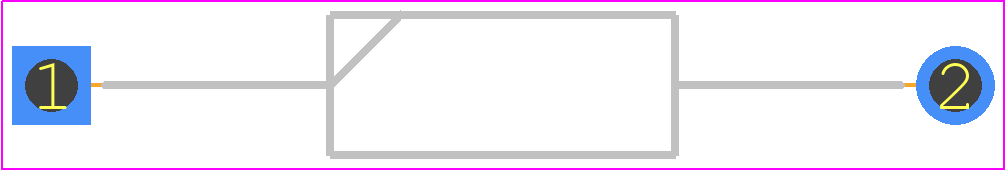

  • Footprint

    footprint

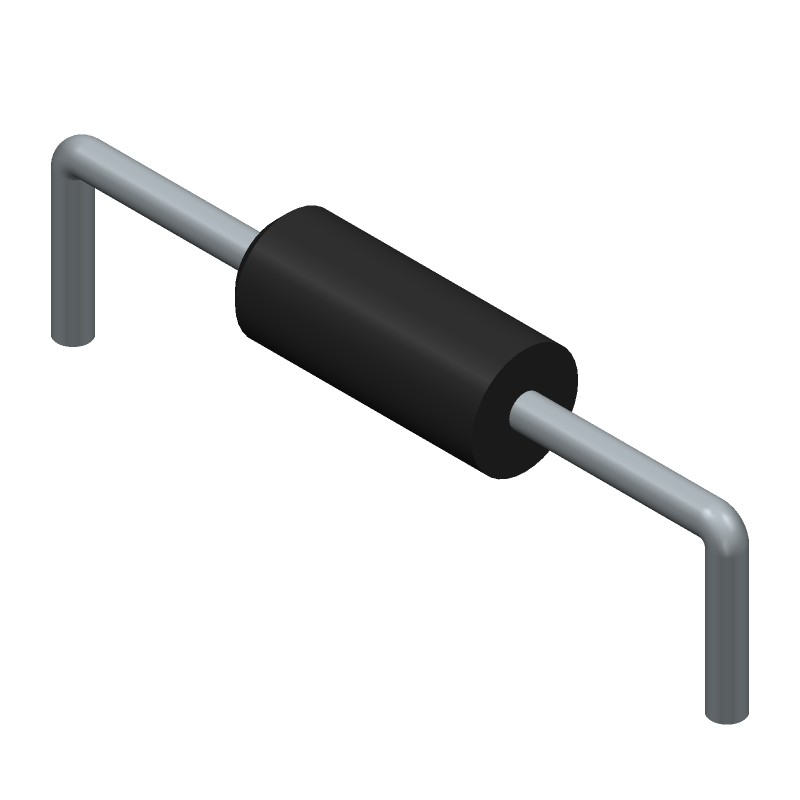

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

1N5333BG Part Data Attributes

Parametric Data
1N5333BG onsemi
Buy Now Datasheet
Compare Parts:
1N5333BG onsemi 5 Watt Surmetic 40 Zener Voltage Regulators 3.3 V, Surmetic 40, Axial Lead, 1000-BLKBX
Pbfree Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ONSEMI
Part Package Code Surmetic 40, Axial Lead
Package Description ROHS COMPLIANT, PLASTIC, CASE 017AA-01, 2 PIN
Pin Count 0
Manufacturer Package Code 017AA
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8541.10.00.50
Factory Lead Time 32 Weeks, 1 Day
Samacsys Manufacturer onsemi
Case Connection ISOLATED
Configuration SINGLE
Diode Element Material SILICON
Diode Type ZENER DIODE
Dynamic Impedance-Max 3 Ω
JESD-30 Code O-PALF-W2
JESD-609 Code e3
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 200 °C
Operating Temperature-Min -65 °C
Package Body Material PLASTIC/EPOXY
Package Shape ROUND
Package Style LONG FORM
Polarity UNIDIRECTIONAL
Power Dissipation-Max 5 W
Qualification Status Not Qualified
Reference Voltage-Nom 3.3 V
Surface Mount NO
Technology ZENER
Terminal Finish MATTE TIN
Terminal Form WIRE
Terminal Position AXIAL
Voltage Tol-Max 5%
Working Test Current 380 mA

Alternate Parts for 1N5333BG

This table gives cross-reference parts and alternative options found for 1N5333BG. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1N5333BG, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
1N5333BTR Microsemi Corporation Check for Price Zener Diode, 3.3V V(Z), 5%, 5W, Silicon, Unidirectional, PLASTIC, T-18, 2 PIN 1N5333BG vs 1N5333BTR
1N5333BE3TR Microsemi Corporation Check for Price Zener Diode, 3.3V V(Z), 5%, 5W, Silicon, Unidirectional, ROHS COMPLIANT, PLASTIC, T-18, 2 PIN 1N5333BG vs 1N5333BE3TR
1N5333B Semitronics Corp Check for Price Zener Diode, 3.3V V(Z), 5%, 5W, Silicon, Unidirectional, DO-27, 2 PIN 1N5333BG vs 1N5333B
1N5333B Baneasa SA Check for Price Zener Diode, 3.3V V(Z), 5%, Silicon, Unidirectional 1N5333BG vs 1N5333B
1N5333B Motorola Mobility LLC Check for Price 3.3V, 5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, PLASTIC, CASE 17-02, 2 PIN 1N5333BG vs 1N5333B
1N5333BRL Motorola Mobility LLC Check for Price 3.3V, 5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, PLASTIC, CASE 17-02, 2 PIN 1N5333BG vs 1N5333BRL
1N5333B International Semiconductor Inc Check for Price Zener Diode, 3.3V V(Z), 5%, 5W, Silicon, Unidirectional 1N5333BG vs 1N5333B
1N5333B/TR8 Microsemi Corporation Check for Price Zener Diode, 3.3V V(Z), 5%, 5W, Silicon, Unidirectional, PLASTIC, T-18, 2 PIN 1N5333BG vs 1N5333B/TR8
1N5333BE3/TR Microsemi Corporation Check for Price Zener Diode, 3.3V V(Z), 5%, 5W, Silicon, Unidirectional, ROHS COMPLIANT, PLASTIC, T-18, 2 PIN 1N5333BG vs 1N5333BE3/TR
1N5333BRL onsemi Check for Price 3.3V, 5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-41, PLASTIC, CASE 017AA-01, 2 PIN 1N5333BG vs 1N5333BRL
Part Number Manufacturer Composite Price Description Compare
1N5913BRLG onsemi $0.1575 3.0 W Zener Diode Voltage Regulator 3.3 V, Axial Lead 5.20x2.70mm, 25.4x0.71mm Pkg, Lead len/dia, 6000-REEL 1N5333BG vs 1N5913BRLG
1N5333 Motorola Semiconductor Products Check for Price Zener Diode, 3.3V V(Z), 20%, 5W, Silicon, Unidirectional 1N5333BG vs 1N5333
MX1N5913BGTR Microsemi Corporation Check for Price Zener Diode, 3.3V V(Z), 5%, 1.5W, Silicon, Unidirectional, DO-204AL, HERMETIC SEALED, GLASS, DO-41, 2 PIN 1N5333BG vs MX1N5913BGTR
MV1N5913AGTR Microsemi Corporation Check for Price Zener Diode, 3.3V V(Z), 10%, 1.5W, Silicon, Unidirectional, DO-204AL, HERMETIC SEALED, GLASS, DO-41, 2 PIN 1N5333BG vs MV1N5913AGTR
BZX85C3V3T26R Texas Instruments Check for Price 3.3V, 1.3W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-41 1N5333BG vs BZX85C3V3T26R
BZX85C3V3.TR Texas Instruments Check for Price 3.3V, 1.3W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-41 1N5333BG vs BZX85C3V3.TR
1N5913B Micro Commercial Components Check for Price Zener Diode, 3.3V V(Z), 5%, 1.5W, Silicon, Unidirectional, DO-41, GLASS, DO-41G, 2 PIN 1N5333BG vs 1N5913B
TCBZX85C3V3 Tak Cheong Electronics (Holdings) Co Ltd Check for Price Zener Diode, 3.3V V(Z), 6.06%, 1.3W, Silicon, Unidirectional, DO-41, ROHS COMPLIANT, HERMETIC SEALED, GLASS PACKAGE-2 1N5333BG vs TCBZX85C3V3
1N5913B onsemi Check for Price 3.3V, 1W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-41, PLASTIC, CASE 59-10, 2 PIN 1N5333BG vs 1N5913B
BZX85C3V3T26A Texas Instruments Check for Price 3.3V, 1.3W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-41 1N5333BG vs BZX85C3V3T26A
