2920L075DR Information
2920L075DR by Littelfuse Inc is a Non-linear Resistor.
Non-linear Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for 2920L075DR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
18M4791
|
Newark | Fuse, Ptc Reset, 30V, 750Ma, 2920, Pptc Case Style:2920 (7351 Metric), Product Range:Polyswitch 2920L Series, Voltage Rating:30Vdc, Holding Current:750Ma, Trip Current:1.5A, Time To Trip:0.3S, Current Rating Max:40A, Length:7.36Mm Rohs Compliant: Yes |Littelfuse 2920L075DR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1500 |
|
$0.4170 / $0.7990 | Buy Now |
|
DISTI #
05M2791
|
Newark | Fuse, Ptc Resettable, 30V, 750Ma, Full Reel, Pptc Case Style:2920 (7351 Metric), Product Range:Polyswitch 2920L Series, Voltage Rating:30Vdc, Holding Current:750Ma, Trip Current:1.5A, Time To Trip:0.3S, Current Rating Max:40A Rohs Compliant: Yes |Littelfuse 2920L075DR RoHS: Compliant Min Qty: 1500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.3060 / $0.3310 | Buy Now |
|
DISTI #
78R5564
|
Newark | Polyfuse, Ptc, 2920, 0.75A, Thermistor Mounting:Smd, Product Range:Polyfuse 2920L Series, Holding Current:750Ma, Tripping Current:1.5A, Voltage Rating:30Vdc, Operating Temperature Min:-40°C, Operating Temperature Max:85°C, Automotiverohs Compliant: Yes |Littelfuse 2920L075DR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$0.4540 / $0.7940 | Buy Now |
|
DISTI #
72244535
|
RS | FUSE, RESETTABLE, 2920L SERIES, PTC, SURFACE MOUNT, 30V, 750MA Min Qty: 1 Package Multiple: 1 Container: Bulk | 1490 |
|
$0.6000 / $0.7500 | Buy Now |
|
|
Bristol Electronics | 1900 |
|
RFQ | ||
|
|
Bristol Electronics | 1200 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 7 | 320 |
|
$0.2812 / $0.7500 | Buy Now |
|
DISTI #
2920L075DR
|
TME | Fuse: PTC polymer, 750mA, SMD, 2920L, 2920 Min Qty: 1 | 641 |
|
$0.2000 / $0.4900 | Buy Now |
|
|
ComSIT USA | SURFACE MOUNT RESETTABLE PTC THERMISTOR PTC Thermistor, 30V, 0.35ohm, Surface Mount ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
000000000007265402
|
Sager | PTC 30V POLYFUSE SURF MOUNT 2920 .750A Min Qty: 1500 | 0 |
|
$0.3049 / $0.3359 | Buy Now |
US Tariff Estimator: 2920L075DR by Littelfuse Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 2920L075DR
2920L075DR CAD Models
-
Part Symbol
-

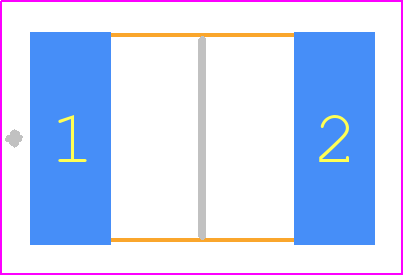

Footprint
-

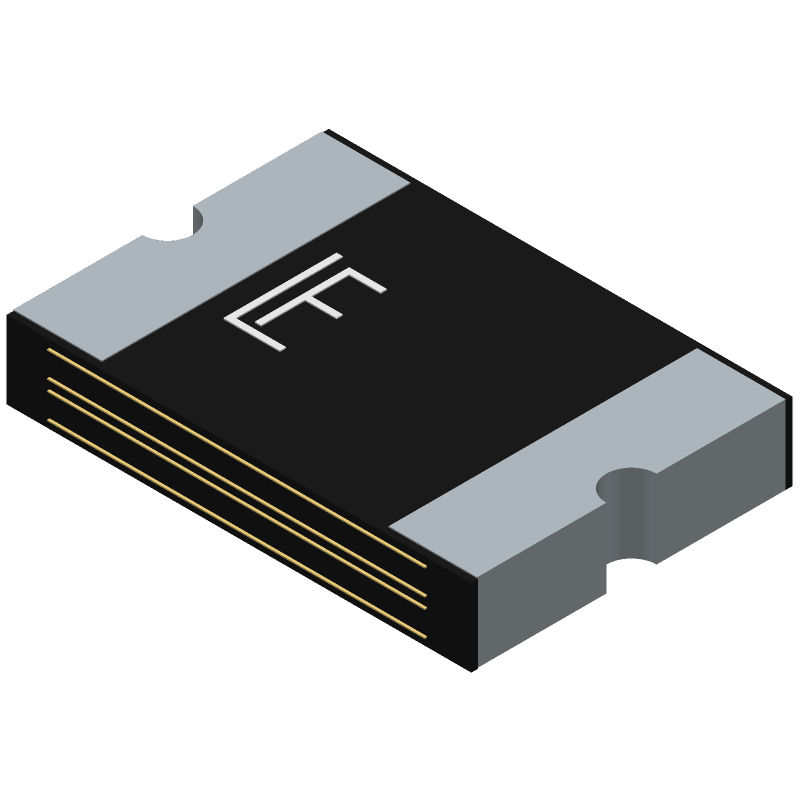

3D Model
