2N7002P,215 by:
Nexperia

Power Field-Effect Transistor, 0.36A I(D), 60V, 1.6ohm, 1-Element, N-Channel, Silicon, Trench Mosfet FET, TO-236AB

Part Details for 2N7002P,215 by Nexperia

Results Overview of 2N7002P,215 by Nexperia

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

2N7002P,215 Information

2N7002P,215 by Nexperia is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.

A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.

Price & Stock for 2N7002P,215

Part # Distributor Description Stock Price Buy
DISTI # 26AC6379
Newark 2N7002P/Sot23/To-236Ab Rohs Compliant: Yes |Nexperia 2N7002P,215 RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Tape & Reel 0
  • 3,000 $0.0330
  • 6,000 $0.0310
  • 12,000 $0.0300
  • 18,000 $0.0290
$0.0290 / $0.0330 Buy Now
DISTI # 97W3383
Newark Mosfet, N-Ch, 60V, 0.36A, 0.35W, To236Ab, Channel Type:N Channel, Drain Source Voltage Vds:60V, Continuous Drain Current Id:360Ma, Transistor Mounting:Surface Mount, Rds(On) Test Voltage:10V, Gate Source Threshold Voltage Max:1.75V Rohs Compliant: Yes |Nexperia 2N7002P,215 RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 1 Container: Tape & Reel 0
  • 3,000 $0.0470
$0.0470 Buy Now
DISTI # 28T0307
Newark Mosfet, n Channel,60V,0.36A, sot23, Channel Type:N Channel, Drain Source Voltage Vds:60V, Continuous Drain Current Id:360Ma, Transistor Mounting:Surface Mount, Rds(On) Test Voltage:10V, Gate Source Threshold Voltage Max:1.75V Rohs Compliant: Yes |Nexperia 2N7002P,215 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 0
  • 1 $0.2800
  • 10 $0.1850
  • 25 $0.1560
  • 50 $0.1260
  • 100 $0.0970
  • 250 $0.0970
  • 500 $0.0950
$0.0950 / $0.2800 Buy Now
DISTI # 2N7002P,215
Avnet Americas - Tape and Reel (Alt: 2N7002P,215) COO: China RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 53 Weeks, 1 Days Container: Tape & Reel 0
  • 3,000 $0.0377
  • 6,000 $0.0362
  • 12,000 $0.0348
  • 24,000 $0.0339
  • 48,000 $0.0325
$0.0325 / $0.0377 Buy Now
Bristol Electronics   Min Qty: 14 8885
  • 14 $0.3750
  • 41 $0.1875
  • 268 $0.1125
  • 1,335 $0.0750
  • 4,668 $0.0562
$0.0562 / $0.3750 Buy Now
Bristol Electronics   6620
RFQ
DISTI # 2N7002P.215
TME Transistor: N-MOSFET, Trench, unipolar, 60V, 0.28A, Idm: 1.2A, 420mW Min Qty: 1 100
  • 1 $0.1500
  • 10 $0.1070
  • 50 $0.0754
  • 100 $0.0647
  • 500 $0.0447
$0.0447 / $0.1500 Buy Now
DISTI # 2N7002P,215
Avnet Asia (Alt: 2N7002P,215) RoHS: Compliant Min Qty: 39000 Package Multiple: 3000 Lead time: 26 Weeks, 0 Days 96000
RFQ
Chip Stock Transistor:N-MOSFET, unipolar, 60V, 360mA, 1.6ohm, 350mW, -55+150deg.C, SMD, SOT23, AEC-Q100 103000
RFQ
Greenchips   Date Code: 23+/CN 27000
RFQ
Vyrian Other Function Semiconductors 6918
RFQ

Part Details for 2N7002P,215

2N7002P,215 CAD Models

  • Part Symbol

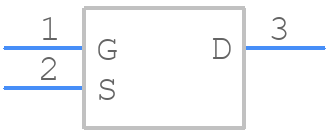

    schematic symbol

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

2N7002P,215 Part Data Attributes

Parametric Data
2N7002P,215 Nexperia
Buy Now Datasheet
Compare Parts:
2N7002P,215 Nexperia Power Field-Effect Transistor, 0.36A I(D), 60V, 1.6ohm, 1-Element, N-Channel, Silicon, Trench Mosfet FET, TO-236AB
Rohs Code Yes
Part Life Cycle Code Not Recommended
Part Package Code TO-236
Package Description Sot-23, 3 Pin
Pin Count 3
Manufacturer Package Code SOT23
Reach Compliance Code Compliant
ECCN Code EAR99
Factory Lead Time 8 Weeks
Configuration Single With Built-In Diode
DS Breakdown Voltage-Min 60 V
Drain Current-Max (ID) 0.36 A
Drain-source On Resistance-Max 1.6 Ω
FET Technology Trench Mosfet
Feedback Cap-Max (Crss) 4 Pf
JEDEC-95 Code TO-236AB
JESD-30 Code R-PDSO-G3
JESD-609 Code e3
Moisture Sensitivity Level 1
Number of Elements 1
Number of Terminals 3
Operating Mode Enhancement Mode
Operating Temperature-Max 150 °C
Operating Temperature-Min -55 °C
Package Body Material Plastic/Epoxy
Package Shape Rectangular
Package Style Small Outline
Peak Reflow Temperature (Cel) 260
Polarity/Channel Type N-Channel
Power Dissipation-Max (Abs) 1.14 W
Pulsed Drain Current-Max (IDM) 1.2 A
Reference Standard Aec-Q101; Iec-60134
Surface Mount Yes
Terminal Finish Tin
Terminal Form Gull Wing
Terminal Position Dual
Time@Peak Reflow Temperature-Max (s) 30
Transistor Application Switching
Transistor Element Material Silicon
