Part Details for 3.14.100.001/0000 by RAFI GmbH & Co Kg
Results Overview of 3.14.100.001/0000 by RAFI GmbH & Co Kg
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Aerospace and Defense
Agriculture Technology
Robotics and Drones
3.14.100.001/0000 Information
3.14.100.001/0000 by RAFI GmbH & Co Kg is a Keypad Switch.
Keypad Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| CS-USBAB00000-000.5 | Amphenol Cables on Demand | Amphenol CS-USBAB00000-000.5 Molded USB 2.0 Cable - Type A-B 0.5m | |
| CS-USBAB00000-003 | Amphenol Cables on Demand | Amphenol CS-USBAB00000-003 Molded USB 2.0 Cable - Type A-B 3m | |
| CS-USBAA00000-001 | Amphenol Cables on Demand | Amphenol CS-USBAA00000-001 Molded USB 2.0 Cable - Type A-A 1m |
Price & Stock for 3.14.100.001/0000
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
74M6964
|
Newark | Switch, Spst-No, 0.1A, 35V, Tht, Product Range:Rf 15 Series, Actuator Orientation:Top Actuated, Switch Mounting:Through Hole, Actuator Style:Square Button, Actuating Force:296Gf, Contact Rating:100Ma At 35Vdc, Switch Dimensions (L X Rohs Compliant: Yes |Rafi 3.14.100.001/0000 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 1819 |
|
$2.0800 | Buy Now |
|
DISTI #
1715-3.14.100.001/0000-ND
|
DigiKey | SWITCH TACTILE SPST-NO 0.1A 35V Min Qty: 1 Lead time: 12 Weeks Container: Tube |
2956 In Stock |
|
$2.0775 / $3.8100 | Buy Now |
|
DISTI #
611-3.14100.0010000
|
Mouser Electronics | Tactile Switches RF15 SWITCH, WHITE RoHS: Compliant | 697 |
|
$1.9500 / $3.7800 | Buy Now |
|
DISTI #
70128573
|
RS | TACTILE SWITCH, RF 15, 1NO, NON-ILLUMINATED, CLEAR CAP, GOLD, 0.1MA, 35V, SOLDER Min Qty: 1 Package Multiple: 1 Lead time: 3 Weeks, 0 Days Container: Bulk | 0 |
|
$1.4100 | RFQ |
|
|
Future Electronics | RF 15 Series SPST-NO 35 V 100 mA Top Actuated Through Hole Tactile Switch RoHS: Compliant pbFree: Yes Min Qty: 32 Package Multiple: 32 Lead time: 14 Weeks Container: Tube | 0Tube |
|
$2.2700 / $2.3600 | Buy Now |
|
|
Onlinecomponents.com | RF 15 - Tactile switch, non-illuminated, gold contacts COO: Germany RoHS: Compliant |
1224 In Stock |
|
$1.8800 / $2.0700 | Buy Now |
|
DISTI #
62975487
|
Verical | Switch Tactile N.O. SPST Square Button PC Pins 0.1A 35VAC 35VDC 2VA 2.9N Thru-Hole Tube RoHS: Compliant Min Qty: 32 Package Multiple: 32 Date Code: 2129 | Americas - 1216 |
|
$2.3564 / $2.6437 | Buy Now |
|
DISTI #
91548291
|
Verical | Switch Tactile N.O. SPST Square Button PC Pins 0.1A 35VAC 35VDC 2VA 2.9N Thru-Hole Tube RoHS: Compliant Min Qty: 48 Package Multiple: 48 Date Code: 2522 | Americas - 96 |
|
$1.7417 / $2.3486 | Buy Now |
|
|
Master Electronics | RF 15 - Tactile switch, non-illuminated, gold contacts COO: Germany RoHS: Compliant |
1224 In Stock |
|
$1.8800 / $2.0700 | Buy Now |
US Tariff Estimator: 3.14.100.001/0000 by RAFI GmbH & Co Kg
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 3.14.100.001/0000
3.14.100.001/0000 CAD Models
-

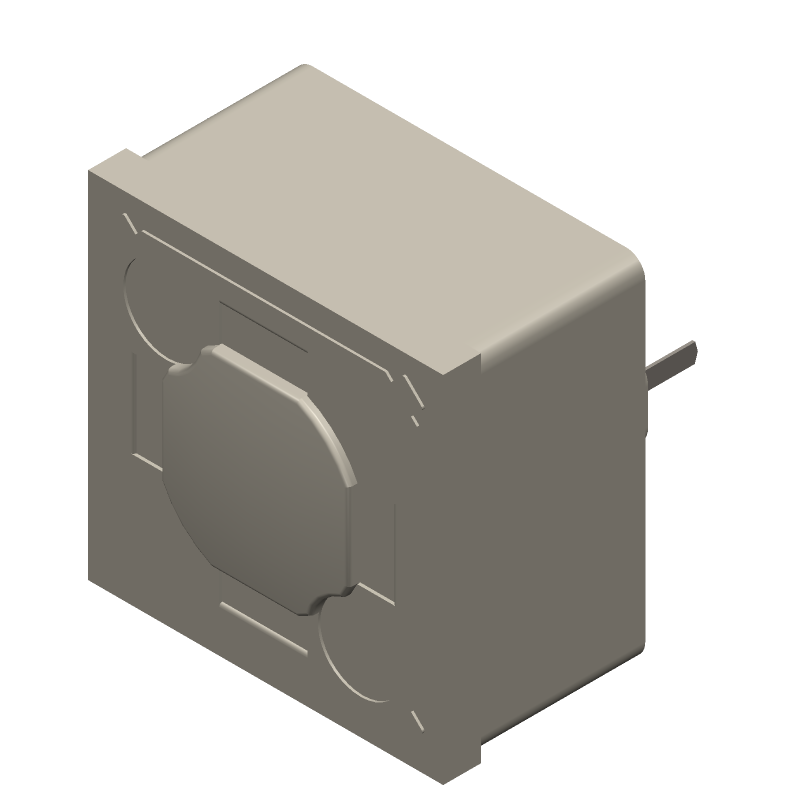

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
3.14.100.001/0000 Part Data Attributes
|
|
3.14.100.001/0000
RAFI GmbH & Co Kg
Buy Now
Datasheet
|
Compare Parts:
3.14.100.001/0000
RAFI GmbH & Co Kg
Keyboard Switch, 1 Switches, SPST, Momentary, 0.1A, 35VDC, 3.5N, Solder Terminal, Through Hole-straight,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.40 | |
| Actuator Travel | 0.508 Mm | |
| Actuator Type | Keypad | |
| Additional Feature | Panel Mountable | |
| Body Breadth | 15 Mm | |
| Body Height | 9 Mm | |
| Body Length or Diameter | 15 Mm | |
| Circuit Configuration | 1x1 | |
| Contact Current(DC)-Max | 0.1 A | |
| Contact (DC) Max Rating R Load | .1a@35vdc | |
| Contact Resistance | 0.1 MΩ | |
| Contact Timing | Snap Action | |
| Contact Voltage(DC)-Max | 35 V | |
| Electrical Life | 1000000 Cycle(S) | |
| Insulation Resistance | 1000000000 Ω | |
| Mounting Feature | Through Hole-Straight | |
| Number of Switches | 1 | |
| Operating Force-Max | 3.5 N | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -25 °C | |
| Surface Mount | No | |
| Switch Action | Momentary | |
| Switch Function | Spst | |
| Switch Type | Keyboard | |
| Termination Type | Solder |
3.14.100.001/0000 Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the 3.14.100.001/0000 is -40°C to 85°C, according to RAFI's documentation.
-
RAFI recommends using a soft brush and a mild detergent solution to clean the component. Avoid using harsh chemicals or abrasive materials that may damage the surface.
-
The maximum current rating for the 3.14.100.001/0000 is 1A per contact, according to the datasheet. However, it's recommended to derate the current based on the operating temperature and other environmental factors.
-
Yes, the 3.14.100.001/0000 is designed to withstand high-vibration environments. However, it's recommended to follow RAFI's guidelines for mounting and securing the component to ensure reliable operation.
-
Yes, the 3.14.100.001/0000 is compatible with lead-free soldering processes. RAFI recommends following the recommended soldering profile to ensure reliable assembly.
