3306F-1-502 by: Bourns Inc

Trimmer, Cermet, 0.2W, 5000ohm, 25% +/-Tol, -250,250ppm/Cel, 1 Turn(s), 2732, 6 MM, CIRCULAR, 3 PINS, ROHS COMPLIANT

Part Details for 3306F-1-502 by Bourns Inc

Results Overview of 3306F-1-502 by Bourns Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Environmental Monitoring Industrial Automation

3306F-1-502 Information

3306F-1-502 by Bourns Inc is a Variable Resistor.
Variable Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for 3306F-1-502

Part # Distributor Description Stock Price Buy
DISTI # 50P9027
Newark Trimmer, 5K, 6Mm, Track Resistance:5Kohm, No. Of Turns:1Turns, Potentiometer Mounting:Through Hole, Product Range:Trimpot 3306 Series, Power Rating:200Mw, Resistance Tolerance:± 25%, Temperature Coefficient:± 250Ppm/°C, Automotive Rohs Compliant: Yes |Bourns 3306F-1-502 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 0 Container: Bulk 4441
  • 1 $0.5380
  • 10 $0.4200
  • 25 $0.4040
  • 50 $0.3860
  • 100 $0.3690
  • 500 $0.3600
  • 1,000 $0.3490
  • 2,500 $0.3040
$0.3040 / $0.5380 Buy Now
DISTI # 04B2996
Newark Trimmer Potentiometer 5Kohm 1Turn Snap-In, Trimmer Type:Single Turn, Element Material:Cermet, Adjustment Type:Top Adjust, Track Resistance:5Kohm, Potentiometer Mounting:Through Hole, No. Of Turns:1Turns, Product Range:3306 Series Rohs Compliant: Yes |Bourns 3306F-1-502 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 1660
  • 1 $0.2550
  • 10 $0.2340
  • 25 $0.2340
  • 50 $0.2340
  • 100 $0.2340
  • 500 $0.2340
  • 1,000 $0.2160
  • 2,500 $0.2160
$0.2160 / $0.2550 Buy Now
DISTI # 04B2996
Avnet Americas Resistor Trimmer, Cermet, 5 kOhm, ? 25%, 200 mW, 1 Turn, Single Turn, Through Hole - Bulk (Alt: 04B2996) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 17 Weeks, 4 Days Container: Bulk 1660 Partner Stock
  • 1 $0.5100
  • 10 $0.4150
  • 25 $0.3810
  • 50 $0.3450
  • 100 $0.3110
$0.3110 / $0.5100 Buy Now
DISTI # 3306F-1-502
Avnet Americas Resistor Trimmer, Cermet, 5 kOhm, ? 25%, 200 mW, 1 Turn, Single Turn, Through Hole - Bulk (Alt: 3306F-1-502) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 16 Weeks, 0 Days Container: Bulk 0
  • 2,000 $0.1833
  • 4,000 $0.1823
  • 8,000 $0.1814
  • 12,000 $0.1805
  • 16,000 $0.1795
$0.1795 / $0.1833 Buy Now
DISTI # 70154389
RS 6mm Round, Thru-Hole, TRIMMER, 5 Kilohms, Cermet, Open Frame, Single Turn | Bourns 3306F-1-502 RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Lead time: 18 Weeks, 0 Days Container: Bulk 0
  • 2,000 $0.4700
$0.4700 RFQ
Bristol Electronics   Min Qty: 9 400
  • 9 $0.5625
  • 37 $0.3656
  • 138 $0.2109
$0.2109 / $0.5625 Buy Now
Bristol Electronics   189
RFQ
DISTI # 3306F-1-502
Avnet Abacus Resistor Trimmer Cermet 5 kOhm 25 200 mW 1 Turn Single Turn Through Hole (Alt: 3306F-1-502) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 19 Weeks, 0 Days Abacus - 0
Buy Now

Part Details for 3306F-1-502

3306F-1-502 CAD Models

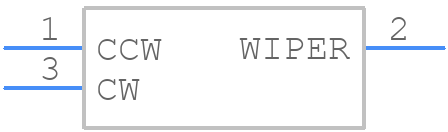

  • Part Symbol

    Part Symbol

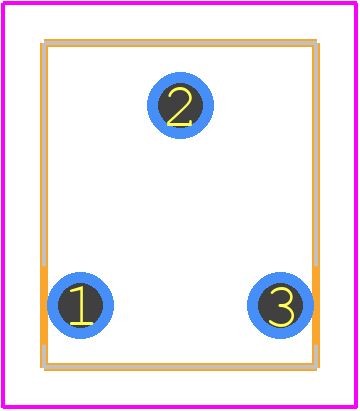

  • Footprint

    footprint

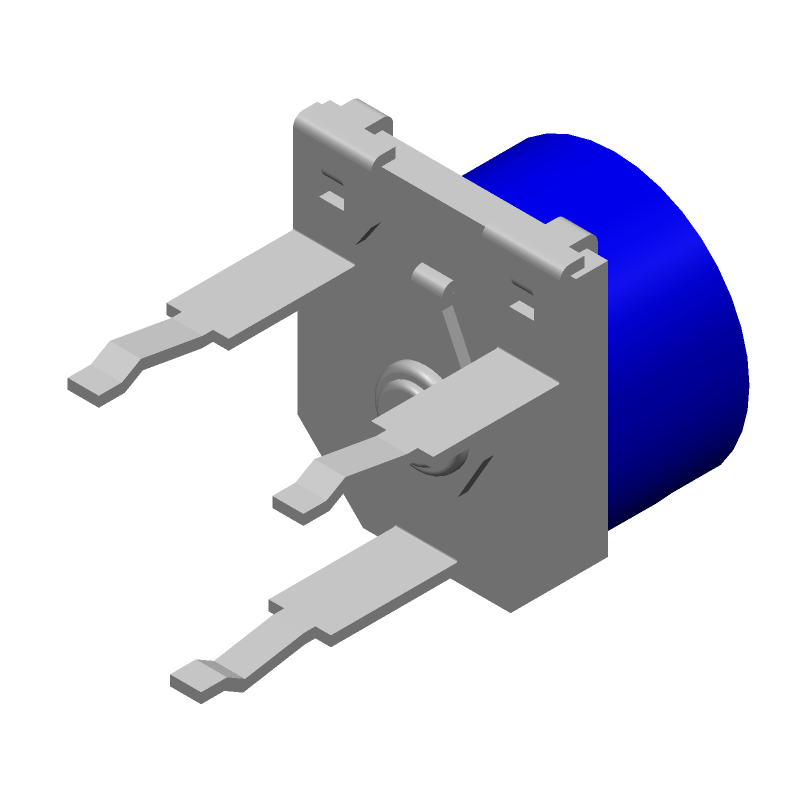

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

3306F-1-502 Part Data Attributes

Parametric Data
3306F-1-502 Bourns Inc
Buy Now Datasheet
Compare Parts:
3306F-1-502 Bourns Inc Trimmer, Cermet, 0.2W, 5000ohm, 25% +/-Tol, -250,250ppm/Cel, 1 Turn(s), 2732, 6 MM, CIRCULAR, 3 PINS, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer BOURNS INC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.40.80.50
Factory Lead Time 16 Weeks
Samacsys Manufacturer Bourns
Actuator Orientation VERTICAL
Actuator Type SCREW
Construction Rectangular
Ganging Number 1
JESD-609 Code e3
Mounting Feature THROUGH HOLE MOUNT
Number of Terminals 3
Number of Turns 1
Operating Temperature-Max 100 °C
Operating Temperature-Min -25 °C
Package Height 7.62 mm
Package Length 8.1 mm
Package Shape RECTANGULAR PACKAGE
Package Style Radial
Package Width 6.81 mm
Packing Method BULK
Rated Power Dissipation (P) 0.2 W
Rated Temperature 70 °C
Resistance 5000 Ω
Resistance Law LINEAR
Resistor Type TRIMMER
Rotational Angle 215 deg
Surface Mount NO
Technology CERMET
Temperature Coefficient 250 ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape FLAT
Tolerance 25%
Working Voltage 100 V
