Connectors / Power Connectors / 350712-4
Datasheets
350712-4 by:
TE Connectivity

09P UMNL PIN HDR ASSY 94VO LF

Part Details for 350712-4 by TE Connectivity

Results Overview of 350712-4 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

350712-4 Information

350712-4 by TE Connectivity is a Power Connector.
Power Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 350712-4

Part # Distributor Description Stock Price Buy
DISTI # 52K3627
Newark Power Conn, Header, 9Pos, 3Row, 6.35Mm, No. Of Contacts:9Contacts, Product Range:Universal Mate-N-Lok Series, Connector Mounting:Pcb Mount, Contact Termination Type:Through Hole, Pitch Spacing:6.35Mm, Gender:Header, No. Of Rows:3Rowsrohs Compliant: Yes |Amp Te Connectivity 350712-4 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 6
  • 1 $1.1800
  • 10 $1.1800
  • 25 $1.1800
  • 50 $1.1800
  • 100 $1.1800
  • 250 $1.1800
  • 500 $1.1800
$1.1800 Buy Now
DISTI # 350712-4
Avnet Americas Conn Power Header 9 POS 6.35mm Solder ST Through Hole 9 Terminal 1 Port - Bag (Alt: 350712-4) COO: China RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 12 Weeks, 1 Days Container: Bag 169
  • 100 $4.7152
  • 10,000 $4.2672
  • 25,000 $3.9438
  • 100,000 $3.6294
  • 200,000 $3.5704
$3.5704 / $4.7152 Buy Now
DISTI # 52K3627
Avnet Americas Conn Power Header 9 POS 6.35mm Solder ST Through Hole 9 Terminal 1 Port - Bulk (Alt: 52K3627) COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Bulk 6 Partner Stock
  • 1 $6.5100
  • 800 $6.1900
$6.1900 / $6.5100 Buy Now
DISTI # 70468586
RS HEADER VERT 9 WAY PIN UMNL Min Qty: 10 Package Multiple: 1 Container: Bulk 0
  • 10 $7.6400
  • 20 $7.0300
  • 30 $6.1100
$6.1100 / $7.6400 RFQ
TE Connectivity 09P UMNL PIN HDR ASSY 94VO LF PCB Connector Type: PCB Mount Header PCB Mount Orientation: Vertical Connector System: Wire-to-Board Number of Positions: 9 Number of Rows: 3 PCB Mount Header Vertical Wire-to-Board 9 | PCB Header & Receptacle | Part Number: 350712-4 | Internal Number: 350712-4 | TE Connectivity RoHS: Compliant Min Qty: 1 395
  • 1 $8.9900
  • 10 $8.0700
  • 25 $6.9700
  • 100 $6.6000
  • 1,000 $5.3200
$5.3200 / $8.9900 Buy Now
DISTI # AMP350712-4
Heilind Electronics 09P UMNL PIN HDR ASSY 94VO LF Americas - 0 in Stock
3900 On Order
  • 400 $4.9117
  • 1,500 $4.7152
$4.7152 / $4.9117 Buy Now
DISTI # AMP350712-4
Interstate Connecting Components 09P UMNL PIN HDR ASSY 94VO LF 0
1300 On Order
  • 400 $4.9117
  • 1,500 $4.7152
$4.7152 / $4.9117 Buy Now
DISTI # 000000000001450257
Sager Pin & Socket Connectors HDR PIN 3X03C VRT V0 Min Qty: 400 0
  • 400 $5.8900
$5.8900 Buy Now
DISTI # 350712-4
Avnet Abacus Conn Power Header 9 POS 635mm Solder ST Through Hole 9 Terminal 1 Port (Alt: 350712-4) RoHS: Compliant Min Qty: 400 Package Multiple: 1 Lead time: 21 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # 350712-4
Avnet Abacus Conn Power Header 9 POS 635mm Solder ST Through Hole 9 Terminal 1 Port (Alt: 350712-4) RoHS: Compliant Min Qty: 400 Package Multiple: 400 Lead time: 19 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # 350712-4
Avnet Asia Conn Power Header 9 POS 6.35mm Solder ST Through Hole 9 Terminal 1 Port (Alt: 350712-4) RoHS: Compliant Min Qty: 400 Package Multiple: 400 Lead time: 6 Weeks, 2 Days 0
RFQ

US Tariff Estimator: 350712-4 by TE Connectivity

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

350712-4
TE Connectivity
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for 350712-4

350712-4 CAD Models

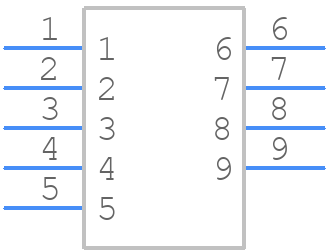

  • Part Symbol

    schematic symbol

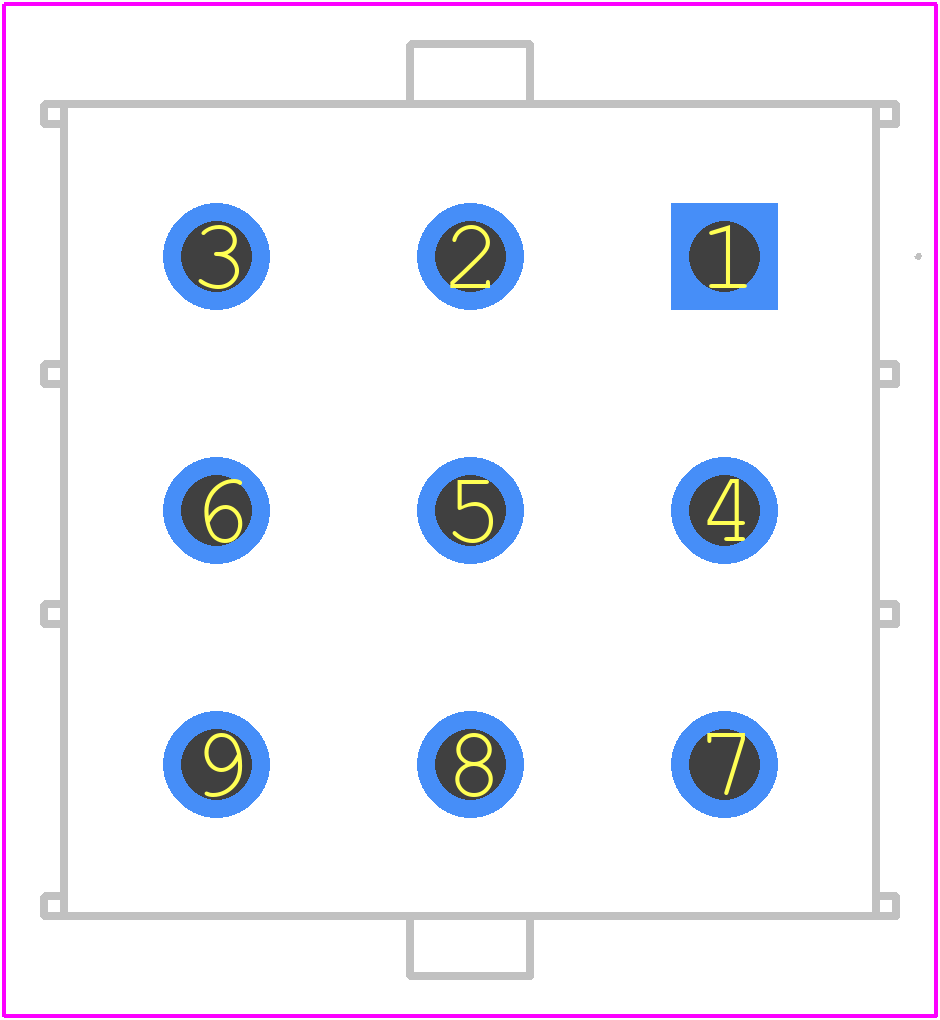

  • Footprint

    pcb footprint

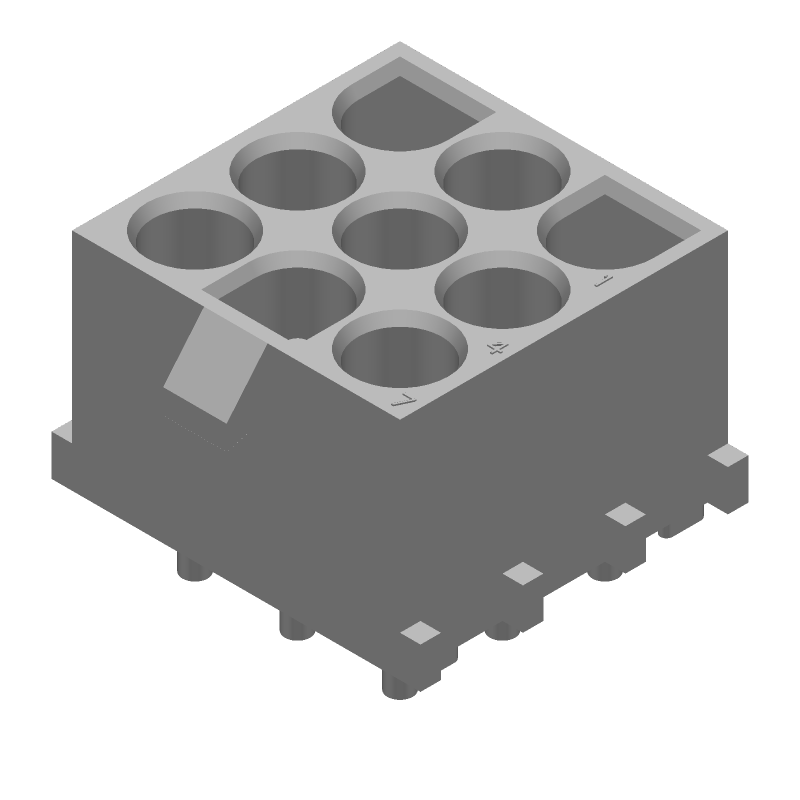

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

350712-4 Part Data Attributes

Parametric Data
350712-4 TE Connectivity
Buy Now Datasheet
Compare Parts:
350712-4 TE Connectivity 09P UMNL PIN HDR ASSY 94VO LF
Rohs Code Yes
Part Life Cycle Code Active
Package Description Rohs Compliant
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8536.69.40.30
Additional Feature Mate-N-Lok
Body Breadth 0.8 Inch
Body Depth 0.55 Inch
Body Length 0.8 Inch
Body/Shell Style Receptacle
Connector Type Rectangular Power Connector
Contact Arrangement S0p9
Contact Finish Mating Not Applicable
Contact Finish Termination Tin (Sn)
Contact Gender Male
Contact Material Not Applicable
Contact Pattern Rectangular
Contact Resistance 3.5 MΩ
Contact Style Rnd Pin-Skt
DIN Conformance No
Durability 50 Cycles
EMI Shielded No
Empty Shell Yes
Filter Feature No
IEC Conformance No
Insertion Force-Max 13.344 N
Insulation Resistance 100000000 Ω
Insulator Color Natural
Insulator Material Polyamide
JESD-609 Code e3
MIL Conformance No
Mains Connector Rating 115/230vac
Mating Contact Row Spacing 0.25 Inch
Mating Information Multiple Mating Parts Available
Mixed Contacts No
Mounting Option 1 Locking
Mounting Option 2 Locking
Mounting Style Straight
Mounting Type Board
Number Of Connectors One
Number of Ports 1
Number of Rows Loaded 3
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
Option General Purpose
Panel Mount No
Plating Thickness 36u Inch
Polarization Key Polarized
Rated Current (Signal) 12 A
Reference Standard Csa, Ul, V
Terminal Length 0.124 Inch
Terminal Pitch 6.35 Mm
Termination Type Solder
Total Number of Contacts 9
UL Flammability Code 94V-0
Withdrawl Force-Min 2.224 N

Alternate Parts for 350712-4

This table gives cross-reference parts and alternative options found for 350712-4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 350712-4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
IS25WP256D-JLLE Integrated Silicon Solution Inc $3.2138 Flash, 32MX8, PDSO8, WSON-8 350712-4 vs IS25WP256D-JLLE
IS25WP256D-JLLE-TR Integrated Silicon Solution Inc Check for Price Flash, 350712-4 vs IS25WP256D-JLLE-TR
IS25WP256D-JLLA2 Integrated Silicon Solution Inc Check for Price Flash, 32MX8, PDSO8, WSON-8 350712-4 vs IS25WP256D-JLLA2
IS25WP256D-JLLE1 Integrated Silicon Solution Inc Check for Price Flash, 32MX8, PDSO8, WSON-8 350712-4 vs IS25WP256D-JLLE1
IS25WP256D-JLLA1 Integrated Silicon Solution Inc Check for Price Flash, 32MX8, PDSO8, WSON-8 350712-4 vs IS25WP256D-JLLA1
