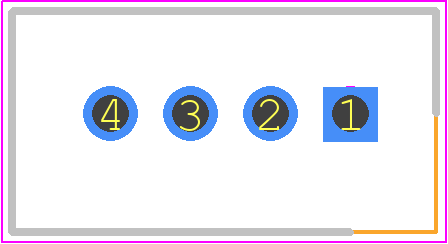

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle, LEAD FREE
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Part # | Distributor | Description | Stock | Price | Buy | |
---|---|---|---|---|---|---|
DISTI #
65K4794
|
Newark | Connector, Header, 4Pos, 1Row, 2Mm, Connector Systems:Signal, Pitch Spacing:2Mm, No. Of Rows:1Rows, No. Of Contacts:4Contacts, Contact Termination Type:Through Hole Straight, Product Range:Sherlock 35362 Series Rohs Compliant: Yes |Molex 35362-0450 Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 8826 |
|
$0.1870 / $0.2040 | Buy Now |
DISTI #
26AC7154
|
Newark | Wafer 353620450 Rohs Compliant: Yes |Molex 35362-0450 Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.2400 / $0.4350 | Buy Now |
DISTI #
0353620450
|
Avnet Americas | Conn Partial Shrouded Header 4 POS 2mm Solder ST Through Hole - Bulk (Alt: 0353620450) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 38 Weeks, 0 Days Container: Bulk | 18321 |
|
RFQ | |
DISTI #
65K4794
|
Avnet Americas | Conn Partial Shrouded Header 4 POS 2mm Solder ST Through Hole - Bulk (Alt: 65K4794) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 7 Weeks, 3 Days Container: Bulk | 8826 Partner Stock |
|
$0.2300 / $0.4350 | Buy Now |
DISTI #
538-35362-0450
|
Mouser Electronics | Headers & Wire Housings 4 Ckt Vert. Hdr. Sherlock W-T-B RoHS: Compliant | 36962 |
|
$0.1470 / $0.4100 | Buy Now |
DISTI #
MOL35362-0450
|
Heilind Electronics | WAFER 353620450 | Americas - 26583 in Stock |
|
Buy Now | |
|
Onlinecomponents.com | Conn Shrouded Header HDR 4 POS 2mm Solder ST Thru-Hole Sherlock™ Bag RoHS: Compliant |
160800 Partner Stock |
|
$0.1483 / $0.1978 | Buy Now |
|
Quest Components | CONN HEADER 4POS 2MM VERT TIN | 643 |
|
$0.1670 / $0.3579 | Buy Now |
DISTI #
35362-0450
|
TTI | Headers & Wire Housings 4 Ckt Vert. Hdr. Sherlock W-T-B RoHS: Compliant pbFree: Pb-Free Min Qty: 23 Package Multiple: 1 Container: Bulk |
Americas - 216988 In Stock |
|
$0.1460 / $0.2180 | Buy Now |
DISTI #
0353620450
|
Avnet Americas | Conn Partial Shrouded Header 4 POS 2mm Solder ST Through Hole - Bulk (Alt: 0353620450) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 38 Weeks, 0 Days Container: Bulk | 18321 |
|
RFQ |
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
|
35362-0450
Molex
Buy Now
Datasheet
|
Compare Parts:
35362-0450
Molex
Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle, LEAD FREE
|
Rohs Code | Yes | |
Part Life Cycle Code | Not Recommended | |
Ihs Manufacturer | MOLEX LLC | |
Package Description | LEAD FREE | |
Reach Compliance Code | compliant | |
Factory Lead Time | 7 Weeks, 3 Days | |
Samacsys Manufacturer | Molex | |
Body Breadth | 0.217 inch | |
Body Depth | 0.335 inch | |
Body Length | 0.406 inch | |
Body/Shell Style | RECEPTACLE | |
Connector Type | BOARD CONNECTOR | |
Contact Finish Mating | TIN OVER NICKEL | |
Contact Finish Termination | MATTE TIN | |
Contact Gender | MALE | |
Contact Material | BRASS | |
Contact Pattern | RECTANGULAR | |
Contact Style | SQ PIN-SKT | |
DIN Conformance | NO | |
Filter Feature | NO | |
IEC Conformance | NO | |
Insulator Material | POLYAMIDE | |
JESD-609 Code | e3 | |
MIL Conformance | NO | |
Mating Contact Pitch | 0.079 inch | |
Mating Information | MULTIPLE MATING PARTS AVAILABLE | |
Mixed Contacts | NO | |
Mounting Option 1 | LOCKING | |
Mounting Style | STRAIGHT | |
Mounting Type | BOARD | |
Number Of Connectors | ONE | |
Number Of PCB Rows | 1 | |
Number of Rows Loaded | 1 | |
Option | GENERAL PURPOSE | |
PCB Contact Pattern | RECTANGULAR | |
Reference Standard | UL | |
Terminal Length | 0.13 inch | |
Terminal Pitch | 2 mm | |
Termination Type | SOLDER | |
Total Number of Contacts | 4 | |
UL Flammability Code | 94V-0 |
This table gives cross-reference parts and alternative options found for 35362-0450. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 35362-0450, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
Part Number | Description | Manufacturer | Compare |
---|---|---|---|
75168-117-04LF | Board Connector, 4 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle, ROHS COMPLIANT | Amphenol Communications Solutions | 35362-0450 vs 75168-117-04LF |
644611-4 | 4 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER | TE Connectivity | 35362-0450 vs 644611-4 |
10021507-104TRLF | Board Connector, 4 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Locking, ROHS COMPLIANT | Amphenol Communications Solutions | 35362-0450 vs 10021507-104TRLF |
TSW-104-25-SM-S-RA | Board Connector, 4 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, | Samtec Inc | 35362-0450 vs TSW-104-25-SM-S-RA |
ZW-04-16-F-S-200-120-002 | Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator | Samtec Inc | 35362-0450 vs ZW-04-16-F-S-200-120-002 |
70553-0038 | Board Connector, 4 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle, ROHS COMPLIANT | Molex | 35362-0450 vs 70553-0038 |
641126-4 | Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Natural Insulator, Plug | TE Connectivity | 35362-0450 vs 641126-4 |
75168-310-04LF | BergStik®, Board to Board connector, Unshrouded Right Angled header, Through Hole, Single Row, 04 Positions, 2.54mm (0.100in) Pitch. | Amphenol Communications Solutions | 35362-0450 vs 75168-310-04LF |
75168-113-04LF | Board Connector, 4 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle, ROHS COMPLIANT | Amphenol FCi | 35362-0450 vs 75168-113-04LF |
75168-307-04LF | BergStik®, Board to Board connector, Unshrouded Right Angled header, Through Hole, Single Row, 04 Positions, 2.54mm (0.100in) Pitch. | Amphenol Communications Solutions | 35362-0450 vs 75168-307-04LF |
