Relays / Power/Signal Relays / 4-1617119-2
Datasheets

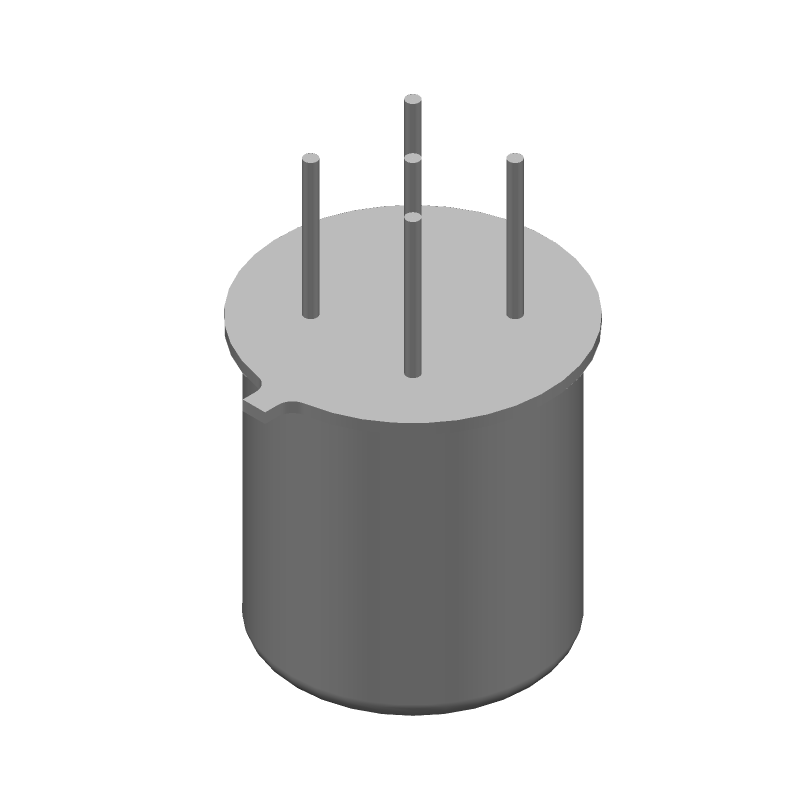

4-1617119-2 by: TE Connectivity

POWER/SIGNAL RELAY, SPDT, MOMENTARY, 0.012A (COIL), 12VDC (COIL), 140mW (COIL), 1A (CONTACT), THROUGH HOLE-STRAIGHT MOUNT

Part Details for 4-1617119-2 by TE Connectivity

Results Overview of 4-1617119-2 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

4-1617119-2 Information

4-1617119-2 by TE Connectivity is a Power/Signal Relay.
Power/Signal Relays are under the broader part category of Relays.

A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.

Price & Stock for 4-1617119-2

Part # Distributor Description Stock Price Buy
DISTI # 42AJ3707
Newark Low Signal Relays-Pcb J1Msp-12Xm = M39016/10-022M |Amp Te Connectivity 4-1617119-2 RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 5
  • 1 $133.2800
  • 3 $130.7000
  • 5 $129.1400
  • 10 $127.9100
  • 25 $127.0100
$127.0100 / $133.2800 Buy Now
DISTI # 2266-4-1617119-2-ND
DigiKey RELAY GEN PURPOSE SPDT 1A 12V Min Qty: 1 Lead time: 1 Weeks Container: Box MARKETPLACE PRODUCT 5
In Stock
  • 1 $92.3400
$92.3400 Buy Now
DISTI # 4-1617119-2
Avnet Americas - Bag (Alt: 4-1617119-2) COO: India RoHS: Not Compliant Min Qty: 50 Package Multiple: 10 Lead time: 28 Weeks, 3 Days Container: Bag 0
  • 50 $81.7429
  • 100 $72.4865
  • 250 $63.3289
  • 500 $62.8582
  • 1,000 $62.5359
$62.5359 / $81.7429 Buy Now
DISTI # AMP4-1617119-2
Heilind Electronics J1MSP-12XM = M39016/10-022M Americas - 0 in Stock
  • 1 $85.8301
  • 5 $83.5102
  • 10 $81.3127
  • 25 $79.2277
  • 50 $77.2470
$77.2470 / $85.8301 Buy Now
Onlinecomponents.com J1MSP-12XM = M39016/10-022M COO: India 15 In Stock
  • 1 $71.2500
  • 5 $68.4900
  • 10 $67.4700
  • 15 $66.4500
  • 25 $65.4600
  • 50 $64.4700
$64.4700 / $71.2500 Buy Now
DISTI # 36196968
Verical TO-5-.100 Grid Relays RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Americas - 5
  • 1 $143.0500
  • 3 $120.3500
$120.3500 / $143.0500 Buy Now
Bristol Electronics   Min Qty: 1 3
  • 1 $140.4000
$140.4000 Buy Now
Quest Components   2
  • 1 $175.5000
$175.5000 Buy Now
DISTI # 416171192-TEC
TME Relay: electromagnetic, SPDT, Ucoil: 12VDC, 1A, PCB, 140mW Min Qty: 1 5
  • 1 $198.3731
  • 3 $150.1889
  • 5 $141.2302
$141.2302 / $198.3731 Buy Now
DISTI # AMP4-1617119-2
Interstate Connecting Components J1MSP-12XM = M39016/10-022M 0
  • 1 $85.8301
  • 5 $83.5102
  • 10 $81.3127
  • 25 $79.2277
  • 50 $77.2470
$77.2470 / $85.8301 Buy Now
Powell Electronics Relays Min Qty: 1 3
  • 1 $143.9500
  • 3 $121.1100
  • 6 $113.8700
  • 13 $107.4500
  • 50 $89.7600
$89.7600 / $143.9500 Buy Now
DISTI # 000000000000900306
Sager Low Signal Relays - PCB J1MSP-12XM Min Qty: 50 0
  • 50 $80.1100
  • 90 $78.0300
  • 190 $70.4000
$70.4000 / $80.1100 Buy Now
DISTI # 4-1617119-2
Avnet Abacus Relay MilitaryAerospace MILR3901610 Low Signal SPDT 1A 12VDC 1025kOhm PC Pin Through Hole (Alt: 4-1617119-2) RoHS: Not Compliant Min Qty: 50 Package Multiple: 10 Lead time: 113 Weeks, 0 Days Abacus - 0
Buy Now
Master Electronics J1MSP-12XM = M39016/10-022M COO: India 15 In Stock
  • 1 $71.2500
  • 5 $68.4900
  • 10 $67.4700
  • 15 $66.4500
  • 25 $65.4600
  • 50 $64.4700
$64.4700 / $71.2500 Buy Now

US Tariff Estimator: 4-1617119-2 by TE Connectivity

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

4-1617119-2
TE Connectivity
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for 4-1617119-2

4-1617119-2 Part Data Attributes

Parametric Data
4-1617119-2 TE Connectivity
Buy Now Datasheet
Compare Parts:
4-1617119-2 TE Connectivity POWER/SIGNAL RELAY, SPDT, MOMENTARY, 0.012A (COIL), 12VDC (COIL), 140mW (COIL), 1A (CONTACT), THROUGH HOLE-STRAIGHT MOUNT
Pbfree Code No
Rohs Code No
Part Life Cycle Code Active
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8536.41.00.20
Coil Current(DC)-Max 0.012 A
Coil Power 140 Mw
Coil Resistance 1025 Ω
Coil Voltage(DC)-Max 12 V
Coil/Input Supply Type Dc
Contact Current(AC)-Max 1 A
Contact Current(DC)-Max 1 A
Contact Voltage(AC)-Max 28 V
Contact Voltage(DC)-Max 28 V
Contact/Output Supply Type Ac/Dc
Mounting Feature Panel Mount
Operating Temperature-Max 125 °C
Operating Temperature-Min -65 °C
Relay Action Momentary
Relay Form 1 Form C
Relay Function Spst-Co
Relay Type Power/Signal Relay
Sealing Hermetically Sealed
Surface Mount No
Termination Type Solder/Quick Connect

Alternate Parts for 4-1617119-2

This table gives cross-reference parts and alternative options found for 4-1617119-2. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 4-1617119-2, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
J1MSCDD-12XP TE Connectivity $102.2613 POWER/SIGNAL RELAY, SPDT, MOMENTARY, 0.012A (COIL), 12VDC (COIL), 140mW (COIL), 1A (CONTACT), THROUGH HOLE-STRAIGHT MOUNT 4-1617119-2 vs J1MSCDD-12XP
J1MSP-12XM TE Connectivity $89.0262 POWER/SIGNAL RELAY, SPDT, MOMENTARY, 0.012A (COIL), 12VDC (COIL), 140mW (COIL), 1A (CONTACT), THROUGH HOLE-STRAIGHT MOUNT 4-1617119-2 vs J1MSP-12XM
4-1617119-7 TE Connectivity $93.1553 POWER/SIGNAL RELAY, SPDT, MOMENTARY, 0.012A (COIL), 12VDC (COIL), 140mW (COIL), 1A (CONTACT), THROUGH HOLE-STRAIGHT MOUNT 4-1617119-2 vs 4-1617119-7
