47L16-I/ST by: Microchip Technology Inc

16kbit SRAM with EEPROM backup, 2.7-3.6V

Part Details for 47L16-I/ST by Microchip Technology Inc

Results Overview of 47L16-I/ST by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Industrial Automation Energy and Power Systems Renewable Energy

47L16-I/ST Information

47L16-I/ST by Microchip Technology Inc is an Other Memory IC.
Other Memory ICs are under the broader part category of Memory Components.

Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.

Price & Stock for 47L16-I/ST

Part # Distributor Description Stock Price Buy
DISTI # 03AC0264
Newark Eeram, 16Kbit, 2K X 8Bit, Tssop-8, Memory Type:Eeram, Memory Size:16Kbit, Nvram Memory Configuration:2K X 8Bit, Ic Interface Type:I2C, Access Time:-, Memory Case Style:Tssop, No. Of Pins:8Pins, Supply Voltage Min:2.7V, Supply Voltagerohs Compliant: Yes |Microchip 47L16-I/ST RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 216
  • 1 $0.8800
  • 10 $0.8600
  • 25 $0.8400
  • 50 $0.8250
  • 100 $0.8100
$0.8100 / $0.8800 Buy Now
DISTI # 47L16-I/ST
Avnet Americas 16K 3.0V EERAM IND - Rail/Tube (Alt: 47L16-I/ST) COO: China RoHS: Compliant Min Qty: 500 Package Multiple: 100 Lead time: 7 Weeks, 0 Days Container: Tube 0
  • 500 $0.8714
  • 1,000 $0.8243
  • 2,000 $0.8026
  • 4,000 $0.7821
  • 8,000 $0.7625
$0.7625 / $0.8714 Buy Now
DISTI # 47L16-I/ST
Microchip Technology Inc 16kbit SRAM with EEPROM backup, 2.7-3.6V, TSSOP, Projected EOL: 2044-04-27 COO: Philippines, Thailand ECCN: EAR99 RoHS: Compliant Lead time: 8 Weeks, 0 Days Container: Tube In Stock: 2260 and Alternates Available
  • 1 $0.8800
  • 25 $0.8400
  • 100 $0.8100
  • 1,000 $0.7800
  • 5,000 $0.7200
$0.7200 / $0.8800 Buy Now
NAC 16k, 3.0V EERAM IND. Package: 8 TSSOP 4.4mm TUBE - SPECIALTY SERIAL EE Product Line RoHS: Compliant Min Qty: 500 Package Multiple: 100 Container: Tube 0
  • 1 $0.9400
  • 100 $0.8500
  • 500 $0.7800
  • 1,000 $0.7600
$0.7600 / $0.9400 Buy Now
DISTI # 47L16-I/ST
Avnet Silica 16K 30V EERAM IND (Alt: 47L16-I/ST) RoHS: Compliant Min Qty: 500 Package Multiple: 100 Lead time: 9 Weeks, 0 Days Silica - 0
Buy Now
Chip Stock ICEERAM16KBITI2C1MHZ8TSSOP&#34, EEPROM,SRAMMemoryIC16KbitI2C1MHz400ns8-TSSOP&#34, 14500
RFQ
DISTI # 47L16-I/ST
EBV Elektronik 16K 30V EERAM IND (Alt: 47L16-I/ST) RoHS: Compliant Min Qty: 500 Package Multiple: 100 Lead time: 8 Weeks, 0 Days EBV - 0
Buy Now
DISTI # 47L16-I/ST
Maritex SRAM, MICROCHIP, 47L16-I/ST, 400 ns, I2C, 2.7 V - 3.6 V, 2 kB Min Qty: 1 Package Multiple: 1 3300
  • 1 $4.3010
$4.3010 Buy Now

US Tariff Estimator: 47L16-I/ST by Microchip Technology Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

47L16-I/ST
Microchip Technology Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for 47L16-I/ST

47L16-I/ST CAD Models

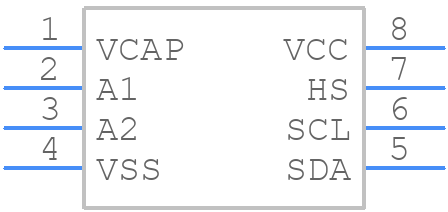

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

47L16-I/ST Part Data Attributes

Parametric Data
47L16-I/ST Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
47L16-I/ST Microchip Technology Inc 16kbit SRAM with EEPROM backup, 2.7-3.6V
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Package Description TSSOP, TSSOP8,.25
Pin Count 8
Manufacturer Package Code TSSOP-8
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8542.32.00.51
Factory Lead Time 10 Weeks
Date Of Intro 2016-10-10
Samacsys Manufacturer Microchip
Access Time-Max 400 ns
JESD-30 Code R-PDSO-G8
JESD-609 Code e3
Length 4.4 mm
Memory Density 16384 bit
Memory IC Type MEMORY CIRCUIT
Memory Width 8
Mixed Memory Type EEPROM+SRAM
Moisture Sensitivity Level 1
Number of Functions 1
Number of Ports 1
Number of Terminals 8
Number of Words 2048 words
Number of Words Code 2000
Operating Mode SYNCHRONOUS
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Organization 2KX8
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel) 260
Seated Height-Max 1.2 mm
Supply Voltage-Max (Vsup) 3.6 V
Supply Voltage-Min (Vsup) 2.7 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Width 3 mm

Alternate Parts for 47L16-I/ST

This table gives cross-reference parts and alternative options found for 47L16-I/ST. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 47L16-I/ST, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
47L16-I/SN Microchip Technology Inc $0.8796 16kbit SRAM with EEPROM backup, 2.7-3.6V 47L16-I/ST vs 47L16-I/SN
47L16T-E/SN Microchip Technology Inc $1.0700 16kbit SRAM with EEPROM backup, 2.7-3.6V 47L16-I/ST vs 47L16T-E/SN
47L16-I/P Microchip Technology Inc $1.0947 16kbit SRAM with EEPROM backup, 2.7-3.6V 47L16-I/ST vs 47L16-I/P
47L16-E/ST Microchip Technology Inc $1.1620 16kbit SRAM with EEPROM backup, 2.7-3.6V 47L16-I/ST vs 47L16-E/ST
47L16T-E/ST Microchip Technology Inc $1.1880 16kbit SRAM with EEPROM backup, 2.7-3.6V 47L16-I/ST vs 47L16T-E/ST
47L16-E/P Microchip Technology Inc $1.2900 16kbit SRAM with EEPROM backup, 2.7-3.6V 47L16-I/ST vs 47L16-E/P
equivalents icon

47L16-I/ST Related Parts

47L16-I/ST Frequently Asked Questions (FAQ)

  • The maximum operating temperature range for the 47L16-I/ST is -40°C to +85°C.

  • The power-up and power-down sequencing for the 47L16-I/ST should be handled according to the recommended power-up and power-down sequences outlined in the datasheet to prevent damage to the device.

  • The recommended layout and routing for the 47L16-I/ST involves keeping the power and ground pins as close as possible to the device, using a solid ground plane, and minimizing the length of the signal traces to reduce noise and electromagnetic interference (EMI).

  • To troubleshoot issues with the 47L16-I/ST, check the power supply voltage, clock frequency, and signal integrity, and verify that the device is properly configured and initialized according to the datasheet.

  • No, the 47L16-I/ST is not a radiation-hardened device and is not suitable for use in radiation-hardened applications.
