5767096-8 Information
5767096-8 by TE Connectivity is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 5767096-8
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
76AC9340
|
Newark | Connectors Rec 038 Asy .025 Cap |Amp Te Connectivity 5767096-8 RoHS: Not Compliant Min Qty: 252 Package Multiple: 1 Date Code: 0 Container: Reel | 928 |
|
$18.2300 / $23.4400 | Buy Now |
|
DISTI #
52R4246
|
Newark | Connector, Stack, Rcpt, 38Pos, 2Row, Mezzanine Connector Type:Receptacle, Pitch Spacing:0.64Mm, No. Of Rows:2Rows, No. Of Contacts:38Contacts, Connector Mounting:Surface Mount, Contact Material:Copper Alloy, Gender:Receptacle Rohs Compliant: Yes |Amp Te Connectivity 5767096-8 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 71 |
|
$18.2400 / $23.4400 | Buy Now |
|
DISTI #
5767096-8
|
Avnet Americas | Mezzanine Connector, Vertical, Receptacle, 0.64 mm, 2 Rows, 38 Contacts, Surface Mount - Tape and Reel (Alt: 5767096-8) COO: Philippines (the) RoHS: Compliant Min Qty: 252 Package Multiple: 252 Lead time: 0 Weeks, 2 Days Container: Reel | 1512 |
|
$10.9707 / $15.8874 | Buy Now |
|
DISTI #
70041978
|
RS | MICTOR SER.64MM 38WAY 2 ROW STRAIGHT PCB SOCKET SMNT, THROUGH HOLE BOARD TO BOARD Min Qty: 252 Package Multiple: 1 Lead time: 11 Weeks, 0 Days Container: Bulk | 0 |
|
$24.9500 | RFQ |
|
|
TE Connectivity | MICT,REC,038,ASY,.025,TAPE,CAP PCB Connector Type: PCB Mount Receptacle PCB Mount Orientation: Vertical Connector System: Board-to-Board Number of Positions: 38 Centerline (Pitch): .64 mm 24 mm PCB Mount Receptacle Vertical Board-to-Board 38 | PCB Header & Receptacle | Part Number: 5767096-8 | Internal Number: 5767096-8 | Alias Number: 73034152-F | .64 mm | TE Connectivity RoHS: Compliant Min Qty: 250 | 2068 |
|
$15.1100 / $15.8700 | Buy Now |
|
DISTI #
AMP5767096-8
|
Heilind Electronics | MICTREC038ASY.025TAPECAP | Americas - 0 in Stock |
|
$15.8875 | Buy Now |
|
|
Bristol Electronics | Min Qty: 1 | 390 |
|
$8.3697 / $14.5560 | Buy Now |
|
|
Bristol Electronics | 363 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 1 | 168 |
|
$8.3697 / $14.5560 | Buy Now |
|
|
Bristol Electronics | 90 |
|
RFQ |
US Tariff Estimator: 5767096-8 by TE Connectivity
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 5767096-8
5767096-8 CAD Models
-

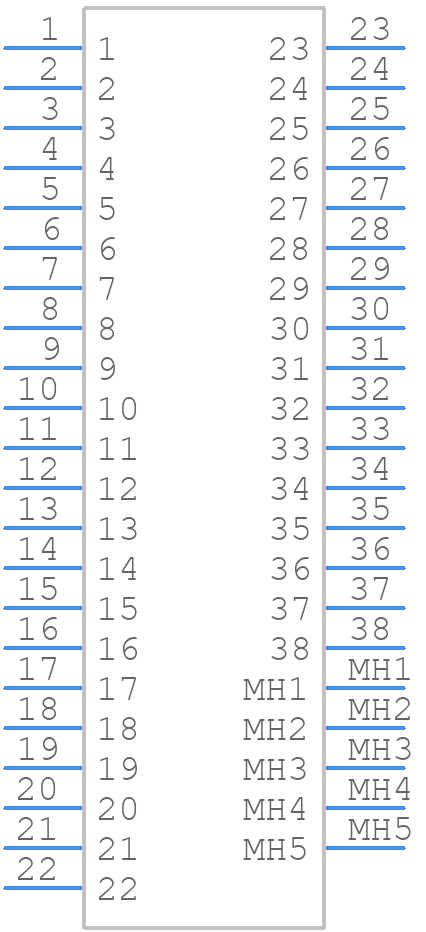

Part Symbol
-

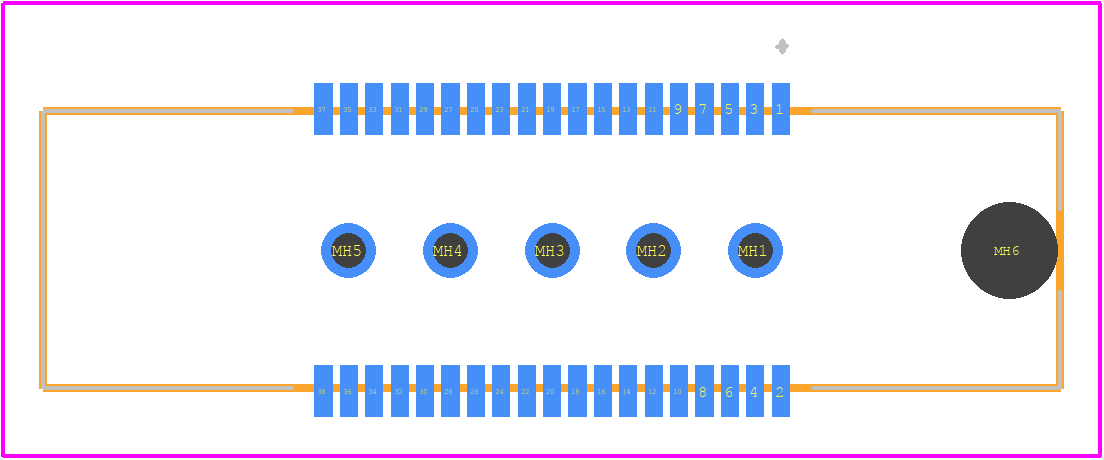

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
5767096-8 Part Data Attributes
|
|
5767096-8
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
5767096-8
TE Connectivity
MICT,REC,038,ASY,.025,TAPE,CAP
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Factory Lead Time | 9 Weeks | |
| Additional Feature | Rohs And Elv Compliant | |
| Board Mounting Option | Peg | |
| Body Breadth | 0.272 Inch | |
| Body Depth | 0.24 Inch | |
| Body Length | 1 Inch | |
| Body/Shell Style | Receptacle | |
| Characteristic Impedance | 50 Ω | |
| Connector Type | Board Stacking Connector | |
| Contact Arrangement | S38p1 | |
| Contact Finish Mating | Not Applicable | |
| Contact Finish Termination | Tin (Sn) | |
| Contact Gender | Female | |
| Contact Material | Not Applicable | |
| Contact Pattern | Rectangular | |
| Contact Resistance | 10 MΩ | |
| DIN Conformance | No | |
| Dielectric Withstanding Voltage | 500vac V | |
| Durability | 25 Cycles | |
| EMI Shielded | No | |
| Empty Shell | Yes | |
| Filter Feature | No | |
| IEC Conformance | No | |
| Insulation Resistance | 2000000 Ω | |
| Insulator Color | Black | |
| Insulator Material | Liquid Crystal Polymer | |
| JESD-609 Code | e3 | |
| MIL Conformance | No | |
| Mains Connector Rating | 11.5a | |
| Mating Contact Pitch | 0.025 Inch | |
| Mating Contact Row Spacing | 0.228 Inch | |
| Mixed Contacts | Yes | |
| Mounting Option 1 | Guide Slot | |
| Mounting Option 2 | Locking | |
| Mounting Style | Straight | |
| Mounting Type | Board | |
| Number Of Connectors | One | |
| Number Of PCB Rows | 2 | |
| Number of Ports | 1 | |
| Number of Rows Loaded | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Option | General Purpose | |
| PCB Contact Pattern | Rectangular | |
| PCB Contact Row Spacing | 7.0866 Mm | |
| Panel Mount | No | |
| Plating Thickness | 29.9212u Inch | |
| Polarization Key | Polarized Housing | |
| Rated Current (Signal) | 11.5 A | |
| Rated Voltage | 1 V | |
| Reference Standard | Csa, Ul | |
| Terminal Pitch | 0.64 Mm | |
| Termination Type | Surface Mount | |
| Total Number of Contacts | 39 | |
| UL Flammability Code | 94V-0 |
