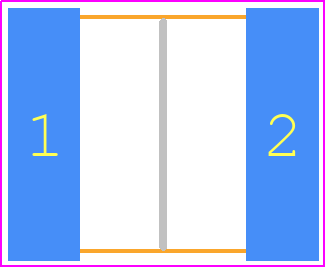

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 20% +Tol, 20% -Tol, 180uF, Surface Mount, 2824, CHIP
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Part # | Distributor | Description | Stock | Price | Buy | |
---|---|---|---|---|---|---|
DISTI #
27X7964
|
Newark | Tantalum Capacitor, 180Uf, 16V, 0.055 Ohm, 0.2, Smd, Full Reel, Capacitance:180µf, Voltage(Dc):16V, Capacitor Case/Package:2824 [7260 Metric], Capacitance Tolerance:± 20%, Esr:0.055Ohm, Manufacturer Size Code:R, Failure Rate:- Rohs Compliant: Yes |Vishay 594D187X0016R2T RoHS: Compliant Min Qty: 600 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$3.3700 / $3.5700 | Buy Now |
DISTI #
49C8198
|
Newark | Tantalum Capacitor, 180Uf, 16V, 0.055 Ohm, 0.2, Smd, Capacitance:180µf, Voltage(Dc):16V, Capacitor Case/Package:2824 [7260 Metric], Capacitance Tolerance:± 20%, Esr:0.055Ohm, Manufacturer Size Code:R, Failure Rate:- Rohs Compliant: Yes |Vishay 594D187X0016R2T RoHS: Compliant Min Qty: 600 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$3.7400 | Buy Now |
DISTI #
594D187X0016R2T
|
Avnet Americas | 594D187X0016R2T - Tape and Reel (Alt: 594D187X0016R2T) RoHS: Compliant Min Qty: 600 Package Multiple: 600 Lead time: 11 Weeks, 0 Days Container: Reel | 0 |
|
$3.1613 | Buy Now |
DISTI #
74-594D187X0016R2T
|
Mouser Electronics | Tantalum Capacitors - Solid SMD 180uF 16volts 20% R case Conformal RoHS: Compliant | 1061 |
|
$3.5000 / $6.0000 | Buy Now |
|
Future Electronics | 594D Series 180 uF ±20 % 16 V SMT Solid Conformal Coated Tantalum Chip Capacitor RoHS: Compliant pbFree: Yes Min Qty: 600 Package Multiple: 600 Lead time: 11 Weeks Container: Reel | 600Reel |
|
$3.1000 | Buy Now |
|
Bristol Electronics | 1562 |
|
RFQ | ||
|
Quest Components | Capacitor, Tantalum, 180uf, 16V, 20±% | 78066 |
|
$2.5594 / $7.3125 | Buy Now |
|
Quest Components | Capacitor, Tantalum, 180uf, 16V, 20±% | 157 |
|
$3.6400 / $8.4000 | Buy Now |
DISTI #
594D187X0016R2T.
|
TTI | Tantalum Capacitors - Solid SMD 180uF 16volts 20% R case Conformal RoHS: Compliant pbFree: Pb-Free Min Qty: 10 Package Multiple: 10 Container: Cut Tape |
Americas - 190 In Stock |
|
$4.7200 | Buy Now |
DISTI #
594D187X0016R2T
|
TTI | Tantalum Capacitors - Solid SMD 180uF 16volts 20% R case Conformal RoHS: Compliant pbFree: Pb-Free Min Qty: 600 Package Multiple: 600 Container: Reel | Americas - 0 |
|
$3.2700 / $3.4000 | Buy Now |
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
|
594D187X0016R2T
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
594D187X0016R2T
Vishay Intertechnologies
Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 20% +Tol, 20% -Tol, 180uF, Surface Mount, 2824, CHIP
|
Rohs Code | Yes | |
Part Life Cycle Code | Active | |
Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
Package Description | CHIP | |
Reach Compliance Code | compliant | |
Factory Lead Time | 11 Weeks | |
Samacsys Manufacturer | Vishay | |
Additional Feature | ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ | |
Capacitance | 180 µF | |
Capacitor Type | TANTALUM CAPACITOR | |
Dielectric Material | TANTALUM (DRY/SOLID) | |
ESR | 55 mΩ | |
Height | 3.5 mm | |
JESD-609 Code | e3 | |
Leakage Current | 0.0288 mA | |
Length | 7.2 mm | |
Mounting Feature | SURFACE MOUNT | |
Negative Tolerance | 20% | |
Number of Terminals | 2 | |
Operating Temperature-Max | 125 °C | |
Operating Temperature-Min | -55 °C | |
Package Shape | RECTANGULAR PACKAGE | |
Package Style | SMT | |
Packing Method | TR, Embossed Plastic, 7 Inch | |
Polarity | POLARIZED | |
Positive Tolerance | 20% | |
Rated (DC) Voltage (URdc) | 16 V | |
Ripple Current | 2130 mA | |
Size Code | 2824 | |
Surface Mount | YES | |
Tan Delta | 0.08 | |
Terminal Finish | MATTE TIN OVER NICKEL | |
Terminal Shape | WRAPAROUND | |
Width | 6 mm |
This table gives cross-reference parts and alternative options found for 594D187X0016R2T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 594D187X0016R2T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
Part Number | Description | Manufacturer | Compare |
---|---|---|---|
T428P187M016BH61107280 | Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 20% +Tol, 20% -Tol, 180uF, 2824, | KEMET Corporation | 594D187X0016R2T vs T428P187M016BH61107280 |
T95R187M016CZAS | Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 20% +Tol, 20% -Tol, 180uF, 2824 | Vishay Intertechnologies | 594D187X0016R2T vs T95R187M016CZAS |
T428P187M016BT63107280 | Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 20% +Tol, 20% -Tol, 180uF, 2824, | KEMET Corporation | 594D187X0016R2T vs T428P187M016BT63107280 |
T95R187M016HZAL | Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 20% +Tol, 20% -Tol, 180uF, 2824 | Vishay Intertechnologies | 594D187X0016R2T vs T95R187M016HZAL |
14002-036MESA/HR | Tantalum Capacitor, Tantalum (dry/solid), | Vishay Intertechnologies | 594D187X0016R2T vs 14002-036MESA/HR |
T428P187M016AH62107280 | Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 20% +Tol, 20% -Tol, 180uF, 2824, | KEMET Corporation | 594D187X0016R2T vs T428P187M016AH62107280 |
T428P187M016BH6330 | Tantalum Capacitor, Tantalum (dry/solid) | KEMET Corporation | 594D187X0016R2T vs T428P187M016BH6330 |
T428P187M016AT6220 | CAPACITOR, TANTALUM, SOLID | KEMET Corporation | 594D187X0016R2T vs T428P187M016AT6220 |
594D187X0016R8T | Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 20% +Tol, 20% -Tol, 180uF, Surface Mount, 2824, CHIP | Vishay Intertechnologies | 594D187X0016R2T vs 594D187X0016R8T |
595D187X0016R2T | Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 20% +Tol, 20% -Tol, 180uF, Surface Mount, 2824, CHIP | Vishay Intertechnologies | 594D187X0016R2T vs 595D187X0016R2T |
