Connectors / Other Interconnects / 68786-202LF
Datasheets
68786-202LF by:

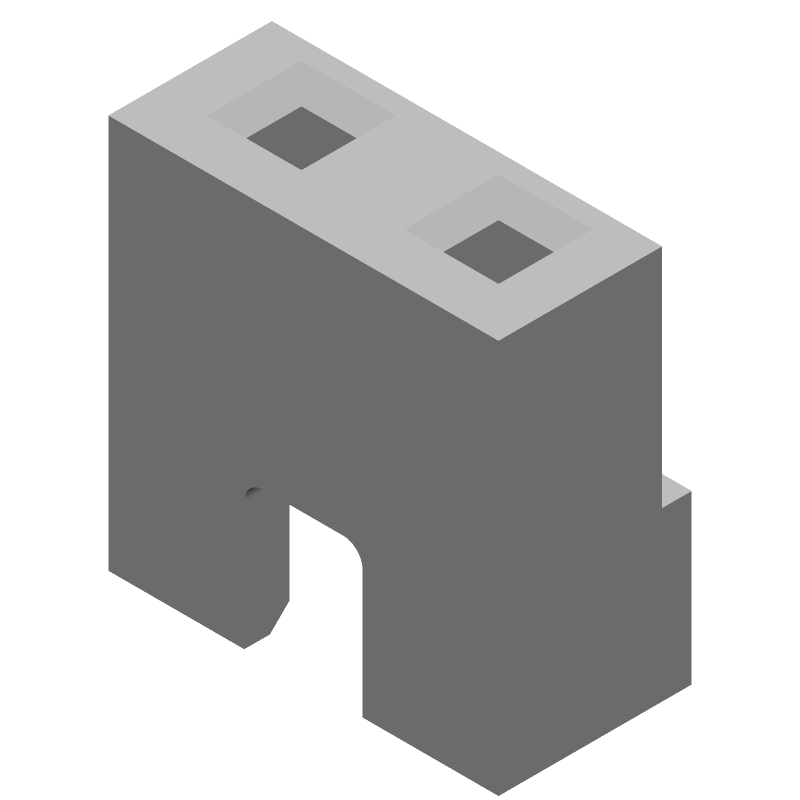

Low Profile Jumper , Single Row, 2 Positions, 2.54mm (0.100in) Pitch

Part Details for 68786-202LF by Amphenol Communications Solutions

Results Overview of 68786-202LF by Amphenol Communications Solutions

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

68786-202LF Information

68786-202LF by Amphenol Communications Solutions is an Other Interconnect.
Other Interconnects are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
68786-202LF Amphenol Communications Solutions Low Profile Jumper , Single Row, 2 Positions, 2.54mm (0.100in) Pitch
68786-302 Amphenol Communications Solutions Low Profile Jumper , Single Row, 2 Positions, 2.54mm (0.100in) Pitch
68786-201 Amphenol Communications Solutions 1X2 LOW PROFILE JUMPER

Price & Stock for 68786-202LF

Part # Distributor Description Stock Price Buy
DISTI # 33R1594
Newark Jumper (Busbar), Jumper, 2, 2.54 Mm Rohs Compliant: Yes |Amphenol Communications Solutions 68786-202LF RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 0 Container: Bulk 3042
  • 10 $0.3190
  • 25 $0.2880
  • 50 $0.2560
  • 100 $0.2370
  • 250 $0.2220
  • 500 $0.2070
  • 1,000 $0.1810
$0.1810 / $0.3190 Buy Now
DISTI # 68786-202LF
TME Connector: pin strips, jumper, female, open, 2.54mm, 1x2, white Min Qty: 1 136
  • 1 $0.2770
  • 10 $0.1610
  • 25 $0.1180
  • 1,000 $0.1160
$0.1160 / $0.2770 Buy Now
Vyrian Connectors 19656
RFQ

Part Details for 68786-202LF

68786-202LF Part Data Attributes

Parametric Data
68786-202LF Amphenol Communications Solutions
Buy Now Datasheet
Compare Parts:
68786-202LF Amphenol Communications Solutions Low Profile Jumper , Single Row, 2 Positions, 2.54mm (0.100in) Pitch
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer AMPHENOL COMMUNICATIONS SOLUTIONS
Package Description LEAD FREE
Pin Count 2
Reach Compliance Code compliant
ECCN Code EAR99
Samacsys Manufacturer Amphenol Communications Solutions
Additional Feature LOW PROFILE
Body Breadth 0.098 inch
Body Depth 0.2 inch
Body Length 0.198 inch
Body/Shell Style PLUG
Connector Type INTERCONNECTION DEVICE
Contact Finish Mating AU ON NI
Contact Gender FEMALE
Contact Material COPPER ALLOY
Contact Pattern RECTANGULAR
Contact Resistance 20 mΩ
Contact Style SQ PIN-SKT
Durability 50 Cycles
Insertion Force-Max 4.448 N
Insulation Resistance 50000000000 Ω
Insulator Color WHITE
Insulator Material POLYESTER
Mating Contact Pitch 0.1 inch
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Number Of Connectors ONE
Number of Rows Loaded 1
Operating Temperature-Max 120 °C
Operating Temperature-Min -55 °C
Plating Thickness 30u inch
Polarization Key POLARIZED HOUSING
Rated Current (Signal) 2.5 A
Reference Standard UL, CSA
Total Number of Contacts 2

Alternate Parts for 68786-202LF

This table gives cross-reference parts and alternative options found for 68786-202LF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 68786-202LF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
68786-302 Amphenol FCi $0.1137 Interconnection Device 68786-202LF vs 68786-302
68786-202 Amphenol Communications Solutions Check for Price Low Profile Jumper , Single Row, 2 Positions, 2.54mm (0.100in) Pitch 68786-202LF vs 68786-202
JUN02SS-TCB Mueller Electric Company Check for Price Interconnection Device 68786-202LF vs JUN02SS-TCB
68786-302LF Amphenol FCi $0.1596 Interconnection Device, LEAD FREE 68786-202LF vs 68786-302LF
71363-202 Amphenol FCi Check for Price Interconnection Device, 68786-202LF vs 71363-202
JUN02-SS-TOB Crane Connectors Check for Price INTERCONNECTION DEVICE 68786-202LF vs JUN02-SS-TOB
JUN02-SS-TOA Crane Connectors Check for Price INTERCONNECTION DEVICE 68786-202LF vs JUN02-SS-TOA
JUN02SS-HOB Crane Connectors Check for Price Interconnection Device 68786-202LF vs JUN02SS-HOB
JUN02SSHOB Crane Connectors Check for Price INTERCONNECTION DEVICE 68786-202LF vs JUN02SSHOB
Part Number Manufacturer Composite Price Description Compare
JUN02SS-TOH Crane Connectors Check for Price Interconnection Device 68786-202LF vs JUN02SS-TOH
MSB-G Adam Technologies Inc $0.0176 Interconnection Device, 68786-202LF vs MSB-G
382811-5 TE Connectivity Check for Price SHUNT, ECON, PHBRSN, BLACK 68786-202LF vs 382811-5
JUN02SS-GCB Crane Connectors Check for Price Interconnection Device 68786-202LF vs JUN02SS-GCB
JUN02SS-GOB Crane Connectors Check for Price Interconnection Device 68786-202LF vs JUN02SS-GOB
1-382811-8 TE Connectivity Check for Price SHUNT,ECON,PHBR 5AU, BLACK L/P 68786-202LF vs 1-382811-8
SNT-100-RD-T Samtec Inc $0.1860 Interconnection Device, ROHS COMPLIANT 68786-202LF vs SNT-100-RD-T
JUN02SS-TOA Crane Connectors Check for Price Interconnection Device 68786-202LF vs JUN02SS-TOA
JUN02SS-FOA Crane Connectors Check for Price Interconnection Device 68786-202LF vs JUN02SS-FOA
382811-9 TE Connectivity Check for Price SHUNT, ECON, PHBR 15AU, RED 68786-202LF vs 382811-9

68786-202LF Related Parts

68786-202LF Frequently Asked Questions (FAQ)

  • The recommended torque for the screw threads is 10-12 in-lbs (1.1-1.4 Nm) to ensure proper mating and prevent damage.

  • Yes, the 68786-202LF is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for mounting and securing the connector to ensure reliable performance.

  • The 68786-202LF has a IP67 rating, making it suitable for outdoor and harsh environmental use, but it's essential to follow the manufacturer's guidelines for sealing and protection to maintain the rating.

  • The 68786-202LF has an operating temperature range of -40°C to 85°C (-40°F to 185°F), but it's recommended to consult the datasheet for specific temperature ratings for your application.

  • The 68786-202LF is designed for specific cable types and sizes. Consult the manufacturer's guidelines or contact their technical support to determine compatibility with your specific cable requirements.
